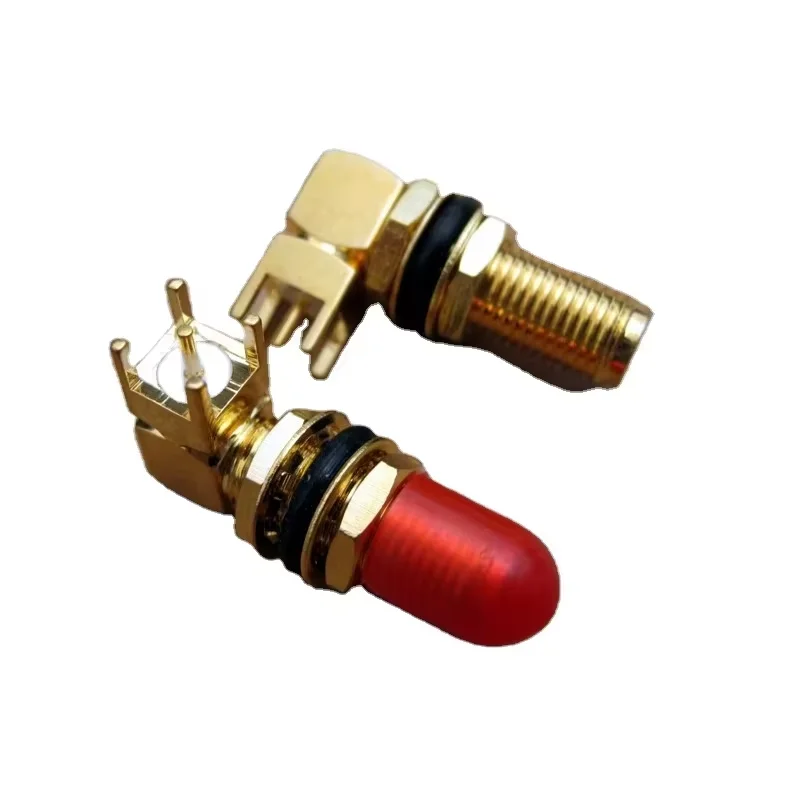

SMA Female Right Angle Bulkhead Long Thread Pcb Mount Connector ,sma Pcb Mount Long Version.
- Overview
- Recommended Products
SMA female right angle bulkhead long thread pcb mount connector ,sma pcb mount long version.
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
SMA female right angle bulkhead long thread pcb mount connector ,sma pcb mount long version.
|
Major Technical Characteristics |
||
|
Impedance |
50Ω |
|
|
Frequency Range |
DC~12.4GHz(Semi-Rigid Cable DC-18GHz) |
|
|
Center conductor retention force |
≥0.28 N |
|
|
Insertion Loss |
≤0.15dB/6GHz |
|
|
Voltage Standing Wave Ratio |
Straight Flexible Cable ≤1.10+0.02f Semi-Rigid Cable≤1.07+0.018f |
|
|
Right angle Flexible Cable ≤1.20+0.03f Semi-Rigid Cable≤1.17+0.02f |
||
|
Durability(mating) |
≥500(cycles) |
|
|
Cable |
PCB |
|
|
Material & Plating |
||
|
Body |
Brass |
Gold plated |
|
Pin contact |
Brass |
Gold plated |
|
Socket contact |
Beryllium-copper Customized) |
Gold plated |
|
Resilient contact |
Beryllium-copper |
Gold plated |
|
Insulator |
PTFE |
|
|
Crimp ferrule |
Copper alloy |
Nickel or gold plated |
|
O-ring sealing |
6146 silicone rubber |
|
sma female right angle pcb mount connector
