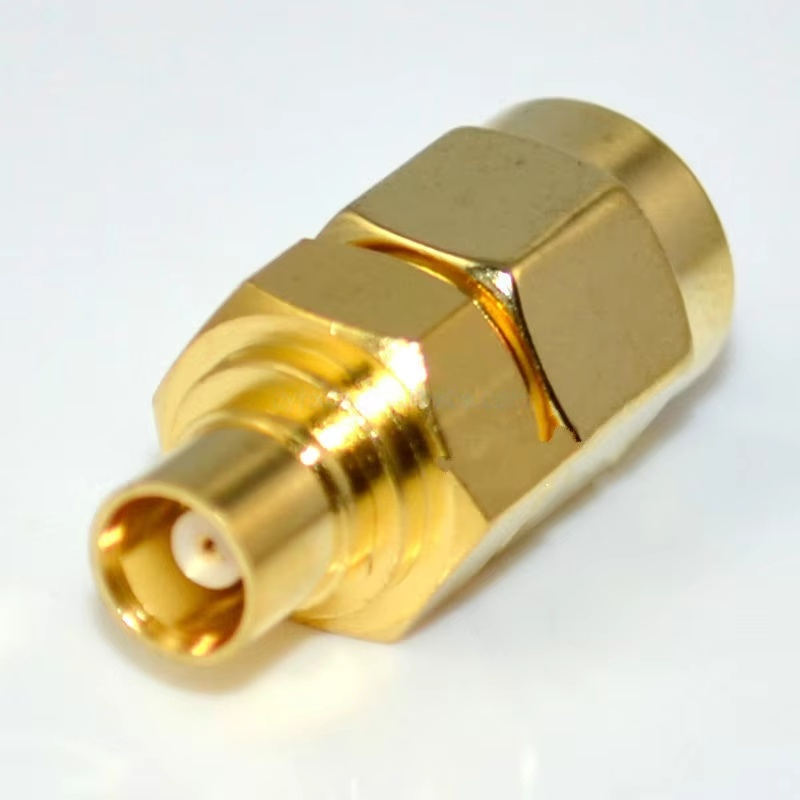

sma male plug to mcx female jack female straight RF Coax adapter connector
sma male plug to mcx female jack female straight RF Coax adapter connector
Key Performance | |||||
Temperature range |
-65~+165 |
Insulation resistance |
≥5000MΩ |
||
Characteristic impedance |
50Ω |
Dielectric Withstanding voltage |
1000V(r ms) |
||
Frequency range |
With flexible cable |
0~12.4GHz |
Contact resistance |
Center conductor |
≤3mΩ |
With semi-rigid/flexible cable |
0~18GHz |
Outer conductor |
≤2mΩ |
||
VSWR |
With flexible cable |
≤1.15+0.02F |
Durability |
500 Cycles |
|
With semi-rigid/flexible cable |
≤1.05+0.02F |
||||
Material And Plating | |||||
Body |
Brass , gold plated or stainless steel passivated |
||||
Male center contacts |
Brass , gold plated |
||||
Female center contacts |
Beryllium copper , gold plated |
||||
Insulators |
PTFE |
||||
Gaskets |
Silicon rubber |
||||
Crimp ferrules |
Copper alloy , gold or nickel plated |
||||
FAQ
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order
Q: Can you guarantee the quality of product?
A: Sure, high quality give us confidence to do business with your company. Long-term cooperation is what we need most instead of short-term cooperation.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you.
Q:How do your company deal with the problem on quality ?
A: We have 20 years experience in this business. High quality and perfect service earn us great reputation. We will have a
detailed analysis of the problem. If our product is unqualified, we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
