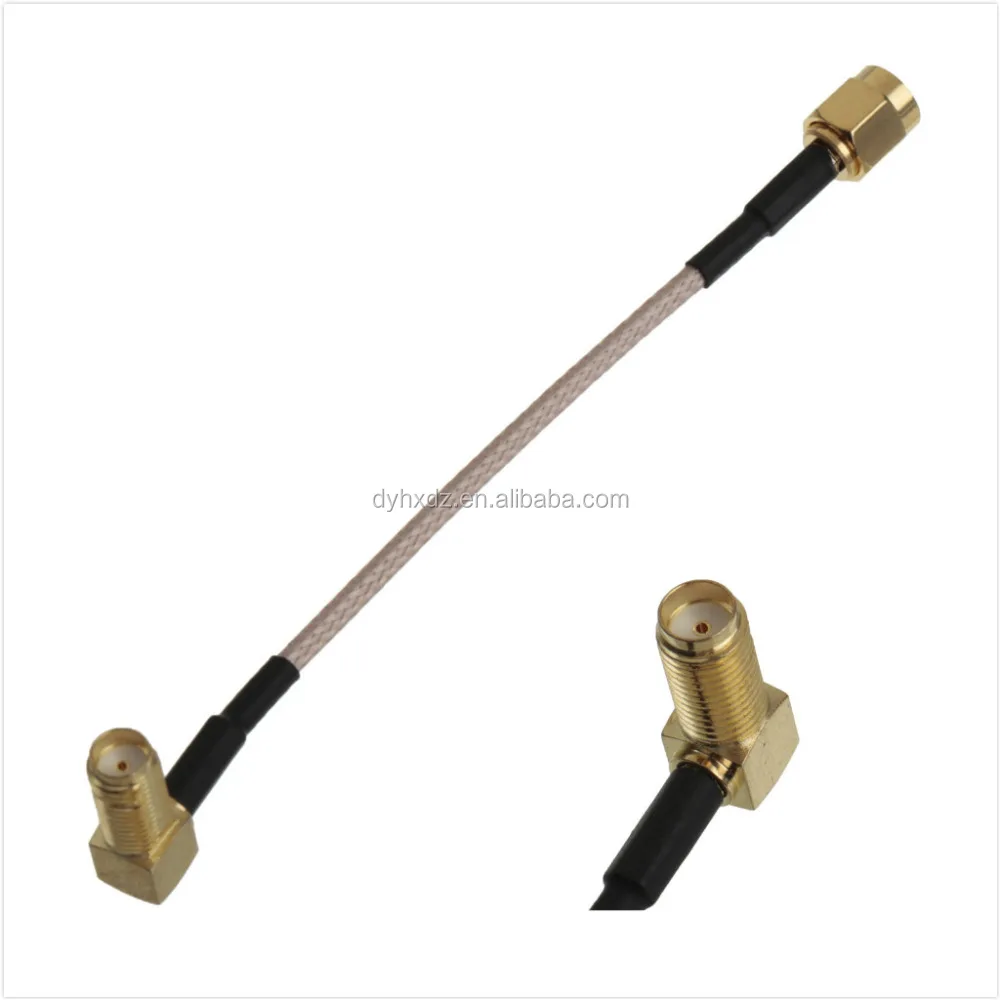

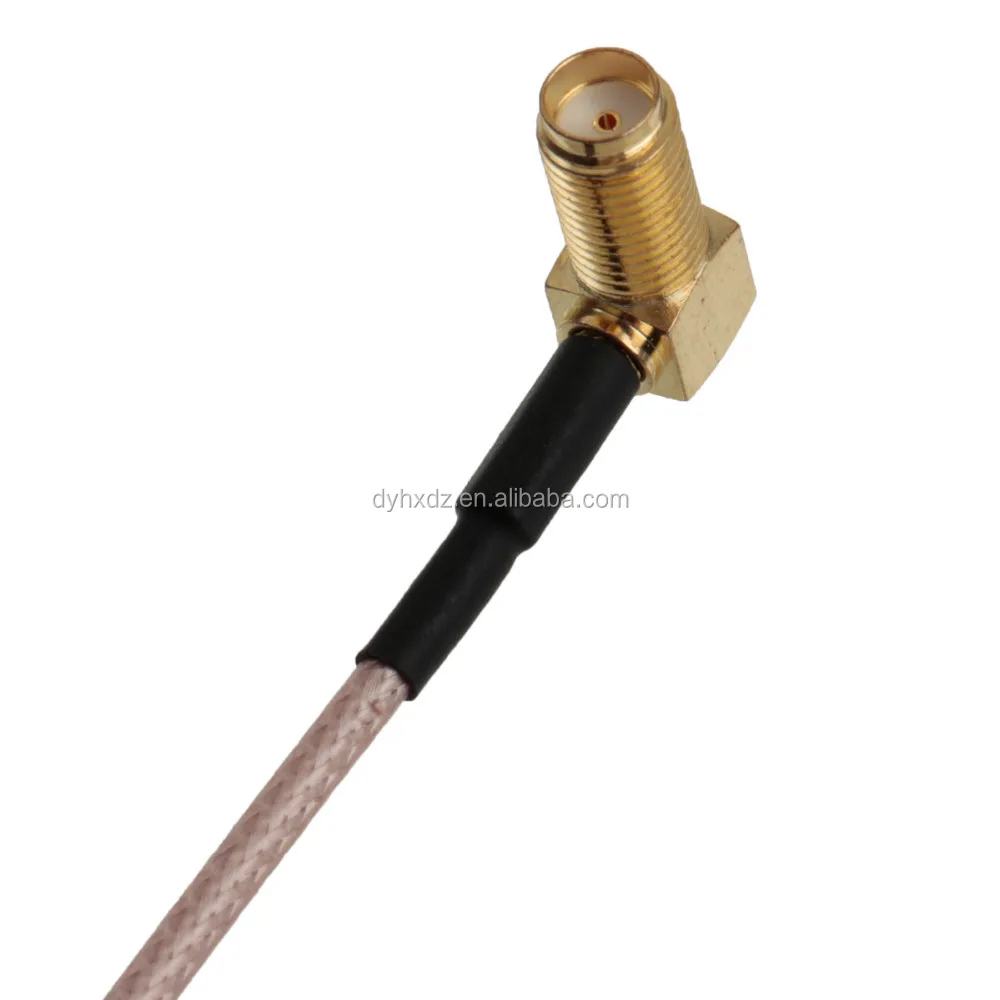

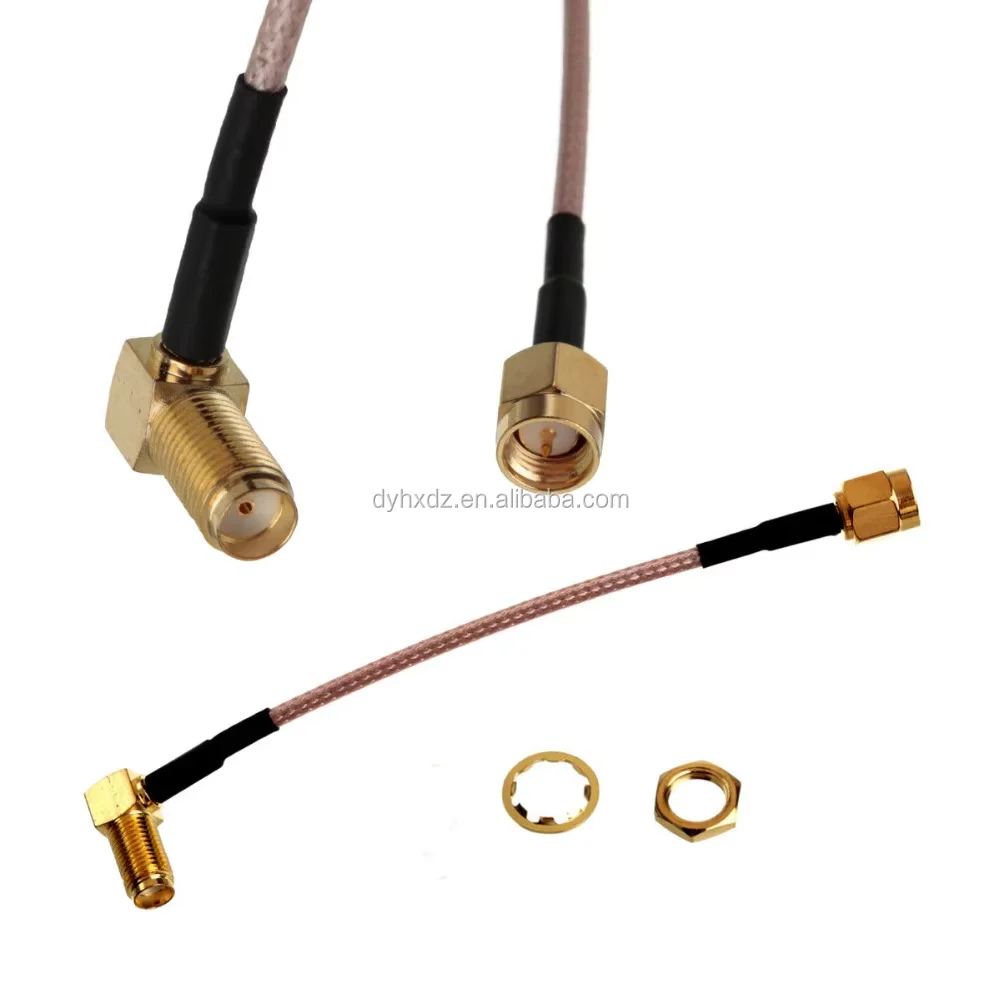

10CM SMA Cable Assembly SMA Male to SMA Female Pigtail Cable RG316 Coaxial Cable with Copper Conductor and PTFE Insulation
Spu:
60395306302
- Overview
- Recommended Products
| Electrical | |
| Impedance | 50 Ohm |
| Frequency Range | |
| .141" & .085" O.D. Copper Jacket Semi-Rigid Cable | 0-18 GHz |
| Flexible Cables | 0-12.4 GHz |
| Voltage Rating | |
| RG-55, 58, 141, 142, 223, 303 | 500 volts peak |
| RG-122, 174, 188, 316 | 375 volts peak |
| Dielectric Withstanding Voltage (max.) | |
| .141" & RG-58 Group | 1000 VRMS |
| .085" & RG-316 Group | 750 VRMS |
| VSWR for Straight Connectors | |
| .141" O.D. Copper Jacket Cable | 1.05 + .005 f (GHz) |
| RG-55 Group | 1.15 + .011 f (GHz) |
| RG-122 Group | 1.15 + .02 f (GHz) |
| RG-178 Group | 1.20 + .025 f (GHz) |
| VSWR for Angle Connectors | |
| .141" O.D. Copper Jacket Cable | 1.10 + .01 f (GHz) |
| RG-55 Group | 1.15 + .02 f (GHz) |
| RG-122 Group | 1.15 + .03 f (GHz) |
| RG-178 Group | 1.20 + .03 f (GHz) |
| Insulation Resistance | 5000 MOHM |
| Contact Resistance | |
| Center Conductor | 2.0 m OHM |
| Body | 2.0 m OHM |
| Braid to Body | 0.5 m OHM |
| RF Leakage | -60 dB min |
| Insertion Loss | .03 sqrt(f(GHz)) dB max |
