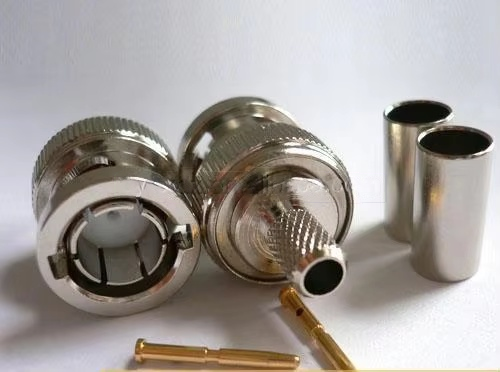

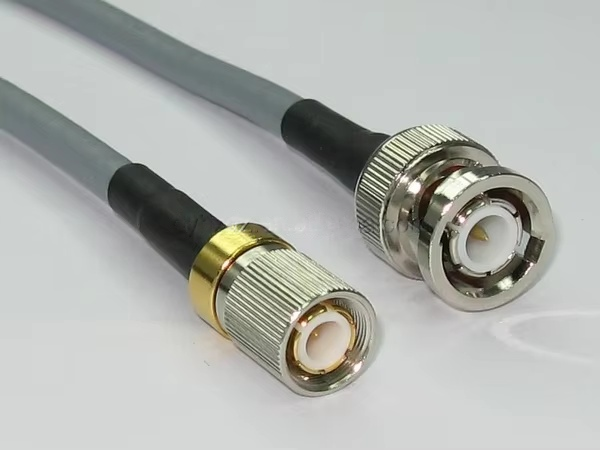

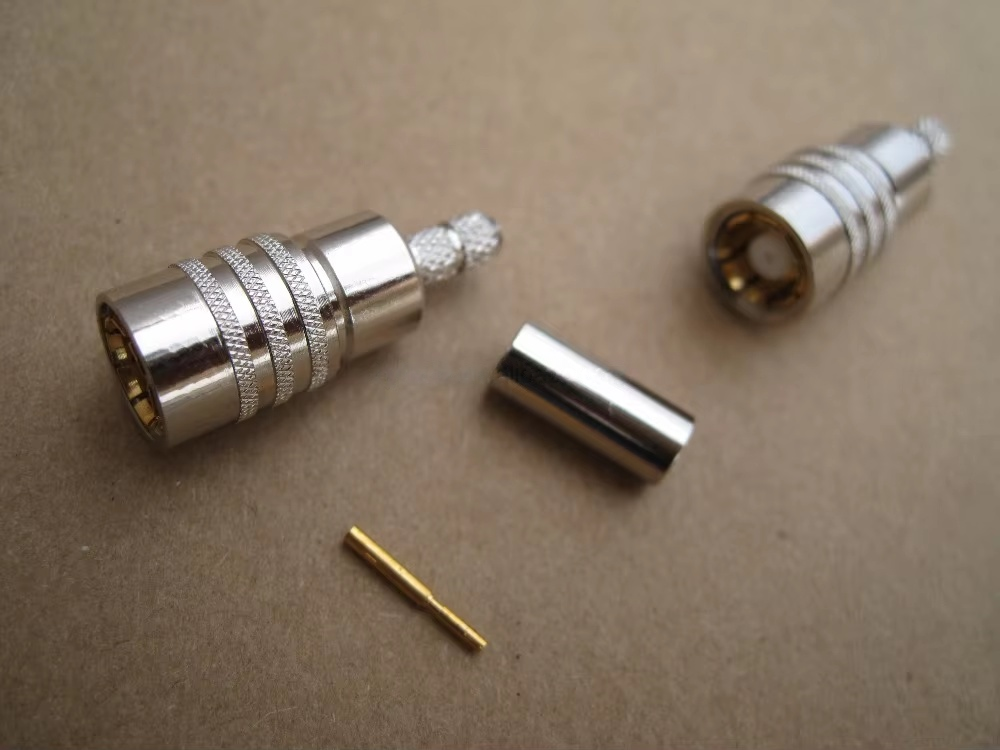

1.6/5.6 BNC 1.0/2.3 BT43 SAA Connector for FLEX3 FLEX5 FLEX2 CABLE
for Description 1.6/5.6 L9

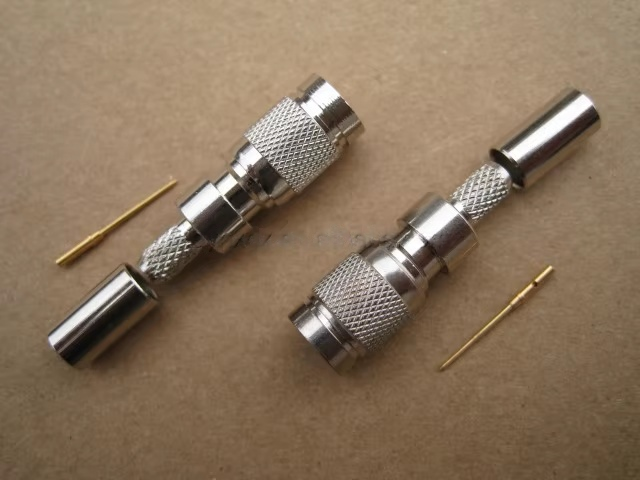

The 1.6/5.6 series is a European design with two coupling versions: Threaded provides positive mating, Push - pull allows quick installation. Amphenol 1.6/5.6 coaxial connectors are miniature 75 Ω units operating from 0-1 GHz.
The compact design of the 1.6/5.6 permits dense connector packing making these connectors ideally suited to applications where space limitation is a factor
This series compiles with DIN 47295, DIN 41626, DIN 47297, NFC 93-569, NFC 93-570, IEC 169-13, and the CECC 22230 standards.
Applications
• |
Base Stations |
• |
Cable Assembly |
• |
Computer/LAN |
• |
Routers |
• |
Switching Equipment |
• |
Telecom |
• |
Wireless |
||||
1.6/5.6 Specifications
Electrical | |
Impedance |
75 Ω |
Frequency range |
0-1 GHz |
Voltage rating |
330 volt peak |
Other |
Contact resistance: |
Mechanical | |
Mating |
M9 x 0.5 threaded coupling |
Cable affixment |
Crimp or solder |
Captivated contacts |
All crimps |
Material | |
Contacts |
Male: Brass |
Other metal parts |
Brass, nickel plated |
Insulators |
Teflon |
Crimp ferrule |
Copper |
Environmental | |
Temperature Range |
- 40°C to +155°C |
Connector Durability |
500 matings |
Note: These characteristics are typical but may not apply to all connectors.
