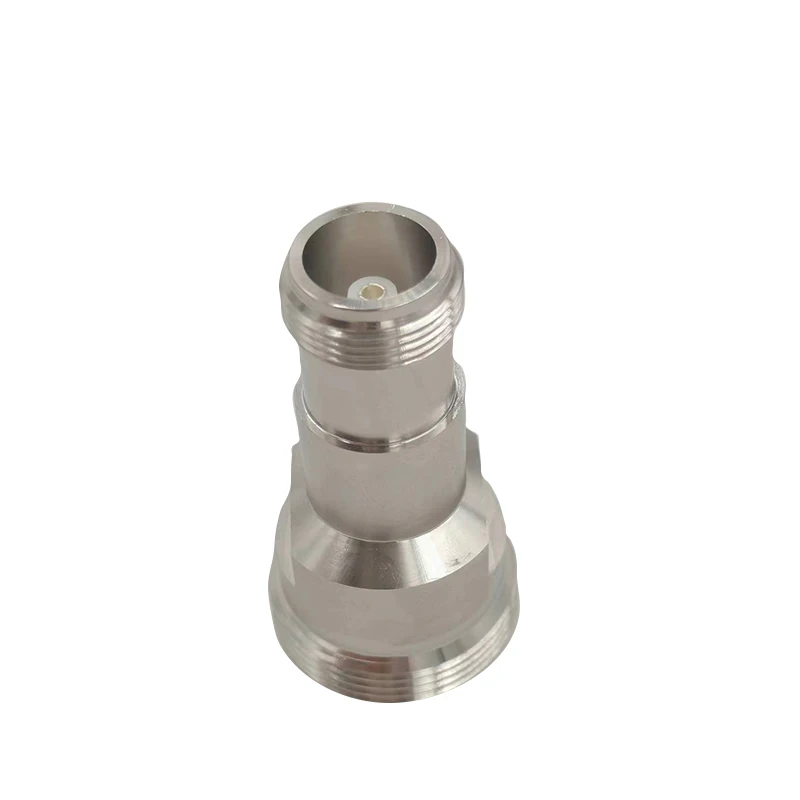

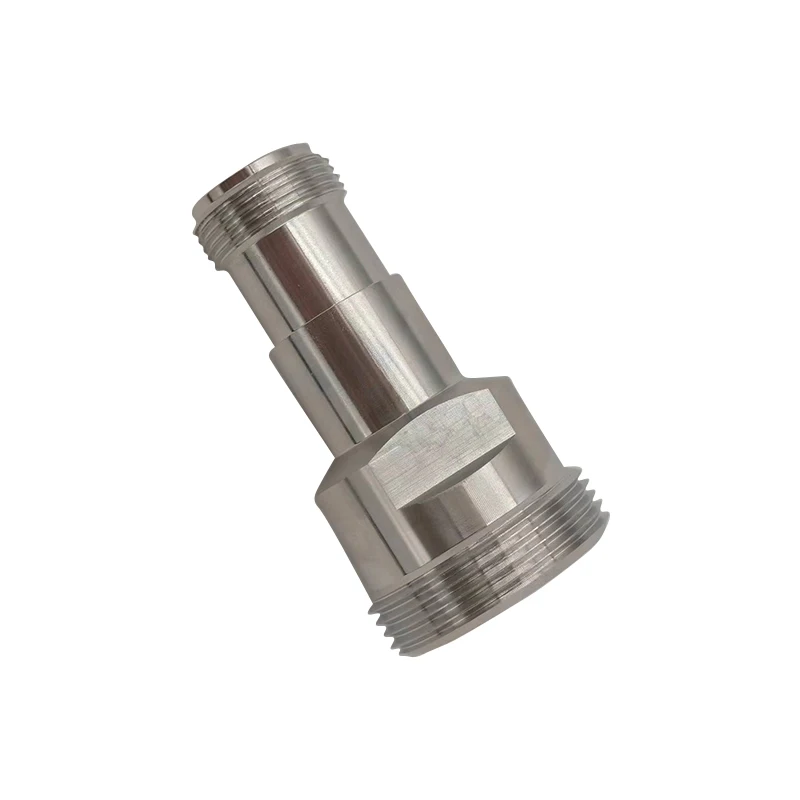

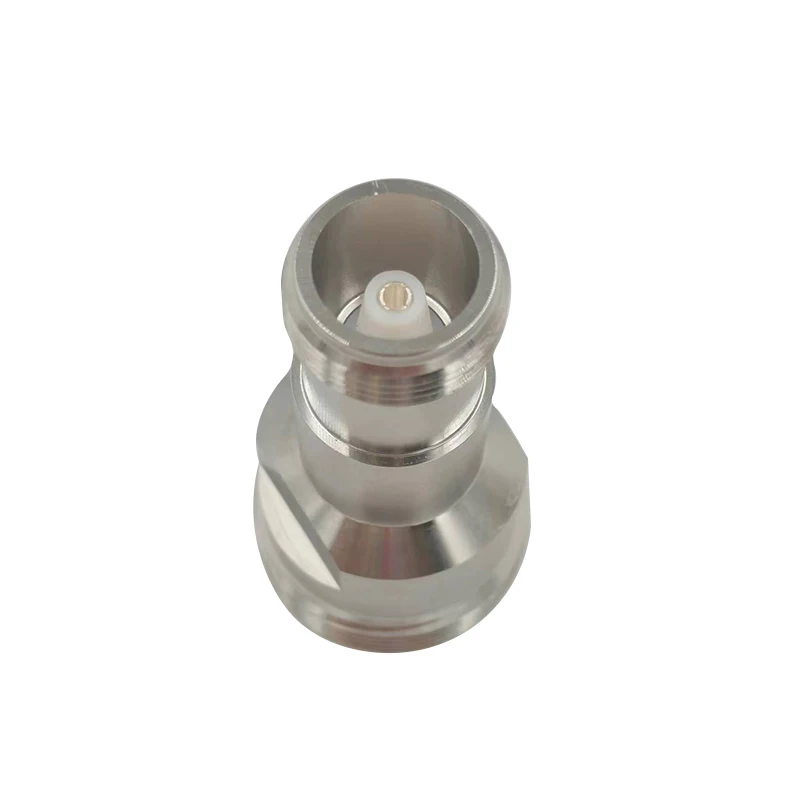

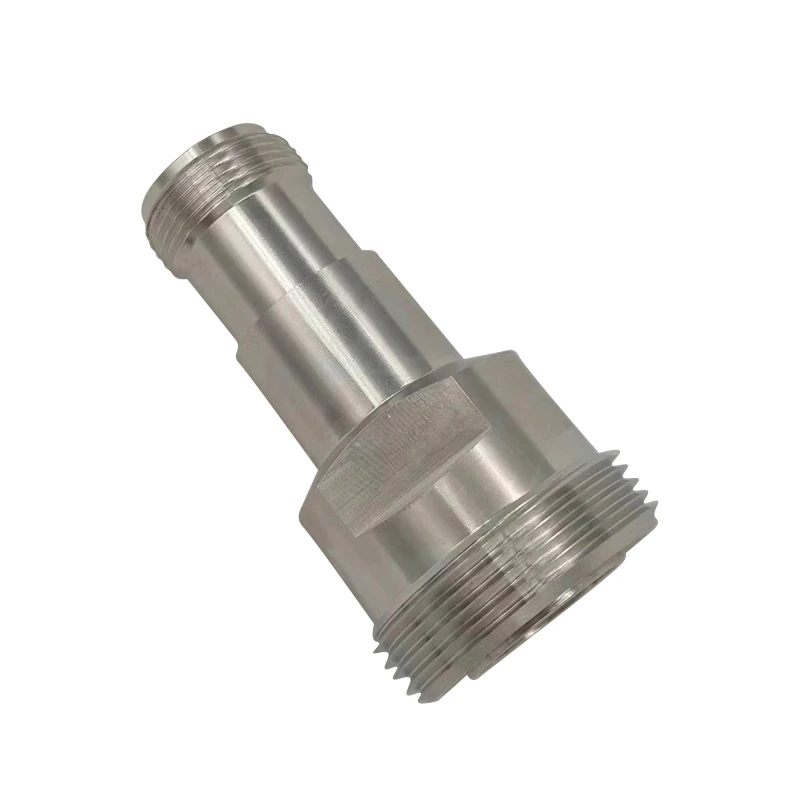

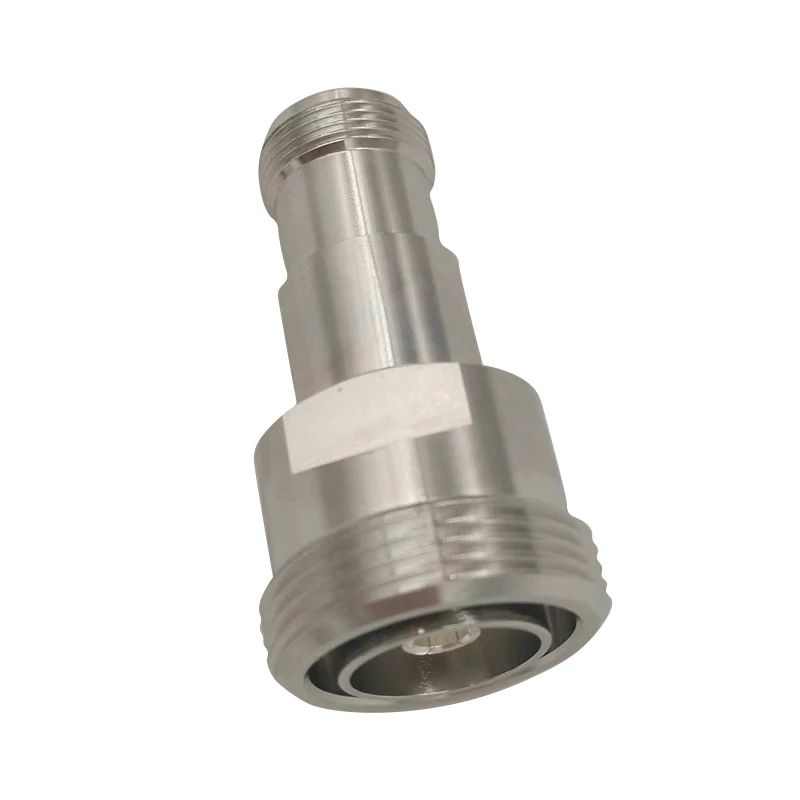

7/16 Female to SC Female RF Adapter (Model 7/16-SC-50KK): High-Stability 50Ω Connector for DC-6GHz Signal Transmission

Overview
FAQ
Recommended Products

7 16 Female to SC Female Adapter 7 16-SC-50KK

Wide Temperature Resilience
Operates reliably in extreme conditions (-55~+155°C; PE cable: -40~+85°C), fitting harsh industrial/aerospace environments.
Low-Loss Signal Performance
Features ≤0.15dB insert loss (at 6GHz) and ≤1.15 VSWR (DC-3000MHz) to maintain signal integrity.
Superior Electrical Specifications
Boasts ≥1000V dielectric withstand voltage, ≥5000MΩ insulation resistance, and low contact resistance (center: ≤2.5mΩ; outer: ≤3mΩ) for safe, stable connectivity.
Long-Lasting Durability
Supports ≥500 mating cycles and ≥60N interface retention force, ensuring consistent performance in frequent-use setups.
Standard 50Ω Impedance
Compatible with mainstream RF systems, ideal for seamless signal transfer across DC-6GHz range.

Temperature Range	-55~+155°C (PE Cable -40~+85°C)
Impedance	50Ω
Frequency Range	DC-6GHz
VSWR	≤ 1.15DC-3000MHz
Insert Loss	≤ 0.15dB (6GHz)
Dielectric Withstanding Voltage	≥1000V RMS,50Hz,at sea level
Working Voltage	≤ 480V
Insulation Resistance	≥ 5000 MΩ
Durability	≥ 500(cycles)
Contact resistance:	CenterContact ≤2.5mΩ
Contact resistance:	Outer Contact ≤ 3mΩ
Interface retention force:	≥60N

Telecommunication Base Stations
Connect 7/16-type antennas/feeders to SC-interface equipment in cellular or network infrastructure.
RF Test & Measurement Labs
Link signal analyzers, generators, or network testers to ensure accurate, low-distortion signal transfer.
Aerospace & Defense Systems
Support signal transmission in rugged, temperature-fluctuating gear (e.g., airborne radar, ground communication terminals).
Broadcasting & Satellite Links
Integrate into TV broadcasting transmitters or satellite ground stations for stable signal connectivity.
