90 degree sma connector male female plug jack
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock

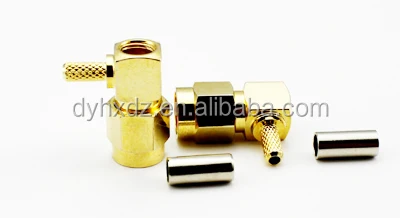

90 degree sma connector male female plug jack
|
Temperature Range |
-55~+155°C (PE Cable -40~+85°C) |
|
|
Impedance |
50Ω |
|
|
Vibration |
98m/S2 (10~2000Hz), 10g |
|
|
Frequency Range |
DC-12.4GHz(semi-rigid cable DC-18 GHz) |
|
|
Insertion Loss |
<= 0.15dB/6GHz |
|
|
Withstanding Voltage |
1000V r.m.s at sea level |
|
|
Working Voltage |
335Vr.m.s at sea level |
|
|
Insulation Resistance |
>= 5000 MΩ |
|
|
Durability |
>= 500(cycles) |
|
|
Contact resistance: |
CenterContact <= 3mΩ |
|
|
Outer Contact <= 2.5mΩ |
||
|
Voltage Standing Wave Ratio: |
Straight |
flex cable <= 1.10+0.02f |
|
Semi-rigid cable <= 1.07+0.018f |
||
|
Right angle |
flex cable <= 1.20+0.03f |
|
|
Semi-rigid cable <= 1.17+0.02f |
||
