BNC Compression Connector RG6 Cctv Coax Cable Adapter Coaxial Male
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock

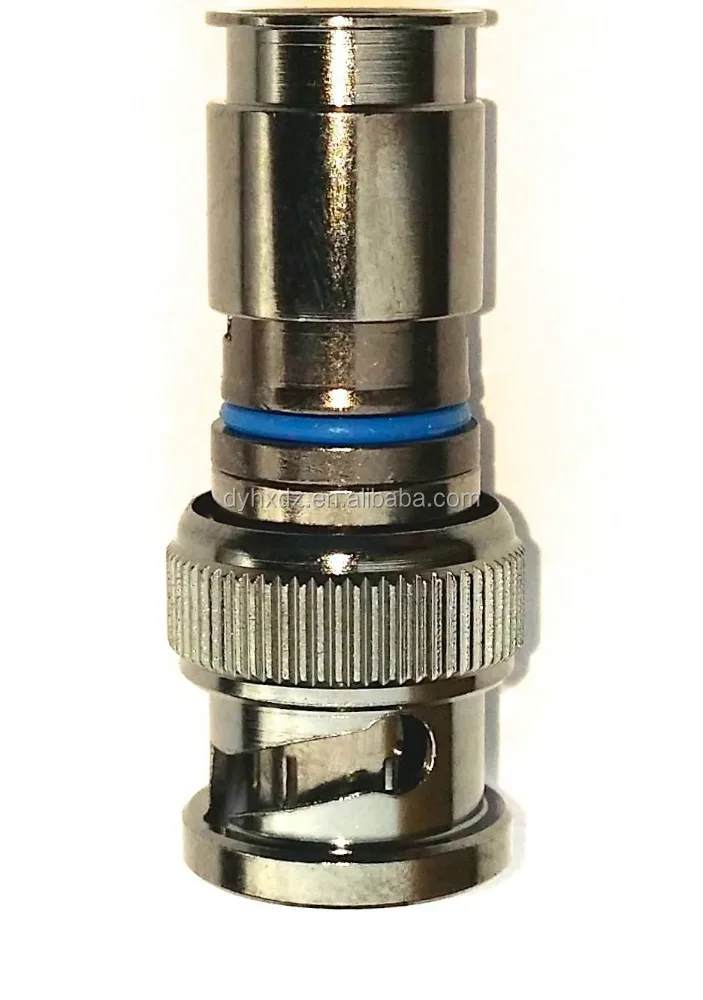

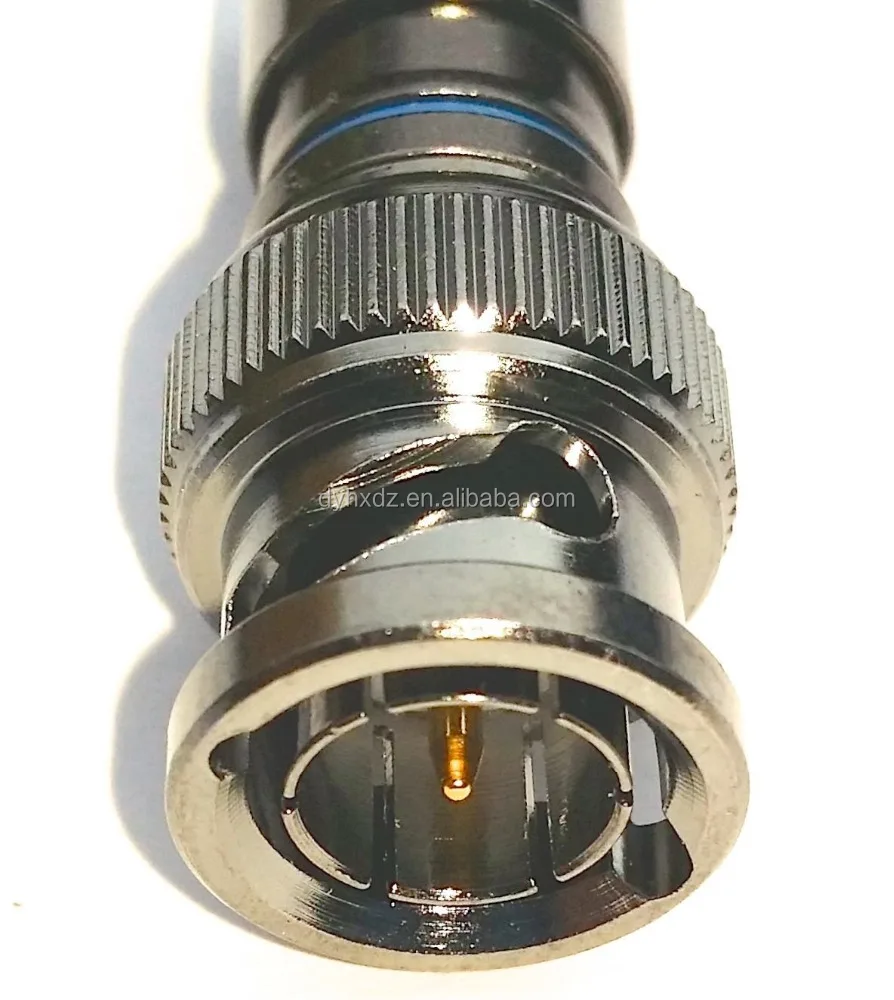

BNC Compression Connector RG6 Cctv Coax Cable Adapter Coaxial Male
|
Key Performance |
||||
|
Temperature range |
-65~+165 |
Insulation resistance |
≥5000MΩ |
|
|
Characteristic impedance |
50Ω/75Ω |
Dielectric Withstanding Voltage |
1500V(r ms) |
|
|
Frequency range |
0~4GHz(50Ω) 0~2GHz(75Ω) |
VSWR |
≤1.30 |
|
|
Voltage rating |
500V(r ms) |
Disengage force |
≥0.6N |
|
|
Contact resistance |
Center conductor |
≤1.5mΩ |
Durability |
500Cycles |
|
Outer conductor |
≤1mΩ |
|||
|
Material And Plating |
||||
|
Body |
Brass , nickel plated |
|||
|
Male center contacts |
Brass , gold plated |
|||
|
Female center contacts |
Beryllium copper or phosphor bronze , gold plated |
|||
|
Insulators |
PTFE |
|||
