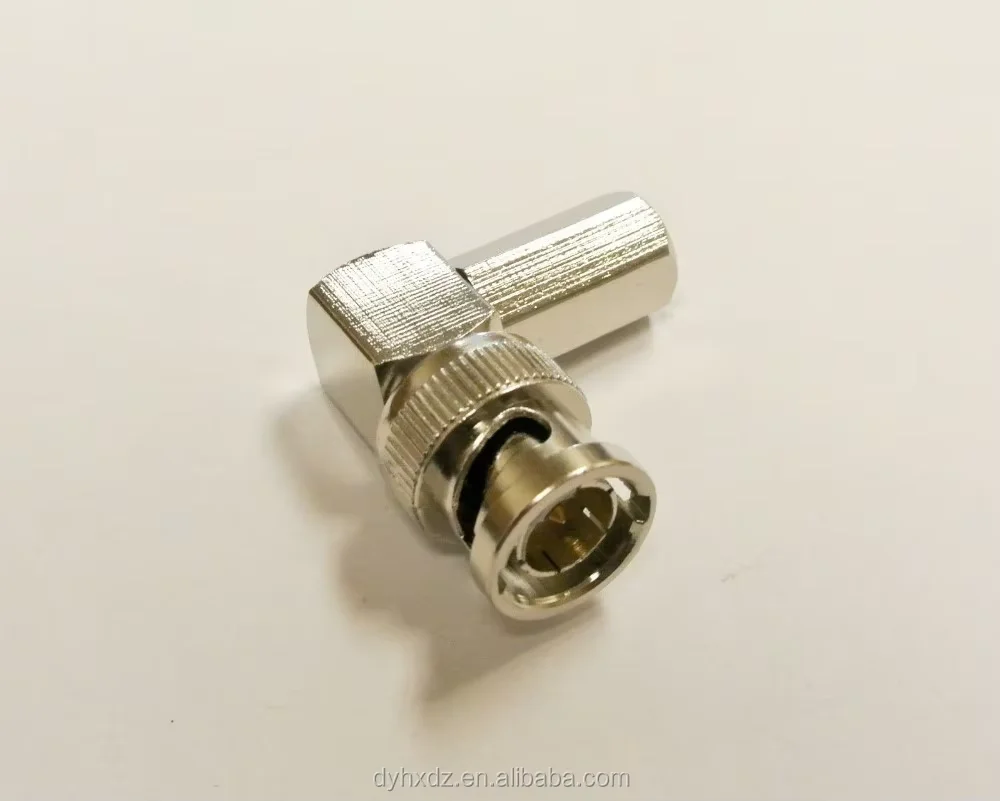

BNC Right Angle 90 Degree Twist-On Connector for CCTV Security Compatible with RG59 RG62 Coax Cable RF Application
- Overview
- Recommended Products
BNC Twist-On Right Angle 90 degree Connector for RG59 RG62 coax cable CCTV Security
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
BNC Twist-On Right Angle 90 degree Connector for RG59 RG62 coax cable CCTV Security
|
Impedance |
50Ω,75Ω |
Frequency range |
0-2GHz |
|
Resistance |
Inner conductor≤2.0mΩ |
External resistance |
≤0.2mΩ |
|
Insulation Resistance |
≥5000MΩ |
Withstand Voltage |
1500V rms |
|
Durability |
500 times |
Center Pin |
Gold-plated pure Copper |
|
Insulator |
PTEE |
Frequency response |
DC to 8 MHz |
|
Attenuation |
0.5dB typ |
Environmental |
-10°C to +70°C |
|
Storage |
-30°C to +70°C |
Humidity |
0 to 95% |
|
Wire Type |
Coaxial cable |
Category Type |
Coaxial connector |
|
DC Loop Resistance |
52 ohms per 1,000 ft |
Material |
Zinc Alloy, Brass, PTEE |
|
Withstand Voltage |
1500V rms |
Center Contact |
≤ 1.5 ohm |
