DIN7 16 Male to N Female Adapter RF Connector High Performance Product Type Connectors
Spu:
1601199143986
- Overview
- Recommended Products

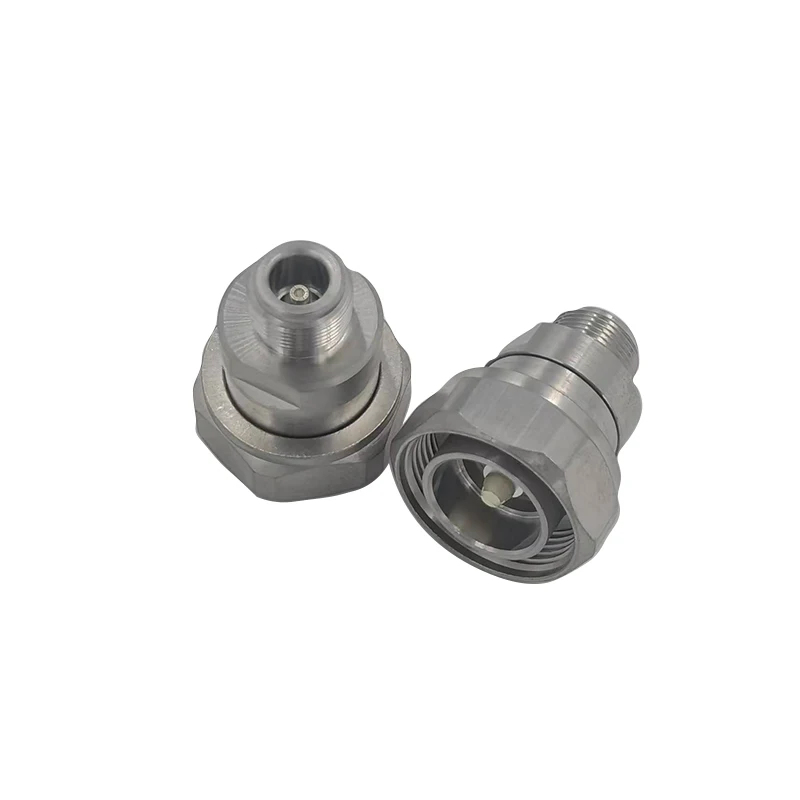

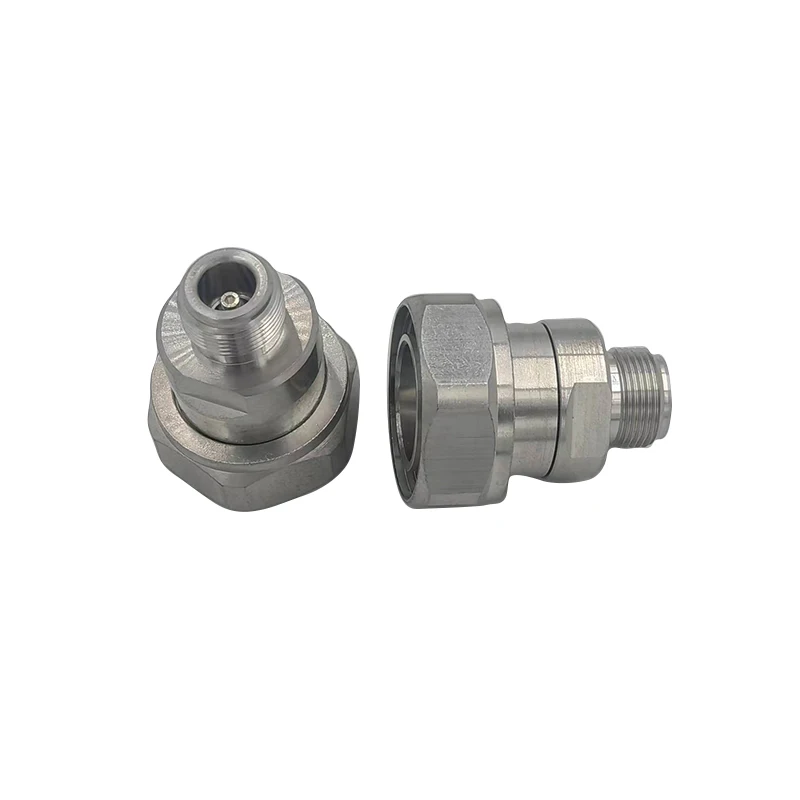

DIN7 16 Male to N Female Adapter RF Connector High Performance Product Type Connectors
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
DIN7 16 Male to N Female Adapter RF Connector High Performance Product Type Connectors
Electrical
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-6GHz |
| VSWR | 1.15 |
| Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level |
| Dielectric Resistance | ≥10000MΩ |
| Contact Resistance | Outer Contact≤1.0mΩ ;Center Contact≤0.4mΩ |
Mechanical
| Durability | Mating cycles ≥500 |
Material and plating
|
Description |
Material | Plating |
| Body | Brass | Tri-alloy |
| Insulator | PTFE | – |
| Center conductor | Phosphor bronze | Ag |
Environmental
| Temperature Range | -40℃~+85℃ |
