Factory Price RF Coaxial Bnc Male Crimp Connector for Rg58

Spu:
62495635700
  • Overview
  • Recommended Products

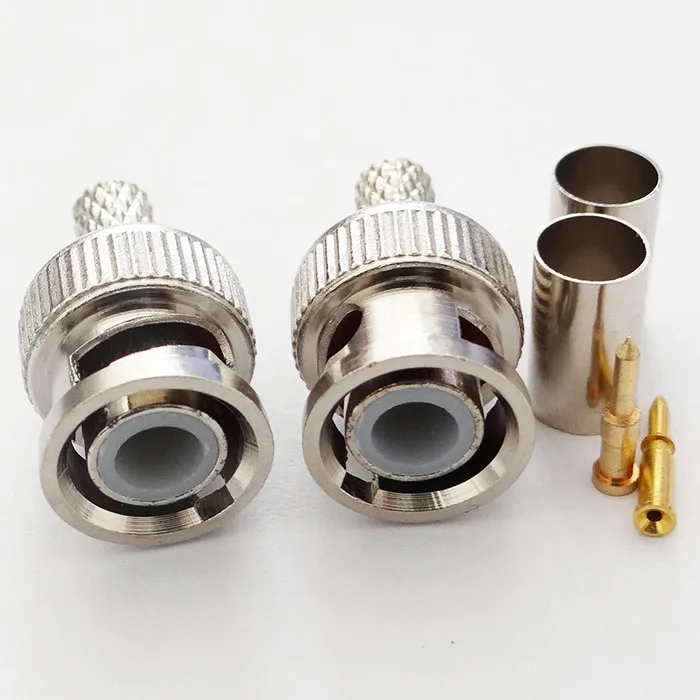

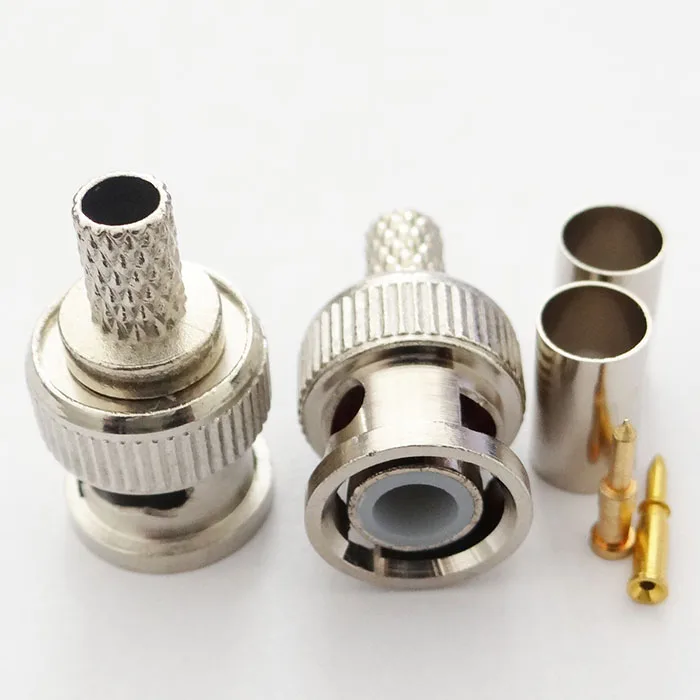

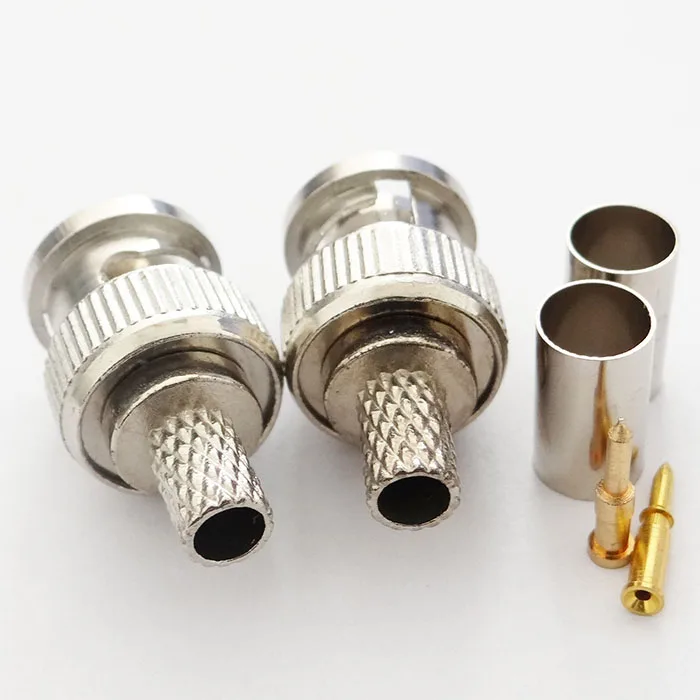

Factory price RF coaxial bnc male crimp connector for rg58 lmr195

BNC Connector Technical Datasheet






Electrical Characteristics
Impedance
50 ohm or 75 ohm
Frequency Range
0-4 GHz
VSWR
(Voltage Standing Wave Ratio)
Straight type ≤ 1.22/3GHz,
R/A type ≤ 1.30/3GHz
Dielectric Withstanding Voltage
1500 V rms
Working Voltage
500 V rms
Center Contact Resistance
≤ 1.5 mΩ (Milliohms max.)
Outer Contact Resistance
≤ 2.0 mΩ (Milliohms max.)
Insultation Resistance
≥5 × 10³ mΩ (Milliohms min.)


Mechanical Characteristics
Coupling
Bayonet
Contact Retention
6 lbs min
Mating Durability
≥500 cycles



Environmental Characteristics
Temperature Range
Teflon -55℃~+155℃ / POM -40℃~+60℃
Coupling Nut Retention
100 lbs. min
Vibration
MIL-STD-202 Meth. 204
Corrosion Resistance
MIL-STD-202 Meth. 101




Please contact us immediaterly if you are interested!








Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Mobile/Whatsapp
Message
0/1000

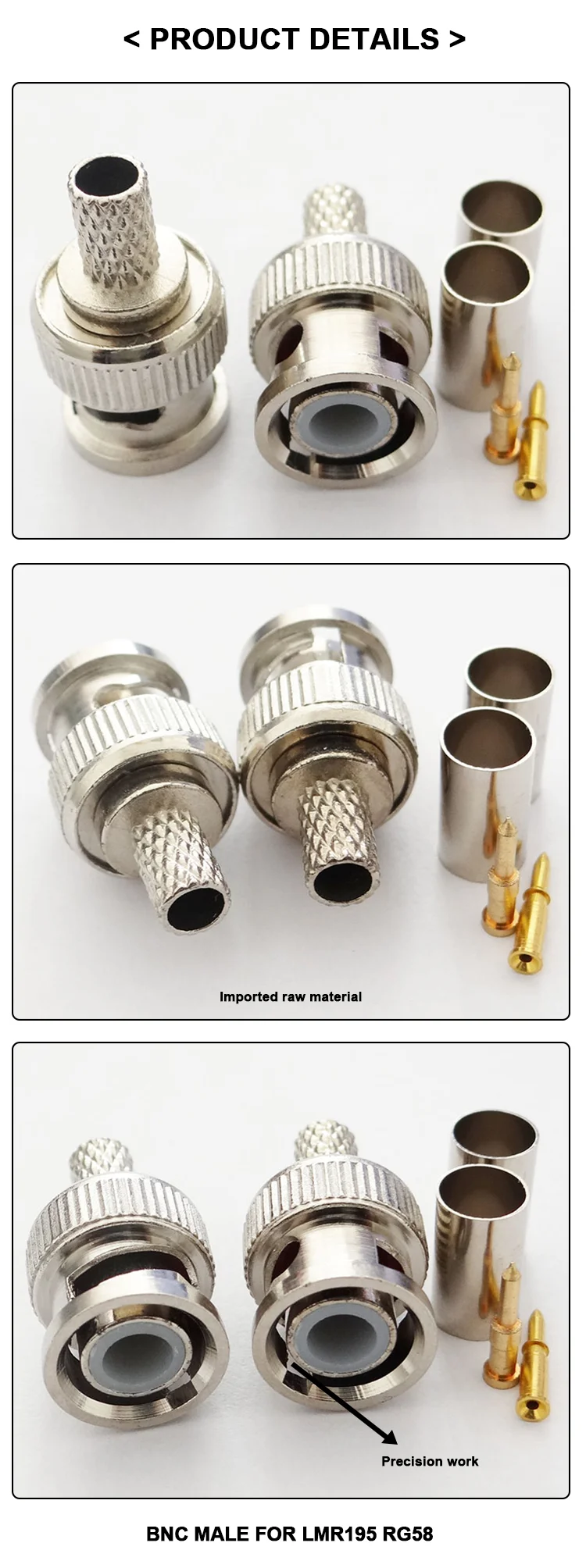

product factory price rf coaxial bnc male crimp connector for rg58-1
