- Dual Impedance & Wideband Support Dual 50Ω/75Ω impedance options; DC-4GHz (50Ω) / DC-2GHz (75Ω) frequency range, compatible with diverse RF signal transmission needs.
- Low-Loss & High-Fidelity Transmission Insertion loss as low as 0.30dB at 1.5GHz; VSWR ≤1.35 (straight type @3GHz) / ≤1.45 (right angle @1GHz), minimizing signal reflection and attenuation.
- Ultra-Low Contact Resistance Center contact ≤6mΩ, outer contact ≤1mΩ, ensuring stable conductivity and reliable signal integrity.
- Rugged & Durable Build ≥500 mating cycles; withstands 98m/s² (10g) vibration (10–2000Hz); secure engagement/disengagement force (8–63N) for long-term use.
- Wide Temperature & High-Voltage Tolerance -55~+155°C operating range (PE cable: -40~+85°C); 1000V withstand voltage / 335V working voltage; ≥1000MΩ insulation resistance, suitable for harsh industrial environments.

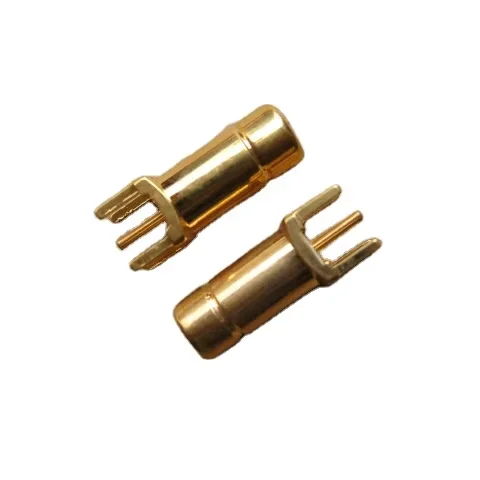

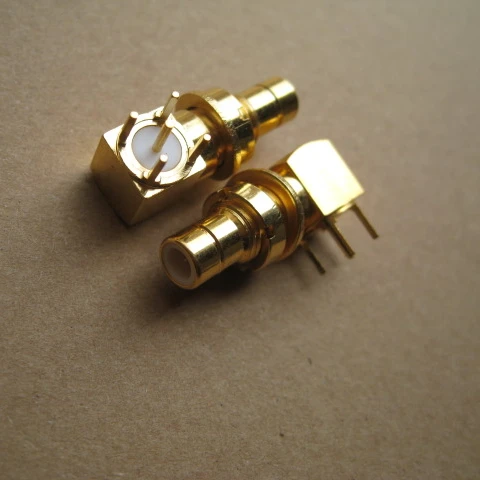

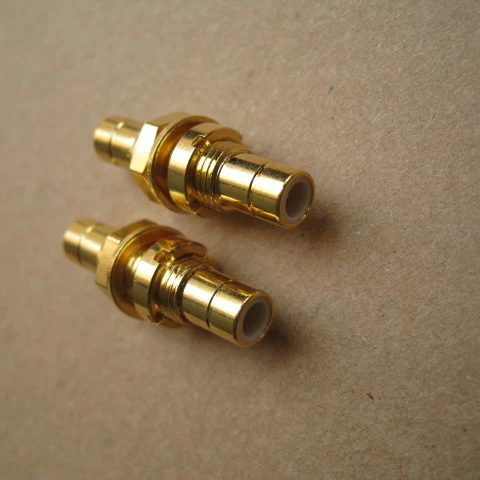

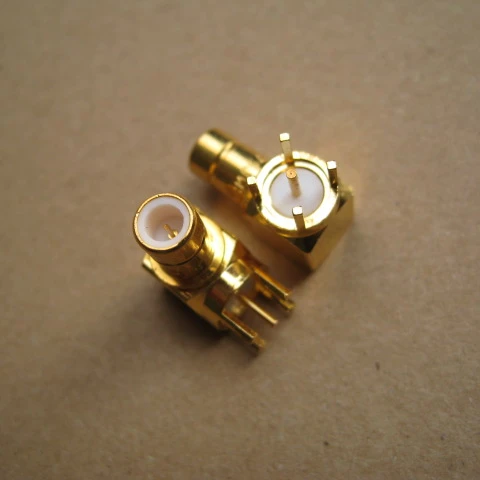

High Performance SMB Male 75OHMS RF Connector for PCB Premium Connectors Product
Specifications:
1. All materials are RoHS approved
2.Competitive price and high quality
3.We are able to supply various types of connector according to clients’ requirement
High Performance SMB Male 75OHMS RF Connector for PCB Premium Connectors Product
Temperature Range |
-55~+155°C (PE Cable -40~+85°C) |
|
Impedance |
50Ω, 75Ω |
|
Vibration |
98m/S2 (10~2000Hz), 10g |
|
Frequency Range |
DC-4GHz(50Ω), DC-2GHz(75Ω) |
|
Insertion Loss |
0.30dB/1.5GHz |
|
Withstanding Voltage |
1000V r.m.s at sea level |
|
Working Voltage |
335Vr.m.s at sea level |
|
Insulation Resistance |
≥ 1000 MΩ |
|
Durability |
≥ 500(cycles) |
|
Engagement force: |
8~63N |
|
Disengagement force: |
8~63N |
|
Contact resistance: |
Center Contact ≤6mΩ |
|
Outer Contact ≤1mΩ | ||
Voltage Standing Wave Ratio: |
Straight |
≤ 1.35/3GHz |
Right angle |
≤ 1.45/1GHz |
|
