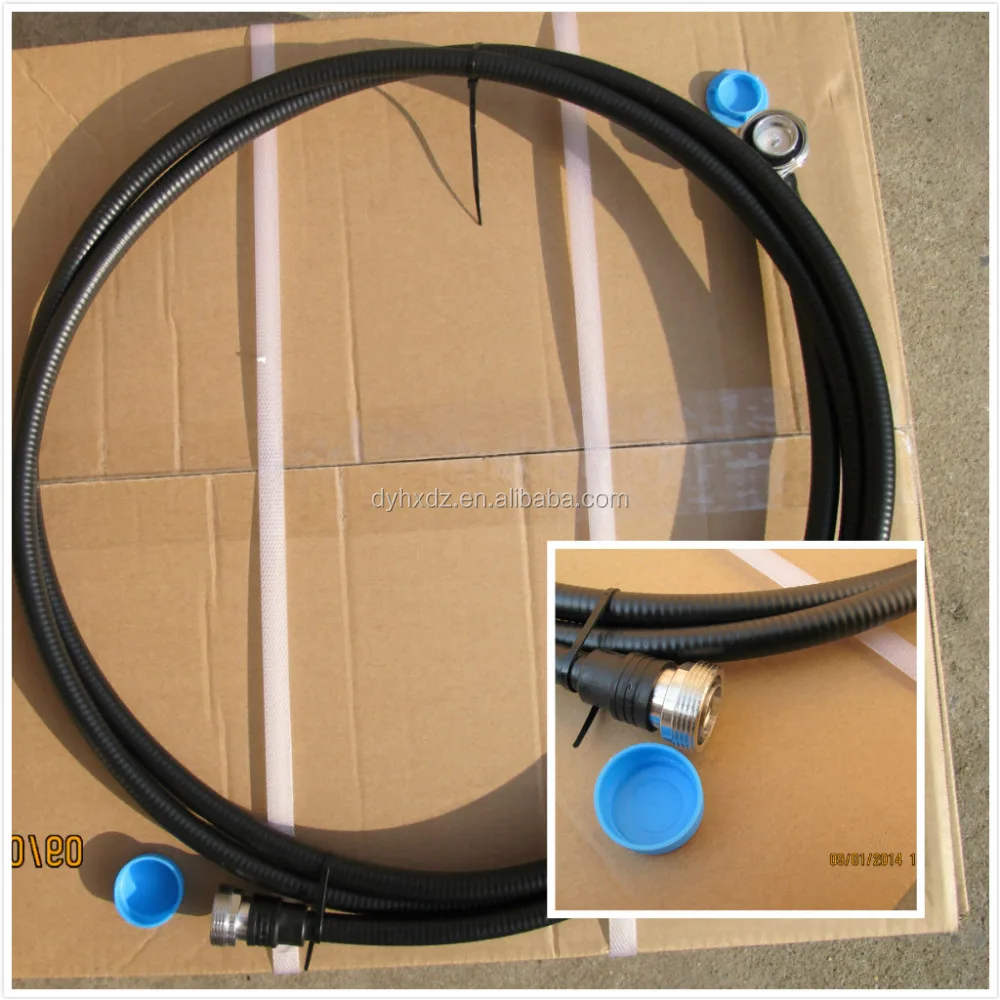

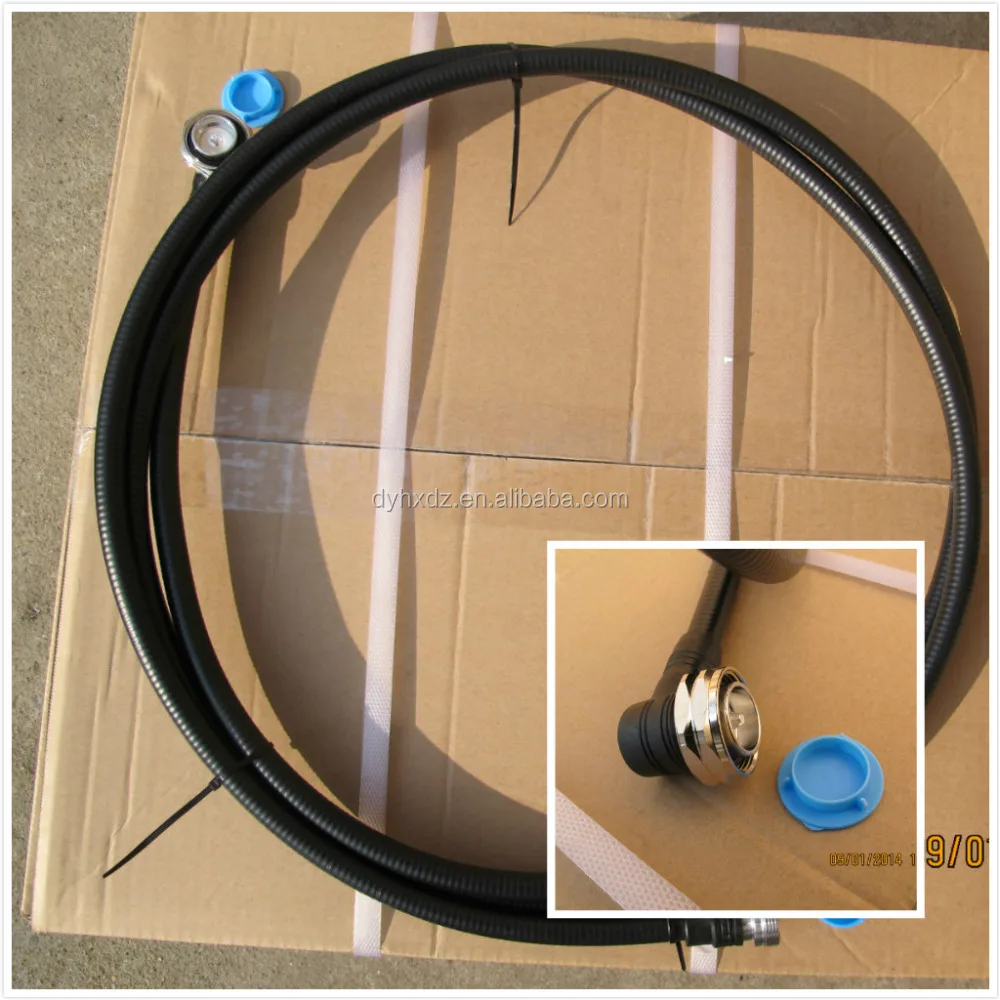

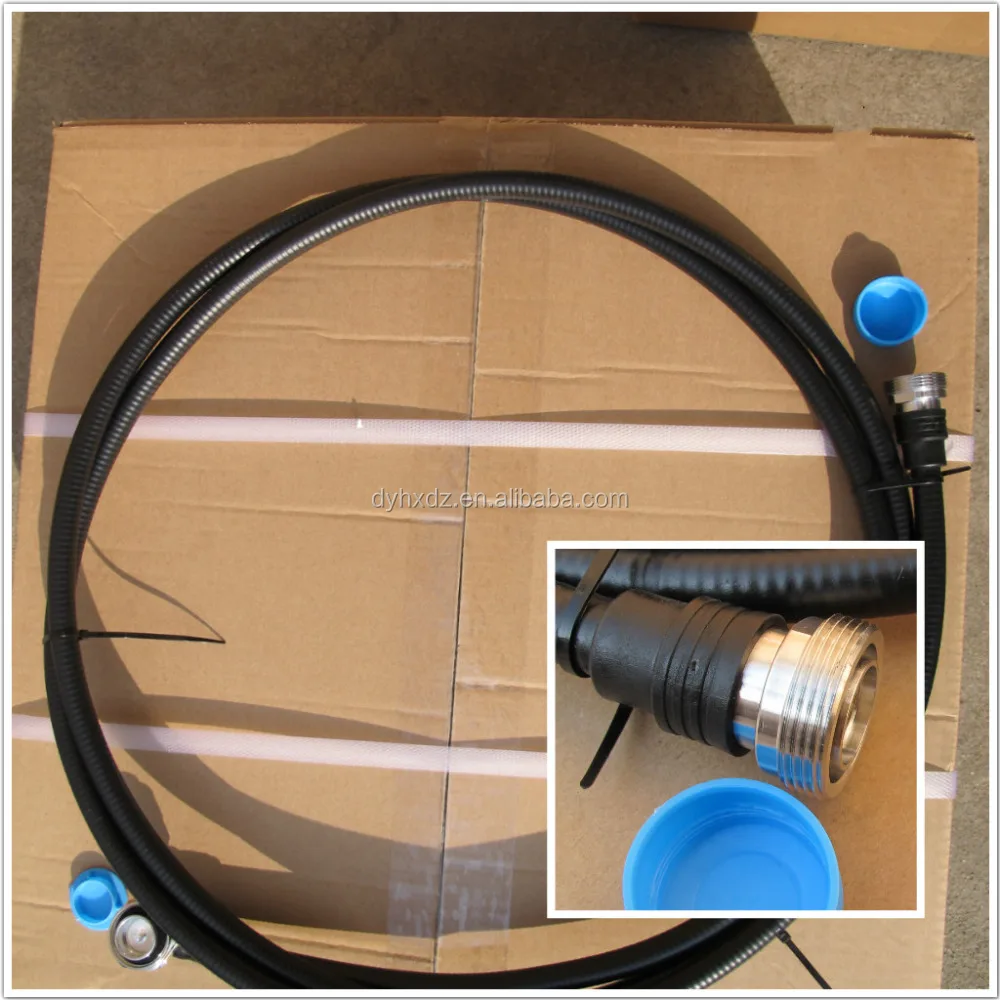

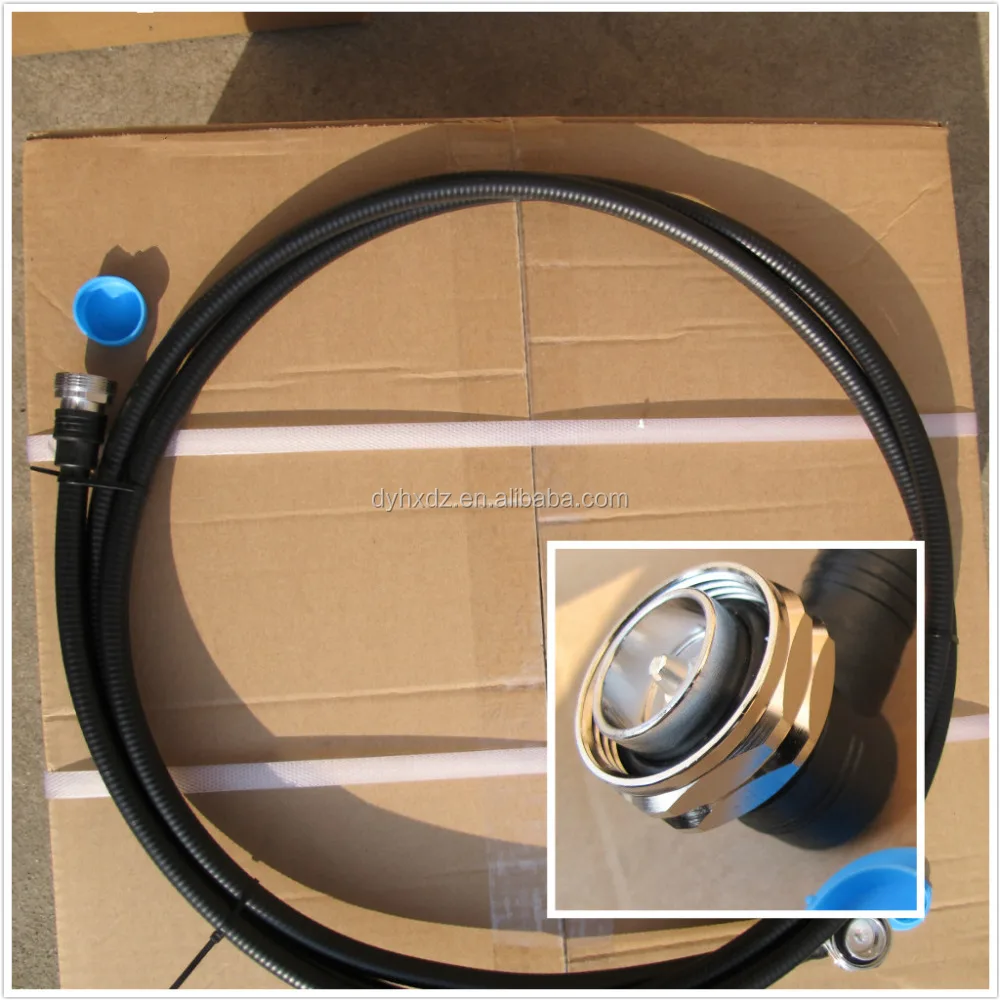

LOW PIM RF din 7/16 jumper cable 1/2 superflex cable with din male right angle to 7/16 female cable assembly
Spu:
60346718964
- Overview
- Recommended Products
2M 3M 5M RF jumper cable 1/2 superflex cable with din male right angle to din female rf cable assembly
Jumper cable 3m angle DIN M to 7/16 F
Jumper cable 5m angle DIN M to 7/16 F
Jumper cable 3m ST DIN M to 7/16 F
Jumper cable 2m ST DIN M to 7/16 F
Jumper cable 3m angle DIN M to 7/16 DIN M
jumper cable
Electrical
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-3.8GHz |
| VSWR | 1.15 |
| Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level |
| Dielectric Resistance | ≥5000MΩ |
| Contact Resistance | Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ |
| PIM (@2-tonex20w) | ≤-165dBC |
Mechanical
| Durability | Mating cycles ≥500 |
Material and plating
|
Description |
Material | Plating |
| Body | Brass | Tri-alloy |
| Insulator | PTFE | – |
| Center conductor | Brass | Ag |
| Other | Brass | Ni |
Environmental
| Temperature Range | -40℃~+85℃ |
| Watertightness | IP67 |
| Rosh-compliance | Full ROHS compliance |
| Salt-fog test | 96h |
Product Description

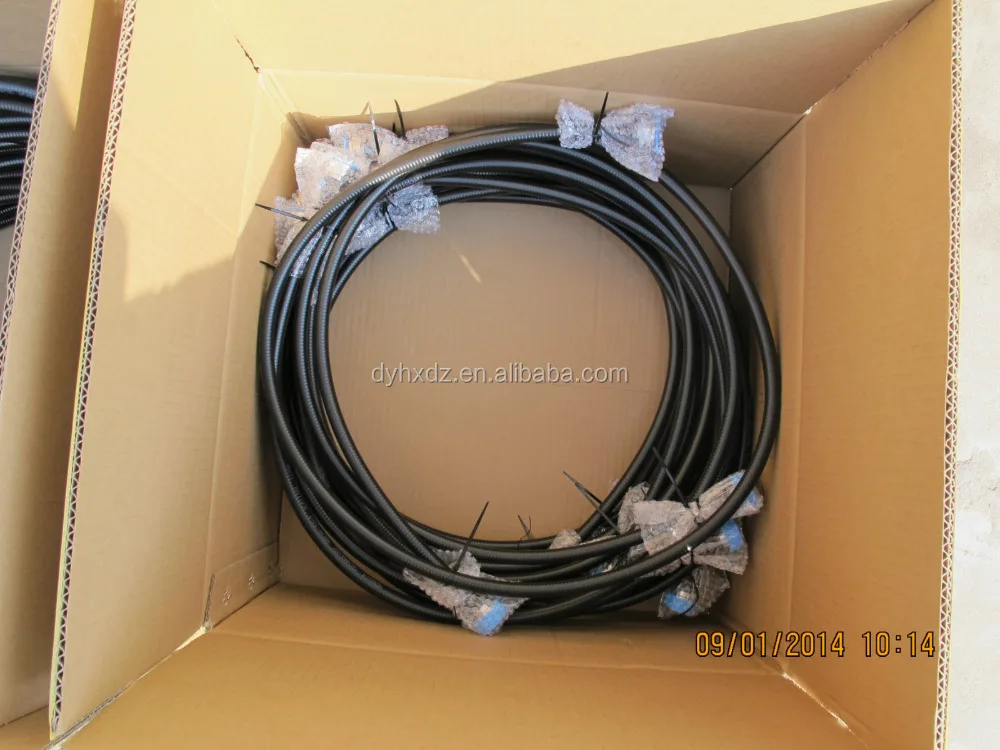

Packaging & Shipping
