HUAXING for Advanced wireless systems such as DAS (Distributed Antenna Systems) require RF components that, in addition to being highly efficient in signal transfer, must have low PIM (Passive Intermodulation) properties. The N type interface design is over 50 year old and has been replaced in many wireless site applications with the larger 7-16 DIN interface for better electrical and PIM performance. The 4.1-9.5 (Mini) DIN is essentially a compact version of the 7/16 DIN with similar electrical performance.
RF Industries provides within series
4.1-9.5 adapters and between series adapters for the 4.1-9.5 (Mini) DIN, 7/16 DIN and N type interfaces. All adapters are manufactured with brass bodies in durable non-tarnish tri-metal (white bronze) plating with a PIM rating of less than or equal to -165dBc.
4.1-9.5 DIN male to N female,
4.1-9.5 DIN male to N male,
4.1-9.5 DIN female to N female,
4.1-9.5 DIN female to N male,
4.1-9.5 DIN male to 7-16 DIN female,
4.1-9.5 DIN male to 7-16 DIN male,
4.1-9.5 DIN female to 7-16 DIN female,
4.1-9.5 DIN female to 7-16 DIN male,
4.1-9.5 DIN male to 4.1-9.5 female,
4.1-9.5 DIN female to 4.1-9.5 male, right angle

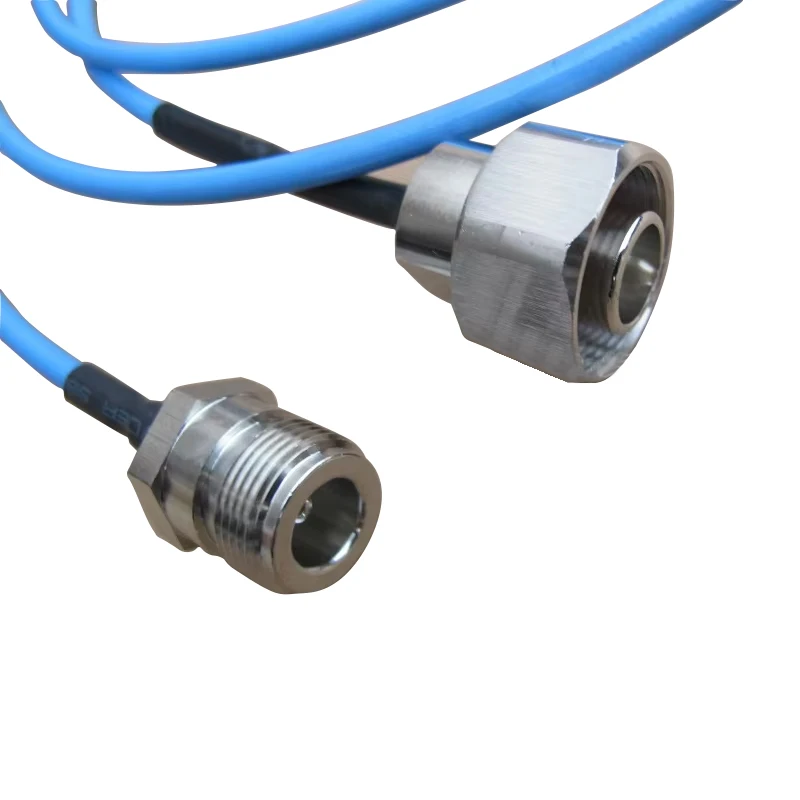

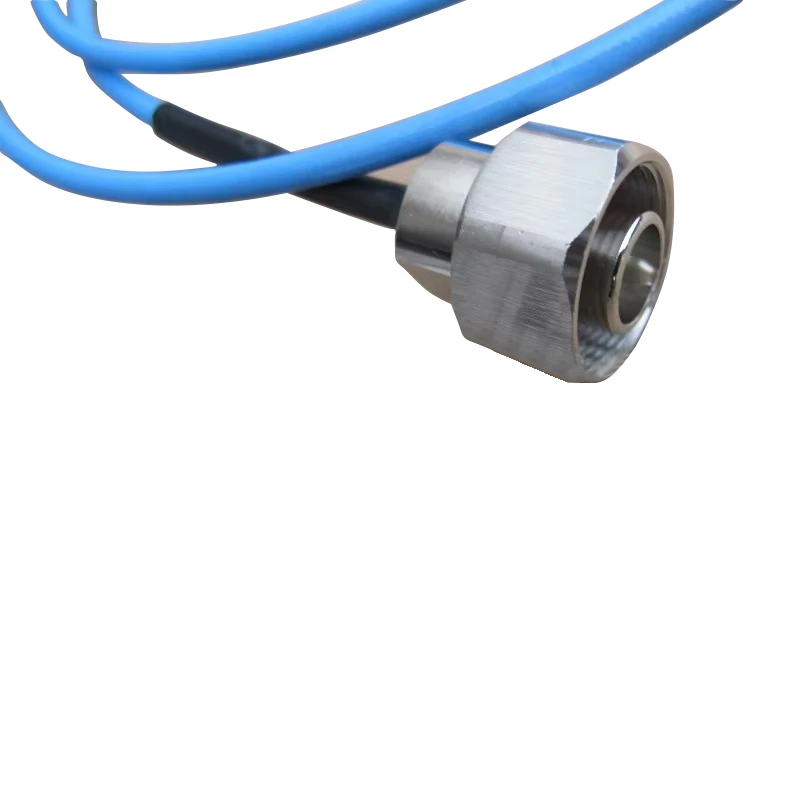

| 4.1-9.5 cable assembly |
| 4.1-9.5 cable assemblies |
| 4.1/9.5 pigtail cable |
