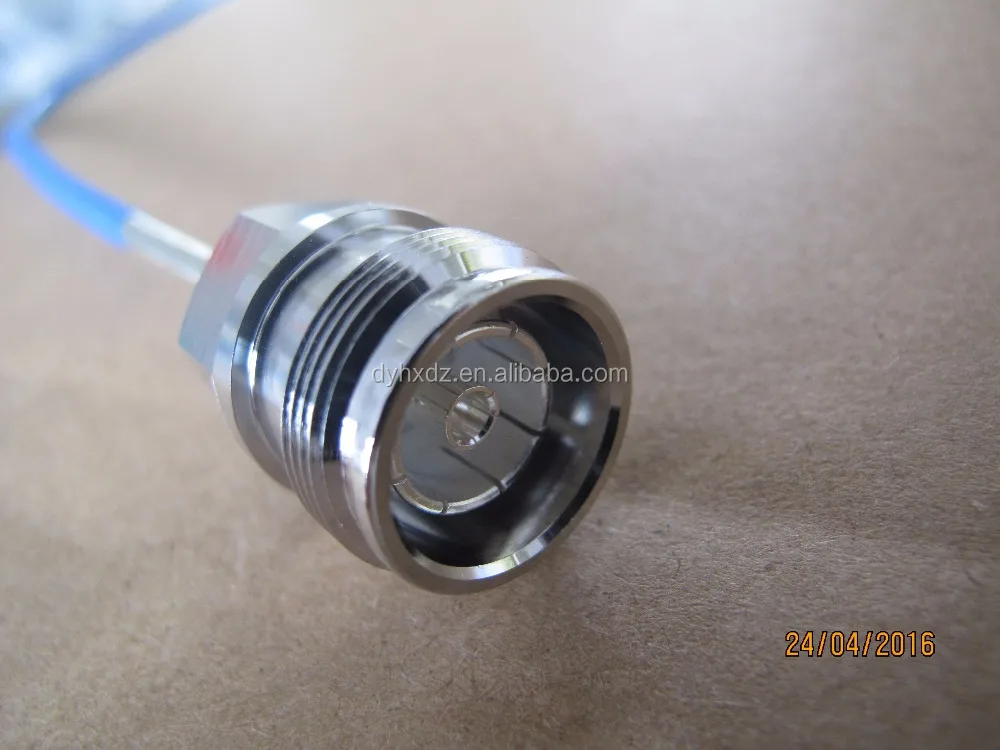

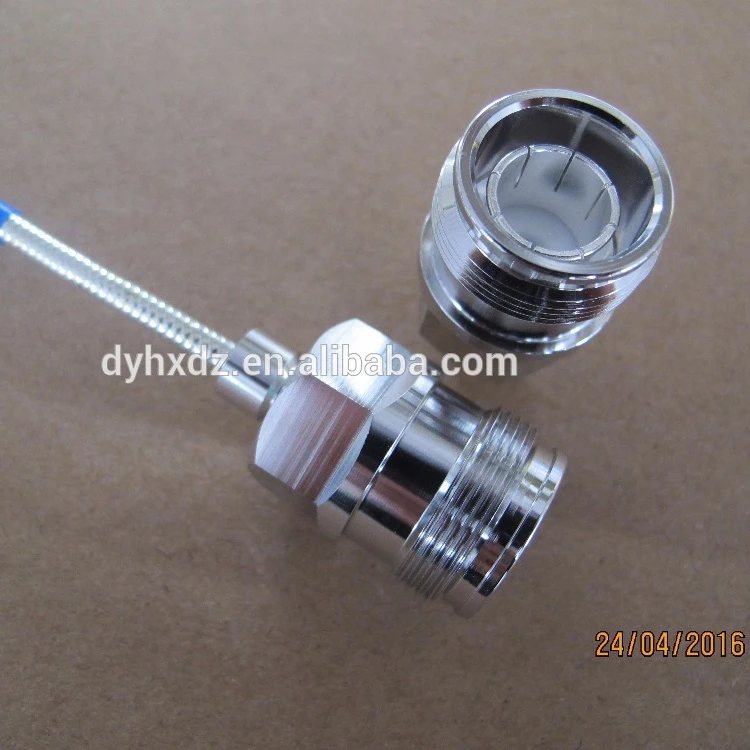

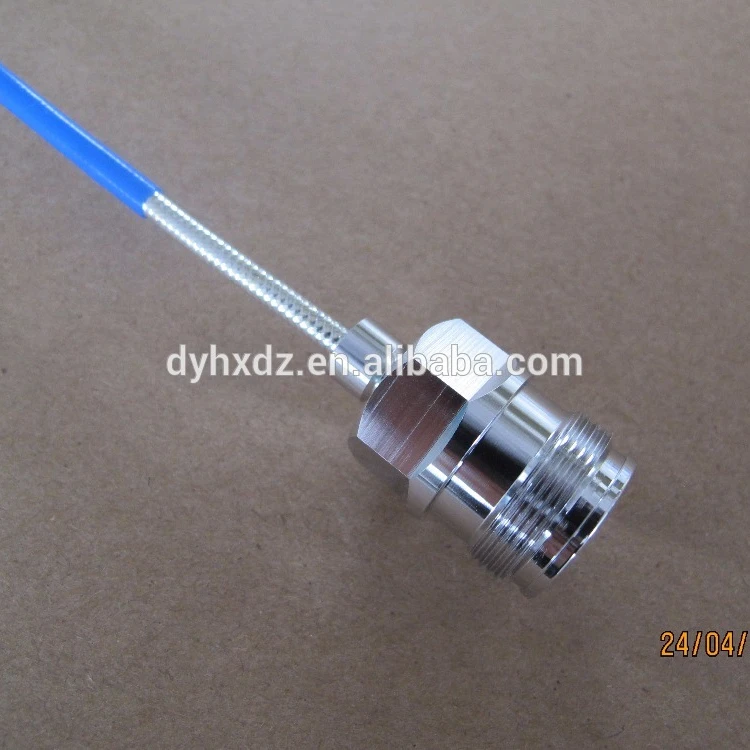

4.3-10 Female Jack solder type connector for RG402 .141
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
4.3-10 male plug solder type connector for 1/2 superflex cable
Electrical
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-6GHz |
| VSWR | 1.15 |
| Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level |
| Dielectric Resistance | ≥5000MΩ |
| Contact Resistance | Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ |
| PIM (@2-tonex20w) | ≤-165dBC |
Mechanical
| Durability | Mating cycles ≥500 |
Material and plating
|
Description |
Material | Plating |
| Body | Brass | Tri-alloy |
| Insulator | PTFE | – |
| Center conductor | Brass | Ag |
| Other | Brass | Ni |
Environmental
| Temperature Range | -40℃~+85℃ |
| Watertightness | IP67 |
| Rosh-compliance | Full ROHS compliance |
| Salt-fog test | 96h |
