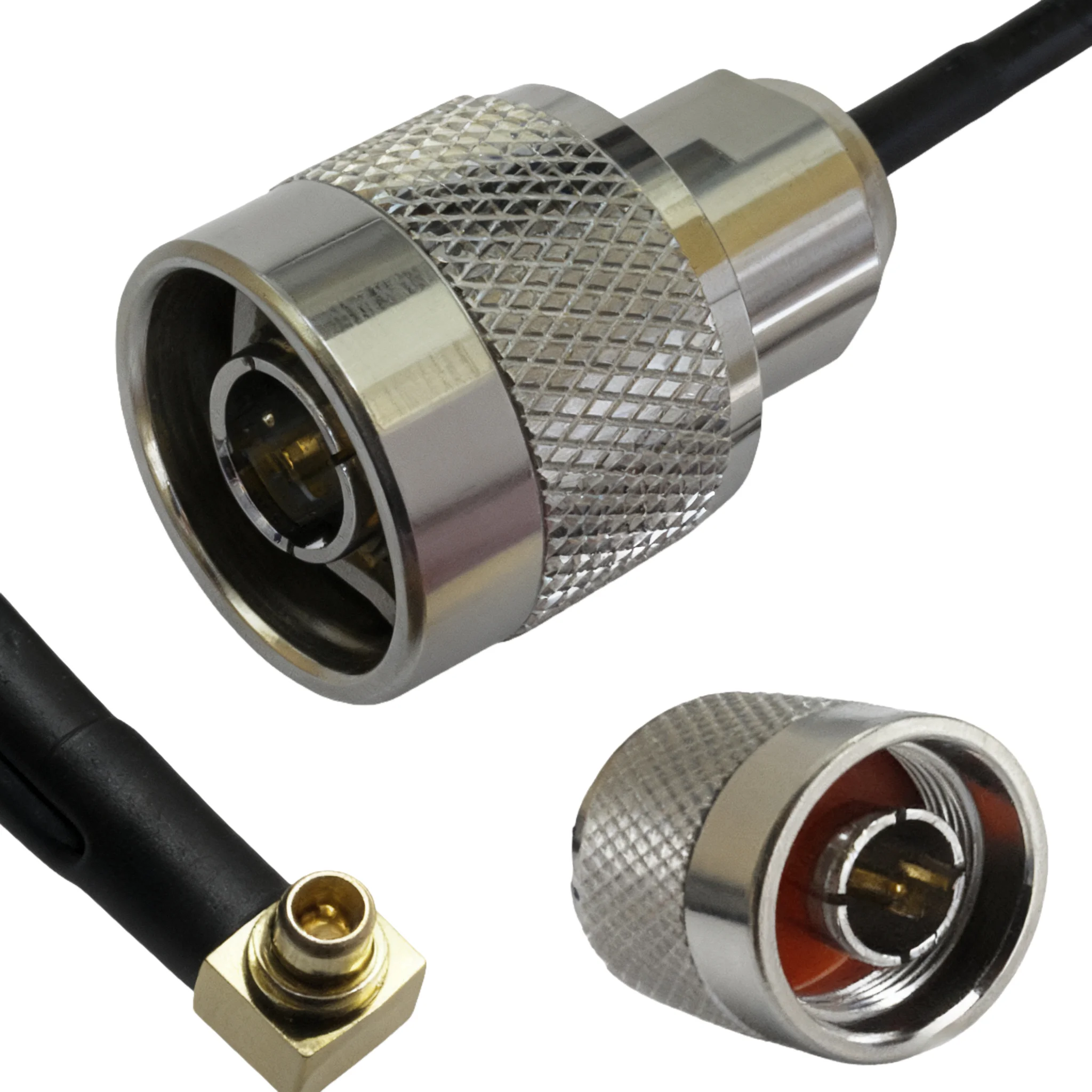

MMCX Right Angle to N-Type Male 25cm
| MMCX Right Angle to N-Type Male 25cm | ||
| Model No. | MMCX Right Angle to N-Type Male 25cm | |
| Interface | CECC 22340 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-6GHz | |
| VSWR | ≤1.20@DC-3000MHz | |
| Insertion Losss | ≤0.18dB@1GHz | |
| 3rd Order IM (PIM3) | — | |
| Working Vlotage | 170V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | 500V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥1000MΩ | |
| Contact Resistance | Center Contact ≤5mΩ | Outer Contact ≤2.5 mΩ |
| Mating | — | |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Center Conductor Retention Force | ≥0.28N | |
| Engagement Fouce | ≤15N | |
| Disengagement Fouce | ≥6N | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Au |
| Insulator | PTFE | — |
| Inner Conductor | Beryllium Bronze | Au |
| Resilient Contact | Phosphor Bronze | Au |
| Sealing Cap | — | — |
| Gasket | — | — |
| Cable Clamp | — | — |
| Ferrule | — | — |
| Environmental | ||
| Operating Temperature | -45 °C~-85 °C | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | ||
FAQ
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order
Q: Can you guarantee the quality of product?
A: Sure, high quality give us confidence to do business with your company. Long-term cooperation is what we need most instead of short-term cooperation.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you.
Q:How do your company deal with the problem on quality ?
A: We have 20 years experience in this business. High quality and perfect service earn us great reputation. We will have a
detailed analysis of the problem. If our product is unqualified, we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
