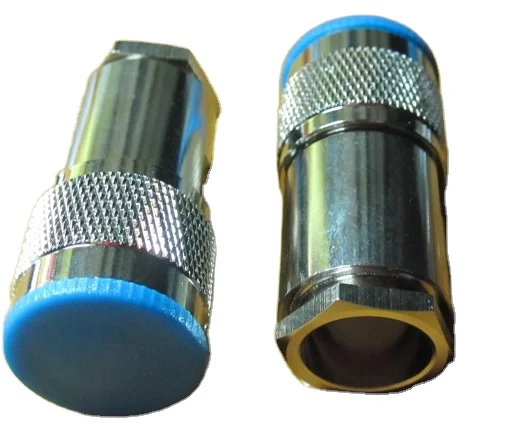

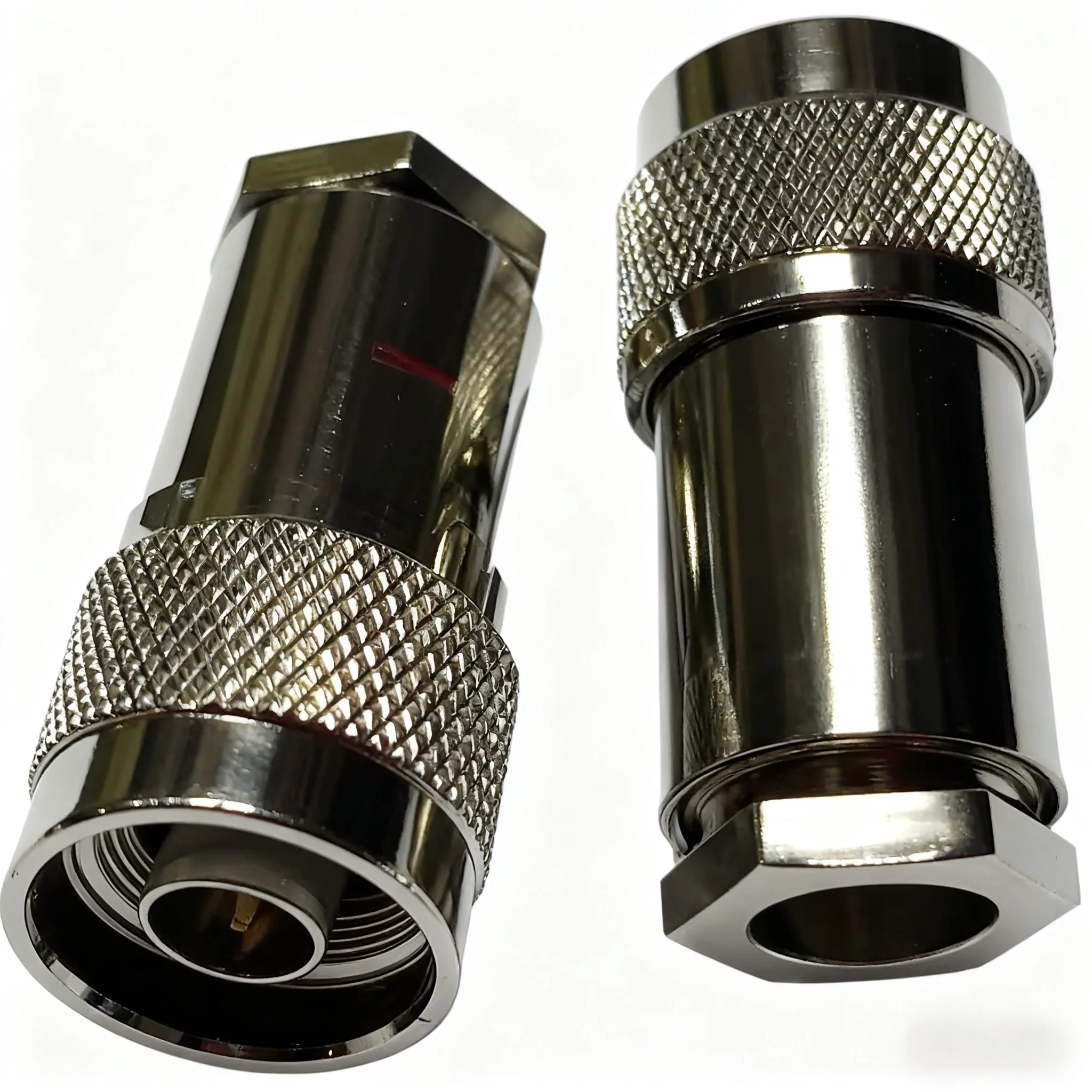

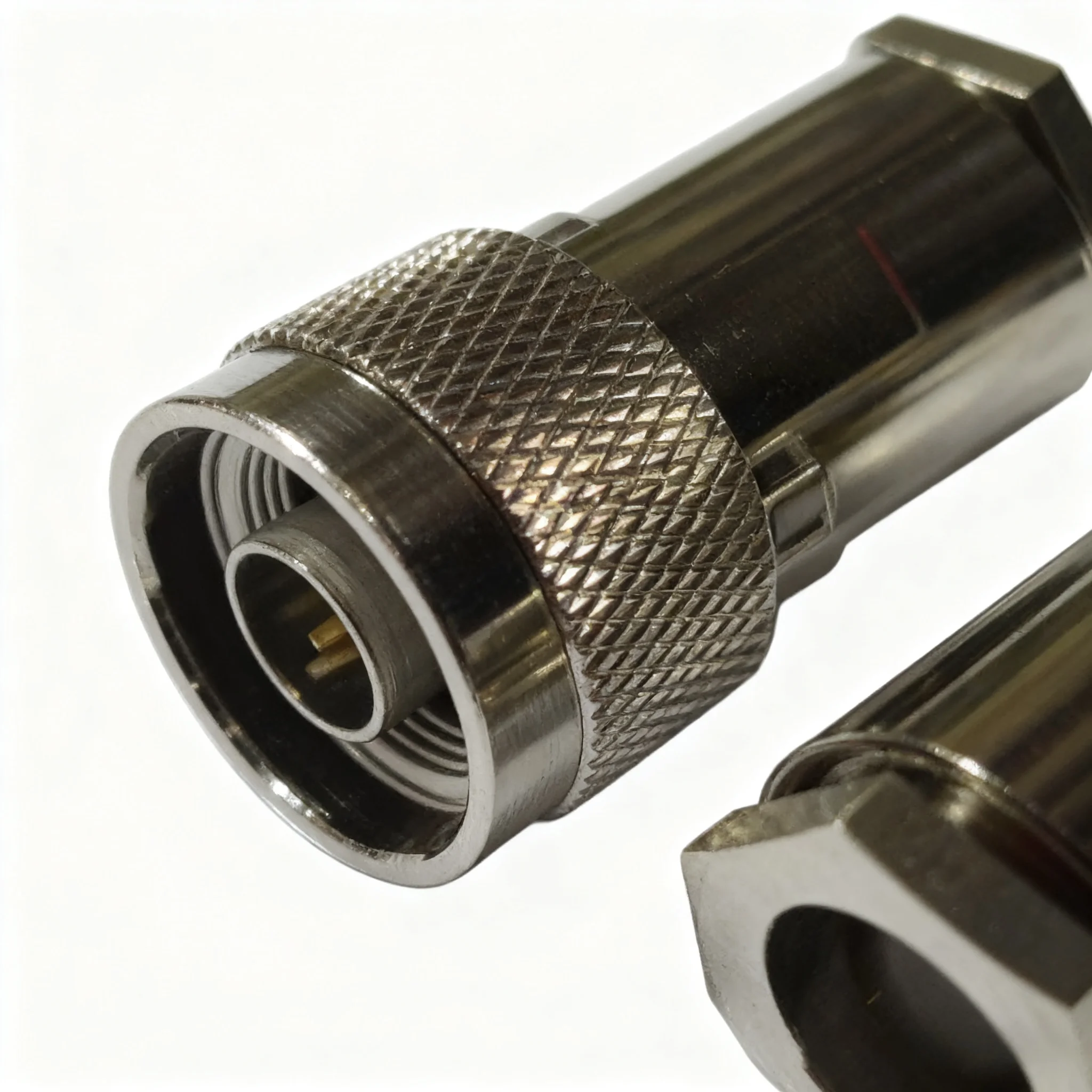

N Type Male Clamp Male for RG8 RG213 RG214 CNT400
- Superior Electrical Performance & Wide Frequency Coverage:
- 50Ω characteristic impedance and DC-11GHz frequency range, meeting high-bandwidth RF application needs (e.g., 5G, microwave communication).
- Ultra-low VSWR (≤1.15@DC-3000MHz) and insertion loss (≤0.24dB@6GHz) minimize signal reflection and attenuation, ensuring exceptional signal integrity.
- High voltage tolerance: 1000V RMS working voltage and ≥2500V RMS dielectric withstanding voltage (sea level) for safe operation in high-power scenarios.
- Ultra-low contact resistance (center ≤1mΩ, outer ≤0.25mΩ) and ≥5000MΩ dielectric resistance, guaranteeing stable conductivity and insulation reliability.
- Overview
- FAQ
- Recommended Products
- Reliable Mechanical Durability & Premium Material:
- Compliant with international standards (IEC 60169-16, MIL-C-39012, CECC-22210), ensuring compatibility and quality consistency for global B2B applications.
- Durable construction: Tri-metal (CuZnSn) or nickel-plated brass body, gold-plated phosphor bronze inner conductor, and silver-plated brass cable clamp—delivering excellent corrosion resistance, conductivity, and long service life.
- ≥500 mating cycles and robust structural design (brass coupling nut) ensure durability in high-frequency connection/disconnection scenarios.
- PTFE insulator provides superior dielectric properties, heat resistance, and mechanical stability, adapting to complex operating environments.
- Strong Environmental Adaptability & Protection:
- IP67 weatherproof rating, effectively resisting dust, water immersion, and harsh outdoor conditions—ideal for outdoor RF systems.
- Operating temperature range of -45℃~+85℃, adapting to extreme cold (outdoor telecom towers) and moderate high-heat (industrial control cabinets) environments.
- RoHS compliant (by exemption), meeting environmental protection requirements for global markets, suitable for eco-friendly product deployments.
- Broad Cable Compatibility & Practical Design:
- Perfectly compatible with LMR400, RG213, RG8, and CNT400 cables—covering mainstream high-performance coaxial cables for diverse project needs.
- Silicone rubber gasket enhances sealing performance, further improving weather resistance and reliability in humid or outdoor settings.
- Telecom & Networking Infrastructure: 5G macro base stations, microwave transmission systems, and high-power signal repeaters—leveraging DC-11GHz frequency range, low VSWR, and IP67 protection for stable outdoor/indoor signal transmission.
- Industrial Automation & IoT: Industrial control systems, outdoor IoT sensors, and factory automation RF links—withstanding temperature fluctuations, vibration, and harsh factory environments while complying with international standards.
- Test & Measurement Equipment: High-frequency signal generators, spectrum analyzers, and network analyzers—relying on ultra-low contact resistance and insertion loss for accurate, repeatable test data acquisition.

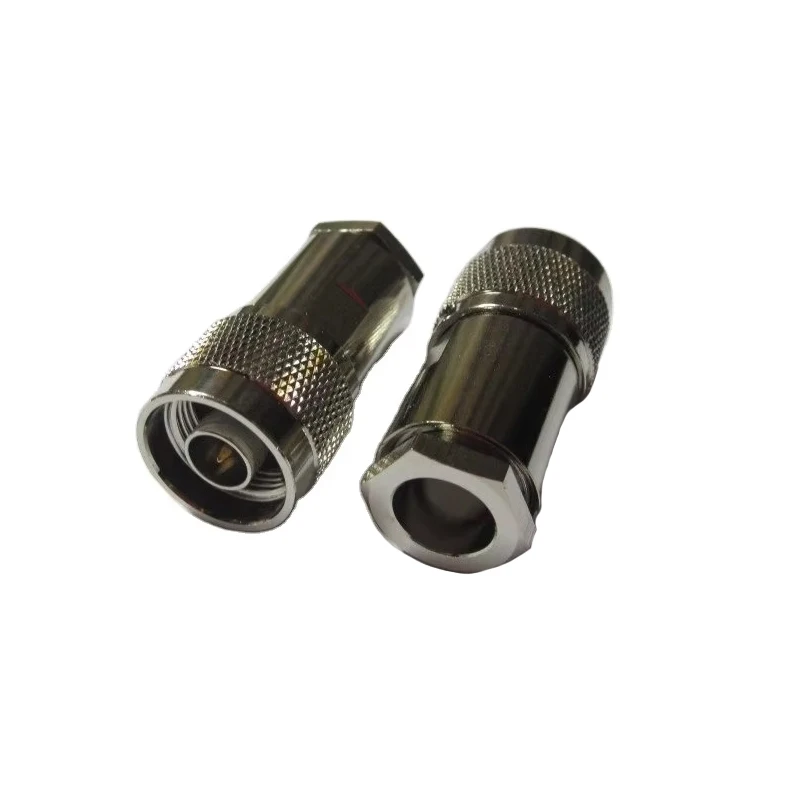

N type male clamp male for RG8 RG213 RG214 CNT400
Product selling points：
Analysis of application scenarios：
Category |
Details |
Interface Standards |
IEC 60169-16; MIL-C-39012; CECC-22210 |
Electrical Characteristics |
Characteristic Impedance: 50Ωrequency Range: DC-11GHz: ≤1.15 @ DC-3000MHz Loss: ≤0.24dB (6GHz)3rd Order IM (PIM3): —Working Voltage: 1000V RMS, 50Hz (at sea level)>Dielectric Withstanding Voltage: ≥2500V RMS, 50Hz (at sea level)Dielectric Resistance: ≥5000MΩ Center ≤1mΩ, Outer ≤0.25mΩ — |
Mechanical Characteristics |
Durability: ≥500 mating cycles |
Material & Plating |
Body: Brass (Tri-Metal/CuZnSn or Ni plating)Insulator: PTFE (No plating)Inner Conductor: Phosphor Bronze (Au plating)>Coupling Nut: Brass (Ni plating)asket: Silicone Rubber (No plating) Clamp: Brass (Ag plating): — (No plating) |
Environmental Requirements |
Operating Temperature: -45℃ ~ +85℃ (Note: Corrected from "45℃-85℃" for logical temperature range)Weatherproof Rate: IP67: Compliant by exemption (2002/95/EC) |
Suitable Cable Family |
LMR400, RG213, RG8, CNT400 cable |
FAQ
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order
Q: Can you guarantee the quality of product?
A: Sure, high quality give us confidence to do business with your company. Long-term cooperation is what we need most instead of short-term cooperation.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you.
Q:How do your company deal with the problem on quality ?
A: We have 20 years experience in this business. High quality and perfect service earn us great reputation. We will have a
detailed analysis of the problem. If our product is unqualified, we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
