QMA Male Plug to for SMA Female Jack Adapter 50ohm Impedance for RF Applications
Spu:
60336354434
- Overview
- Recommended Products

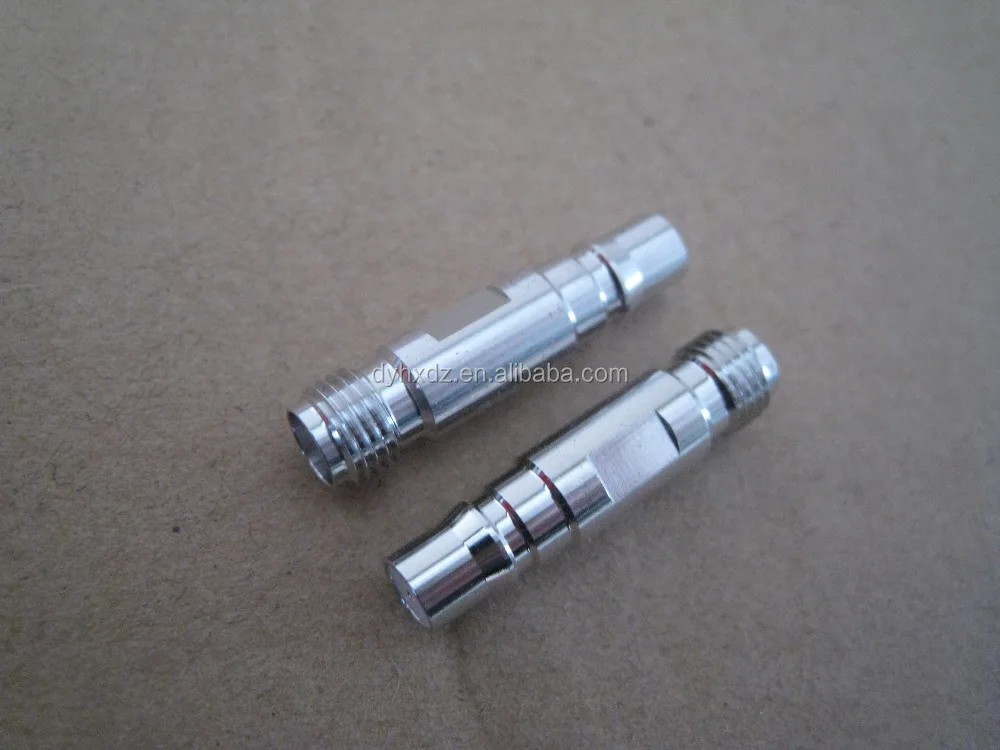

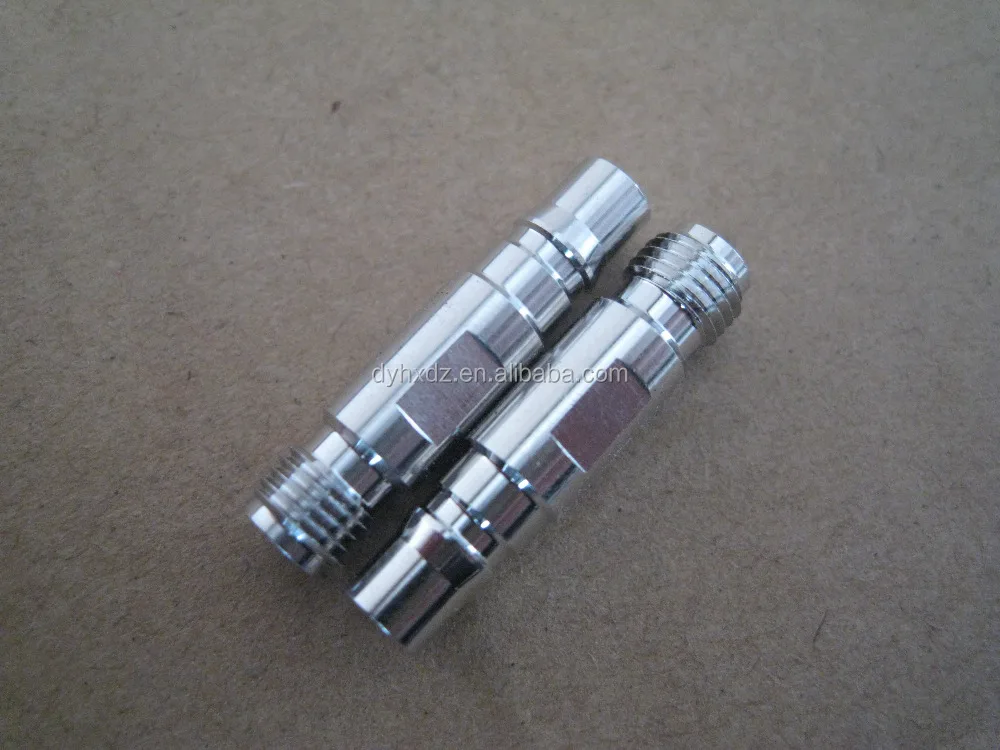

Qma Plug to Sma Jack Adapter Qma Male to Sma Female
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
| Model No. | QMA-male to SMA feamle | |
| Interface | IEC | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-6GHz | |
| VSWR | ≤1.25@DC-3GHz; ≤1.35@3-6GHz | |
| Working Vlotage | ≤480V | |
| Dielectric Withstanding Voltage | ≥1000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center Contact ≤2.5mΩ | Outer Contact ≤3 mΩ |
| Mechanical | ||
| Durability( Mating times) | ≥200 | |
| Interface retention force | ≥60N | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Brass | Au |
| Outer Conductor | Phosphor Bronze | Tri-alloy |
| Coupling nut | Brass | Ni |
| Sealing cap | Brass | Ni |
| Ferrule | Annealed Copper | Ni |
| Environmental | ||
| Operating Temperature | _45 ℃-85 ℃ | |
| RoHS Compliant | Yes | |
