QN Straight Cable Plug for RG142 RG223 RG58 Connector QN Male
QN Male Straight Cable Plug - Compatible with RG142 RG223 RG58 Coaxial Cables, High-Frequency Signal Transmission
- Overview
- FAQ
- Recommended Products

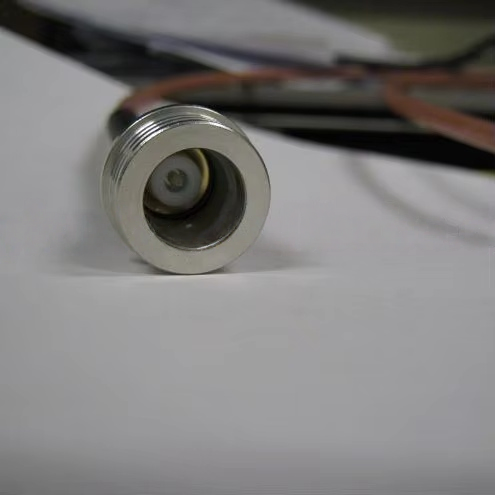

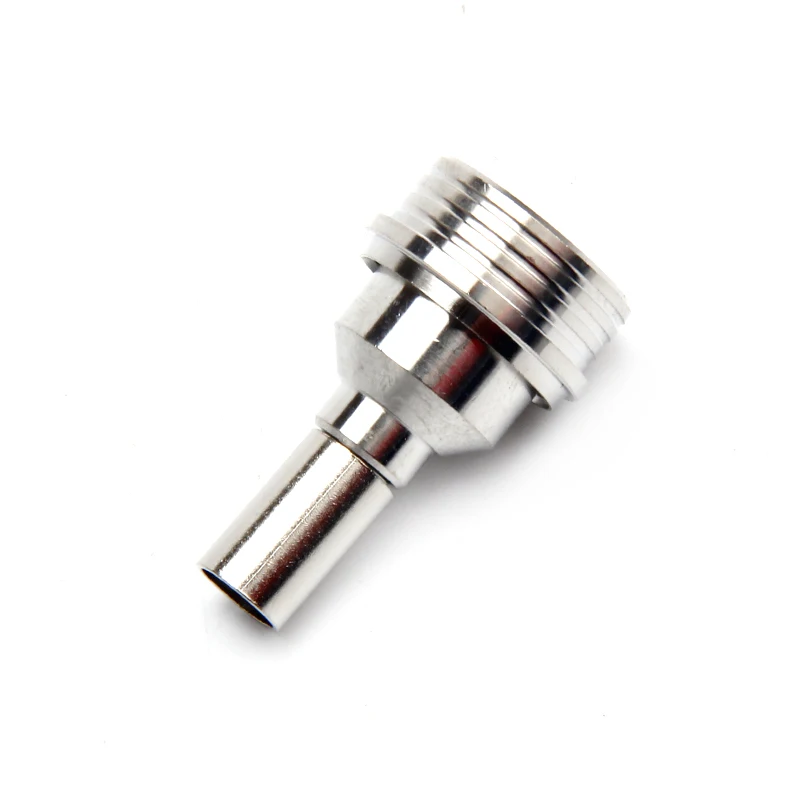

QN Straight Cable Plug for RG142 RG223 RG58 Connector QN Male
RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/ufl/L9/SMA/SMB/MMCX/MCX/OEM)
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA,SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/
RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
Mechanical data Electrical data Environmental and general data Material data
| Category | Details |
|---|---|
| Mechanical Dimensions | - Flange Type: Square flange - Flange Size: 17.5 x 17.5 mm - Tab Style: Solder end - Terminal D1: 2.1 mm - Terminal L1: 5 mm - Terminal D2: 0 mm - Terminal L2: 0 mm |
| Electrical Performance | - Impedance: 50 Ω - Max Interface Frequency: ≤11 GHz |
| Environmental & Durability | - Operating Temp Range: -40°C to 125°C - Weight: 0.0131 kg - Max Matings: 100 times |
| Materials & Compliance | - Center Contact: Bronze (SUCOPRO Plating) - Outer Contact: Brass (SUCOPLATE® Plating) - Insulator: PFA / PTFE - Body: Brass (SUCOPLATE® Plating) - RoHS (2002/95/EC): Compliant |
FAQ
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order
Q: Can you guarantee the quality of product?
A: Sure, high quality give us confidence to do business with your company. Long-term cooperation is what we need most instead of short-term cooperation.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you.
Q:How do your company deal with the problem on quality ?
A: We have 20 years experience in this business. High quality and perfect service earn us great reputation. We will have a
detailed analysis of the problem. If our product is unqualified, we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
