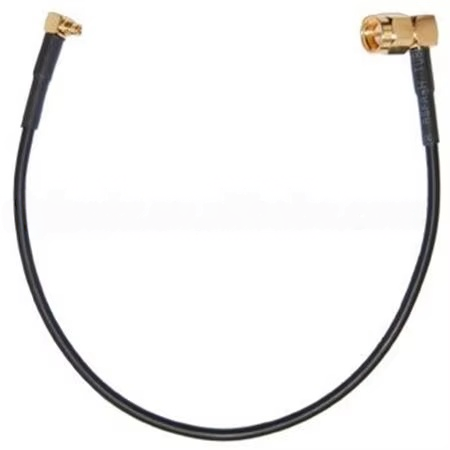

RF Cable Assembly Right Angle MMCX Male to SMA Plug Male 8 Inch RG174 Pigtail Cable
TYPE SMA is one kind of coaxial connectors that is widely applied, with small-sized thread coupling. Characteristic impedance is 50Ω. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or micro-strip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system. The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.
- Overview
- FAQ
- Recommended Products
- Broad Frequency & Low Loss Supports DC-12.4GHz (semi-rigid up to 18GHz) with insertion loss ≤0.15dB at 6GHz, ideal for high-bandwidth signal transmission.
- Robust Environmental Resilience Withstands -55~+155°C (or -40~+85°C for PE cable) and 10g vibration (10~2000Hz), suitable for harsh operating conditions.
- Superior Signal Integrity 50Ω impedance, low VSWR (e.g., ≤1.20+0.03f for right-angle flex cable), and minimal contact resistance (center ≤3mΩ) ensure stable signal quality.
- Reliable & Durable ≥500 mating cycles, 1000V dielectric withstanding voltage, and ≥5000MΩ insulation resistance for long-term, safe operation.
- Wireless communication devices (Wi-Fi 6/7 routers, 5G modules, Bluetooth equipment)
- RF test & measurement tools (spectrum analyzers, signal generators)
- Aerospace/defense electronics (high-vibration, wide-temperature systems)
- Industrial IoT sensors & automation gear
- Medical RF devices (diagnostic equipment, monitoring tools)
RF Cable Assembly Right Angle MMCX Male to SMA Plug Male 8 Inch RG174 Pigtail Cable
Technical Characteristics
Temperature Range |
-55~+155°C (PE Cable -40~+85°C) |
|
Impedance |
50Ω |
|
Vibration |
98m/S2 (10~2000Hz), 10g |
|
Frequency Range |
DC-12.4GHz(semi-rigid cable DC-18 GHz) |
|
Insertion Loss |
<= 0.15dB/6GHz |
|
Withstanding Voltage |
1000V r.m.s at sea level |
|
Working Voltage |
335Vr.m.s at sea level |
|
Insulation Resistance |
>= 5000 MΩ |
|
Durability |
>= 500(cycles) |
|
Contact resistance: |
CenterContact <= 3mΩ |
|
Outer Contact <= 2.5mΩ | ||
Voltage Standing Wave Ratio: |
Straight |
flex cable <= 1.10+0.02f |
Semi-rigid cable <= 1.07+0.018f | ||
Right angle |
flex cable <= 1.20+0.03f |
|
Semi-rigid cable <= 1.17+0.02f | ||
