- Tailored for RG-179 Cable Right angle 75Ω SMB connector specifically designed for RG-179 cable, saving space in compact RF layouts while ensuring a snug fit.
- Stable 75Ω RF Performance DC-2GHz frequency range (75Ω); insertion loss ≤0.30dB/1.5GHz; VSWR ≤1.45/1GHz (right angle) minimizes signal reflection and attenuation.
- Ultra-Low Contact Resistance Center contact ≤6mΩ, outer contact ≤1mΩ, guaranteeing reliable conductivity and consistent signal integrity.
- Rugged & Durable Design ≥500 mating cycles; withstands 98m/s² (10g) vibration (10–2000Hz); 8–63N engagement/disengagement force for long-term stable use.
- Harsh Environment Adaptability -55~+155°C operating range (PE cable: -40~+85°C); 1000V withstand voltage / 335V working voltage; ≥1000MΩ insulation resistance for industrial reliability.

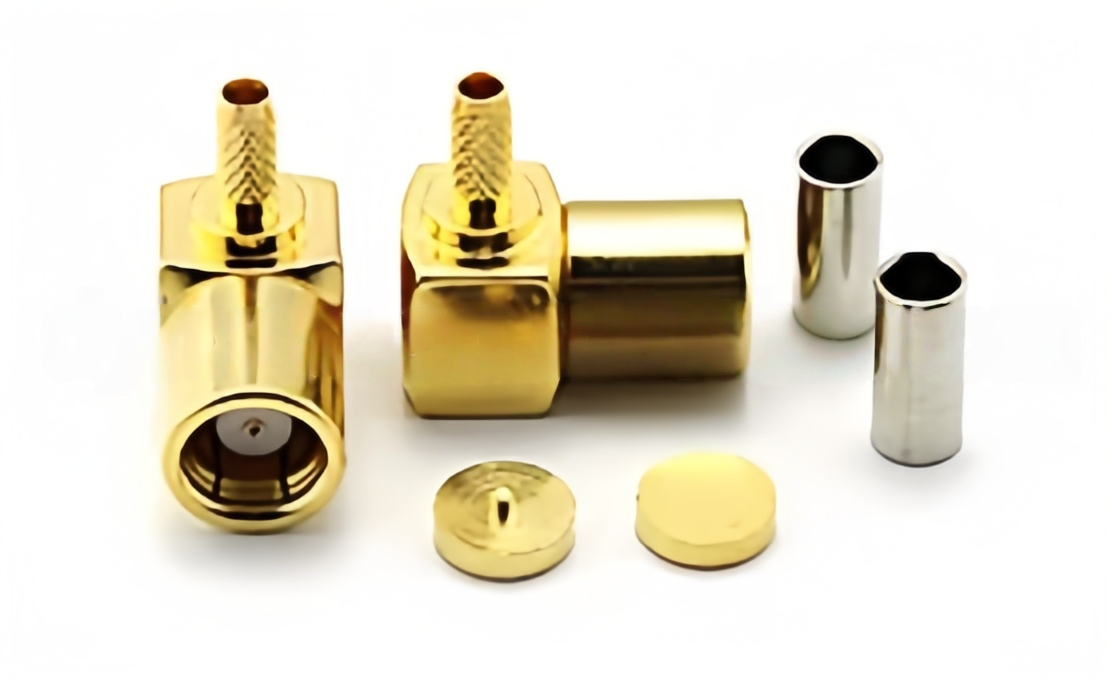

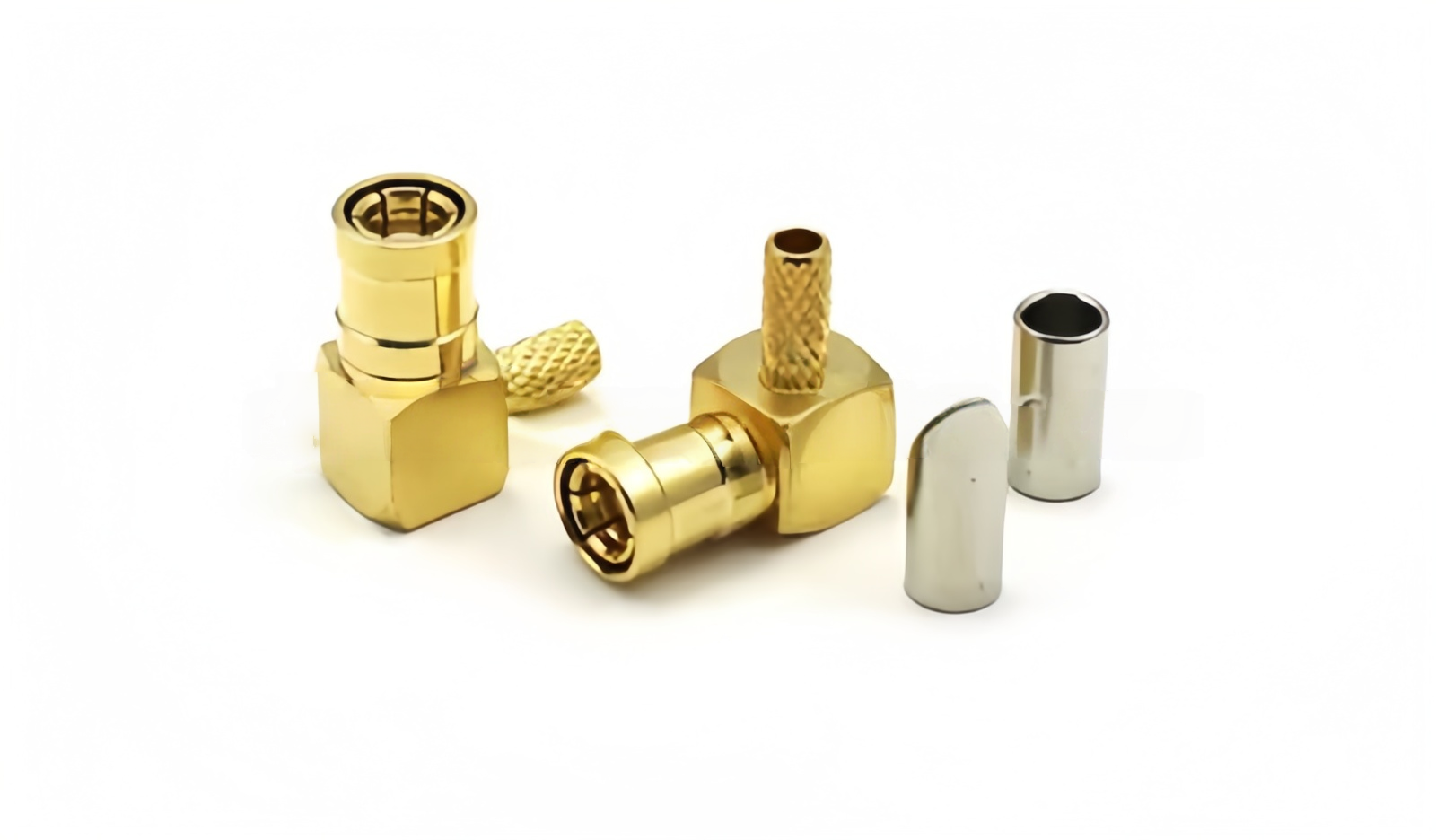

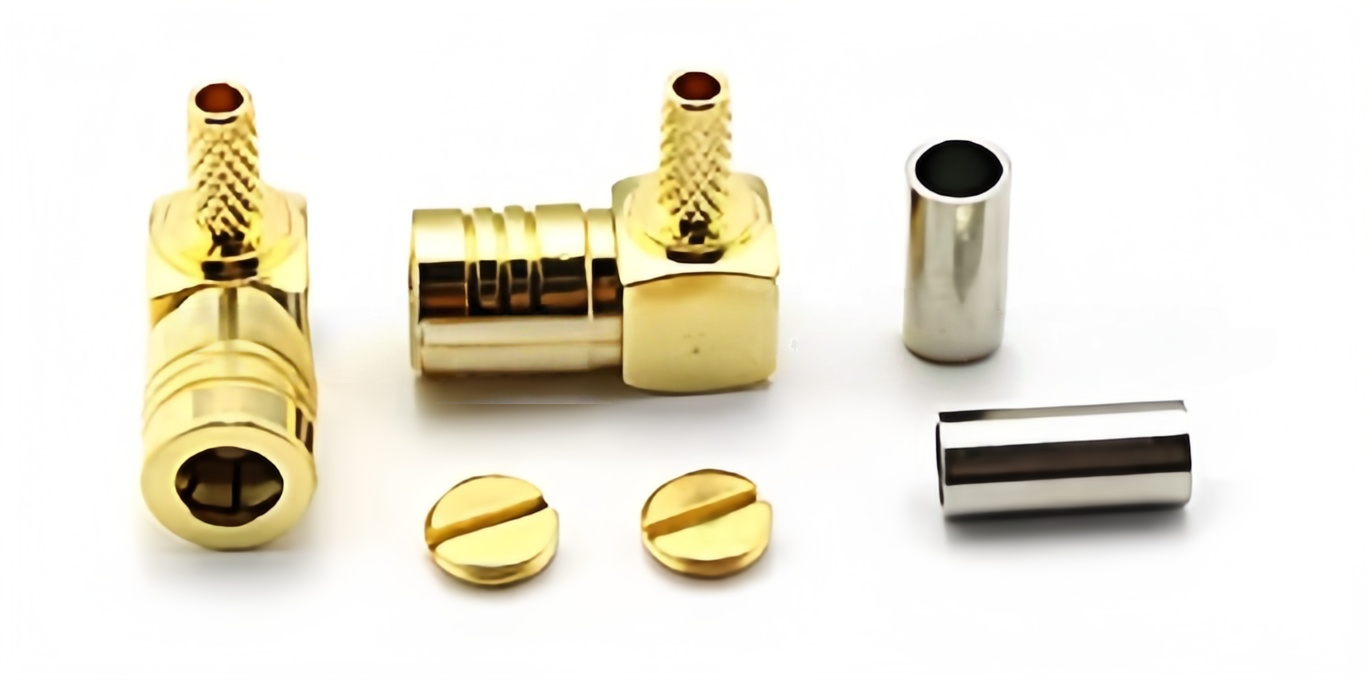

RF coaxial connector 75 ohm smb right angle connector for rg-179 cable
RF coaxial connector 75 ohm smb right angle connector for rg-179 cable
Temperature Range |
-55~+155°C (PE Cable -40~+85°C) |
|
Impedance |
50Ω, 75Ω |
|
Vibration |
98m/S2 (10~2000Hz), 10g |
|
Frequency Range |
DC-4GHz(50Ω), DC-2GHz(75Ω) |
|
Insertion Loss |
0.30dB/1.5GHz |
|
Withstanding Voltage |
1000V r.m.s at sea level |
|
Working Voltage |
335Vr.m.s at sea level |
|
Insulation Resistance |
>= 1000 MΩ |
|
Durability |
>= 500(cycles) |
|
Engagement force: |
8~63N |
|
Disengagement force: |
8~63N |
|
Contact resistance: |
Center Contact <=6mΩ |
|
Outer Contact <=1mΩ | ||
Voltage Standing Wave Ratio: |
Straight |
<= 1.35/3GHz |
Right angle |
<= 1.45/1GHz |
|
FAQ
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order
Q: Can you guarantee the quality of product?
A: Sure, high quality give us confidence to do business with your company. Long-term cooperation is what we need most instead of short-term cooperation.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you.
Q:How do your company deal with the problem on quality ?
A: We have 20 years experience in this business. High quality and perfect service earn us great reputation. We will have a
detailed analysis of the problem. If our product is unqualified, we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
