RF n type connector with washer
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock

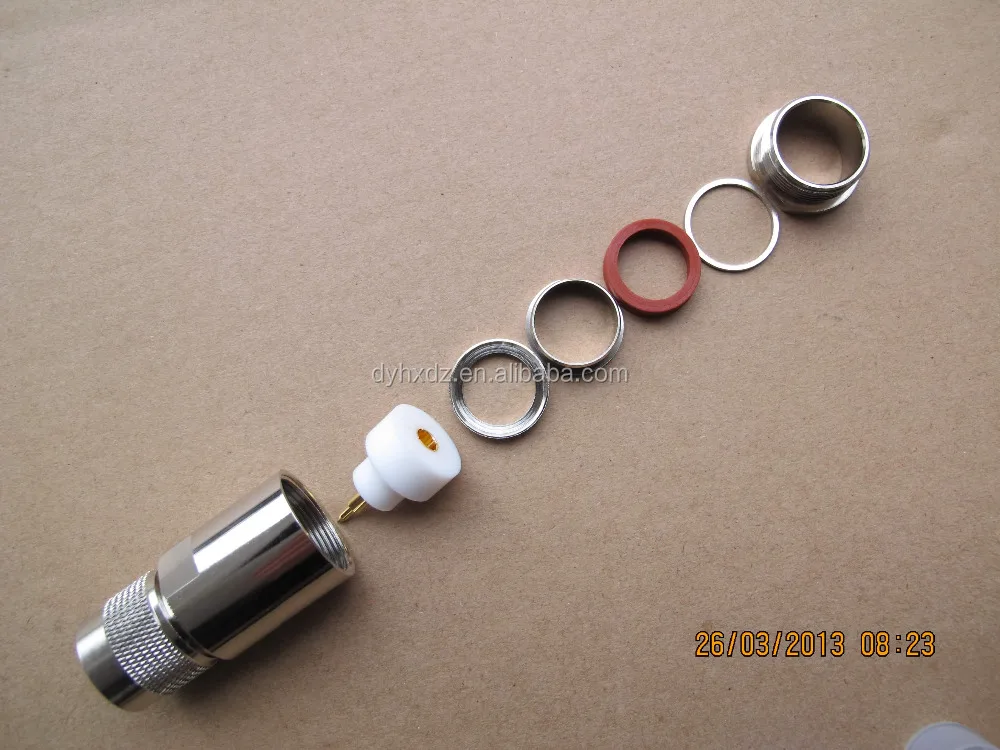

n connector male for 10d-fb cable
|
Temperature Range |
|
-55 to +155°C (PE Cable -40 to 85°C) |
|
Vibration |
|
100m/s (10-500Hz), 10g |
|
Impedance |
|
50Ω |
|
Frequency |
|
DC to 11GHZ |
|
Working Voltage |
|
1000V r.m.s at sea level |
|
Withstanding Voltage |
|
2500V r.m.s at sea level |
|
Contact Resistance |
Center contact |
≤1m Ω |
|
|
Outer contact |
≤1m Ω |
|
Insertion Loss |
|
≤0.24dB(6GHz) |
|
Insulation resistance |
|
≥5000M Ω |
|
Center Conductor Retention Force |
|
≥0.56N |
|
Voltage Standing Wave Ratio |
Straight |
≤1.15/6GHz |
|
|
Right angle |
≤1.25/6GHz |
|
Durability(mating) |
|
≥500cycles |
|
Body |
Brass |
Nickel plated |
|
Pin Contact |
Brass |
Gold plated |
|
Socket Contact |
Beryllium or tin bronze |
Gold plated |
|
Resilient Contact |
Beryllium-copper |
Gold plated |
|
Insulator |
PTFE |
|
|
Crimp Ferrule |
Copper alloy |
Nickel or gold plated |
|
O-ring Sealing |
6146 silicon rubber |
|
