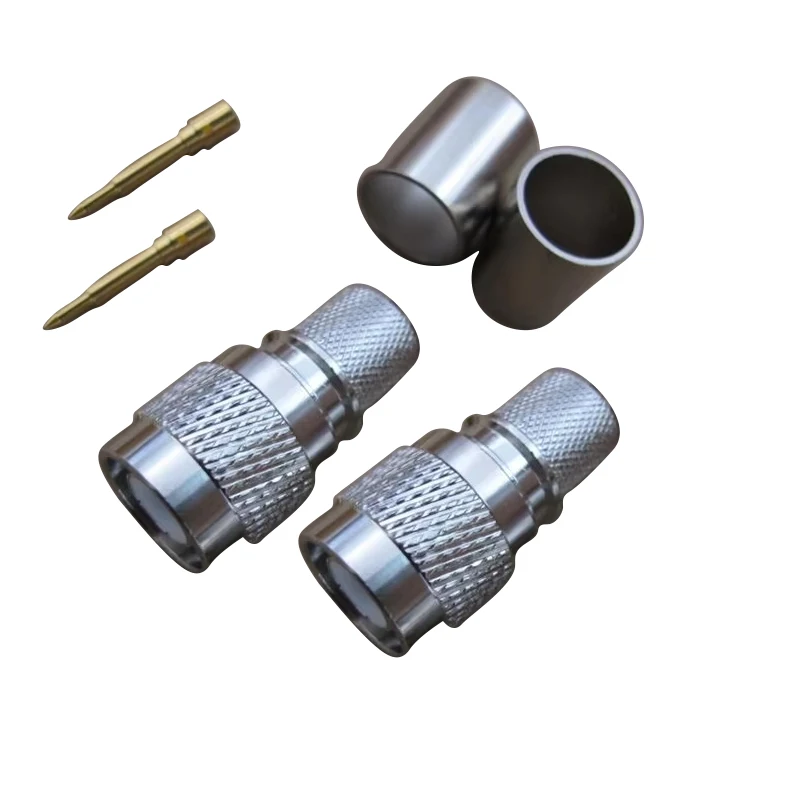

RP TNC Plug Crimp Reverse Polarity TNC RG8

Spu:
1601252625185
  • Overview
  • Recommended Products

TNC Plug Crimp Reverse Polarity LMR400

RG8 COAXIAL CABLE

RG213

RG214

7D-FB

RF COAXIAL CABLE

Temperature Range

-55~+155°C (PE Cable -40~+85°C)

Impedance

50Ω

Frequency Range

DC-6GHz

VSWR

≤ 1.15DC-3000MHz

Insert Loss

≤ 0.15dB (6GHz)

Dielectric Withstanding Voltage

≥1000V RMS,50Hz,at sea level

Working Voltage

≤ 480V

Insulation Resistance

≥ 5000 MΩ

Durability

≥ 500(cycles)

Contact resistance:

CenterContact   ≤2.5mΩ

Outer Contact   ≤ 3mΩ

Interface retention force:

≥60N





  • Body: brass and nickel
  • Pin: brass and gold
  • Dielectric: Teflon
  • Ferrule: brass/nickel
  • Cable group: RG58, RG59, RG174 and RG213

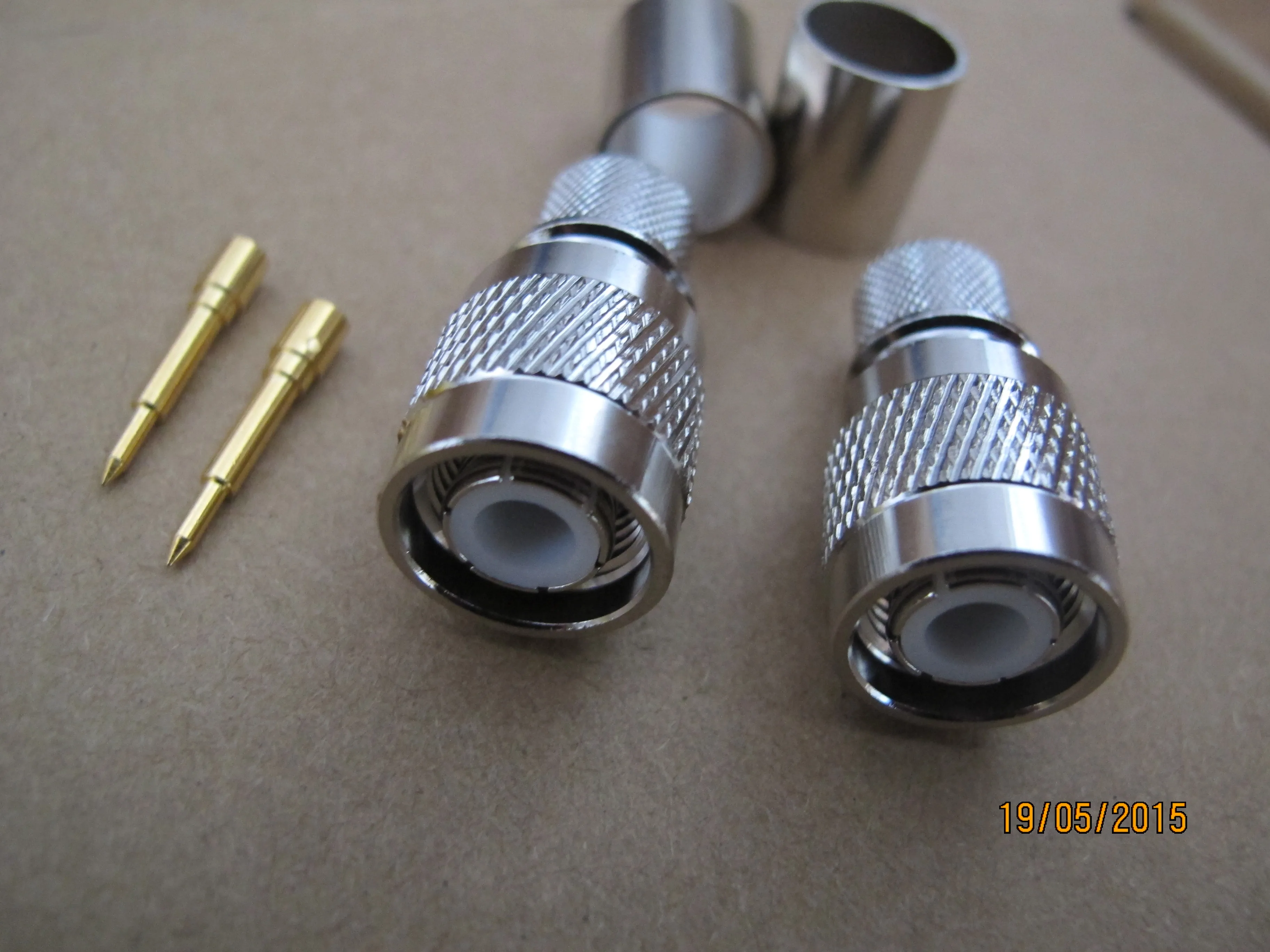

  • TNC male for 7D-FB.jpg
