Description

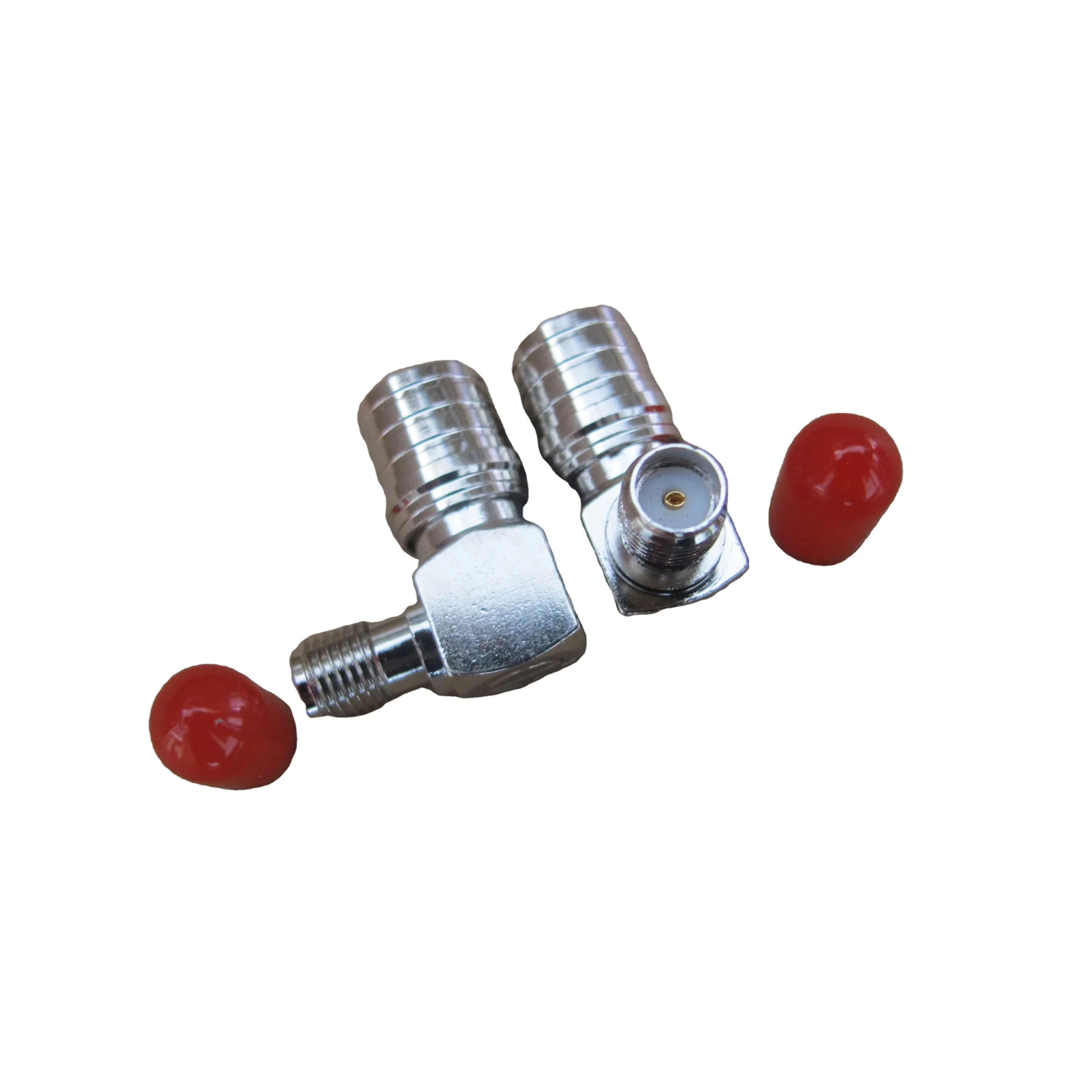

TYPE SMA is one kind of coaxial connectors that is widely applied, with small-sized thread coupling. Characteristic impedance is 50Ω. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or micro-strip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system. The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.
_____________________________________________________________________________
Technical Characteristics
|
Temperature Range |
-55~+155°C (PE Cable -40~+85°C) |
|
|
Impedance |
50Ω |
|
|
Vibration |
98m/S2 (10~2000Hz), 10g |
|
|
Frequency Range |
DC-12.4GHz(semi-rigid cable DC-18 GHz) |
|
|
Insertion Loss |
<= 0.15dB/6GHz |
|
|
Withstanding Voltage |
1000V r.m.s at sea level |
|
|
Working Voltage |
335Vr.m.s at sea level |
|
|
Insulation Resistance |
>= 5000 MΩ |
|
|
Durability |
>= 500(cycles) |
|
|
Contact resistance: |
CenterContact <= 3mΩ |
|
|
Outer Contact <= 2.5mΩ |
||
|
Voltage Standing Wave Ratio: |
Straight |
flex cable <= 1.10+0.02f |
|
Semi-rigid cable <= 1.07+0.018f |
||
|
Right angle |
flex cable <= 1.20+0.03f |
|
|
Semi-rigid cable <= 1.17+0.02f |
||
