SMA Female Connector Straight Panel Mount 4 Holes Flange Crimp Connector

  1. SMA Female Straight 4-Hole Flange Panel Mount Crimp Connector | 50Ω DC-12.4GHz High-Durability RF Component
  2. Brass/Gold-Plated SMA Female Panel Mount Connector | 5000 Mating Cycles, -55~+155℃ Wide Temp Range
  3. Low-Loss SMA Female 4-Hole Flange Crimp Connector | 10G Vibration Resistant for Telecom & Test Systems
  • Overview
  • FAQ
  • Recommended Products

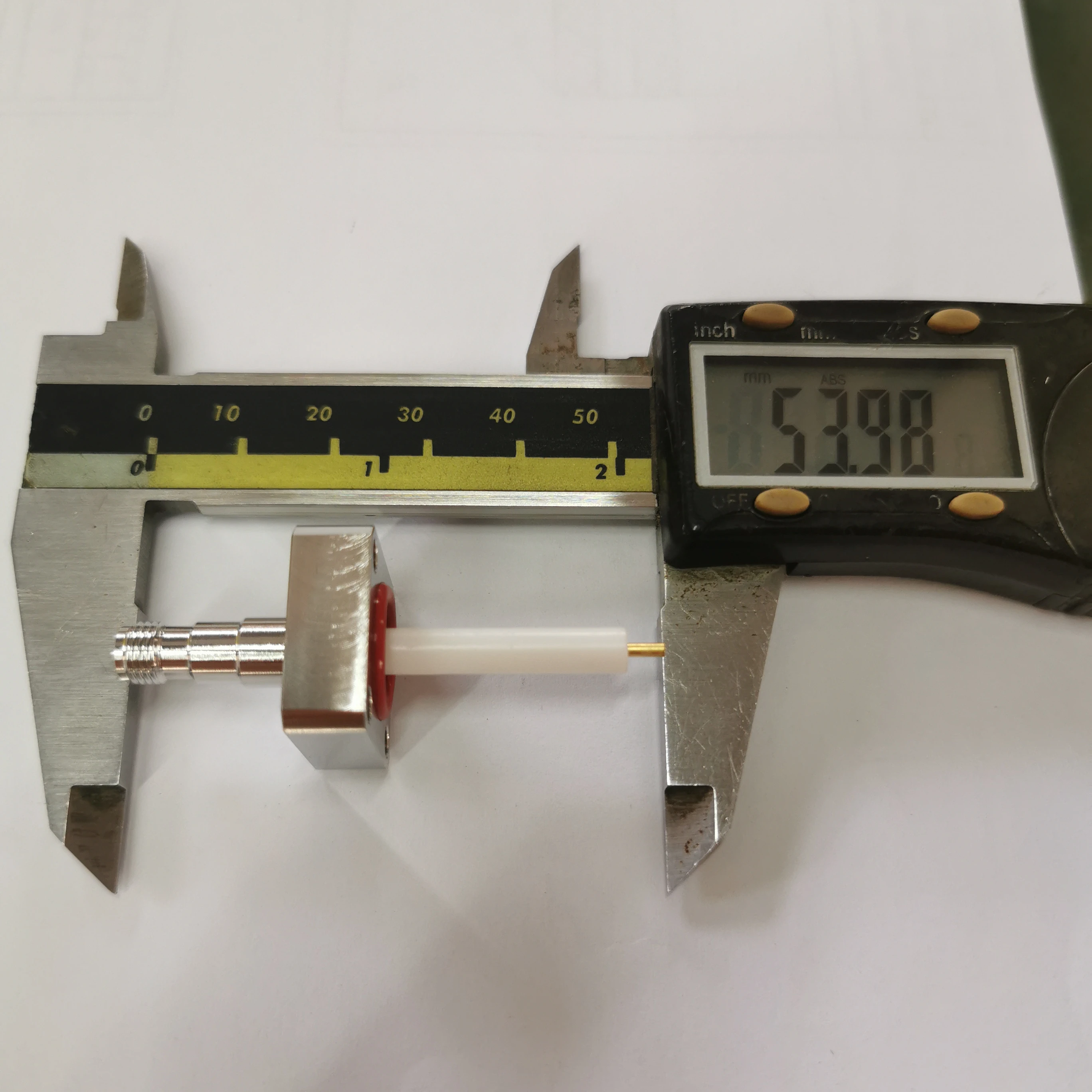

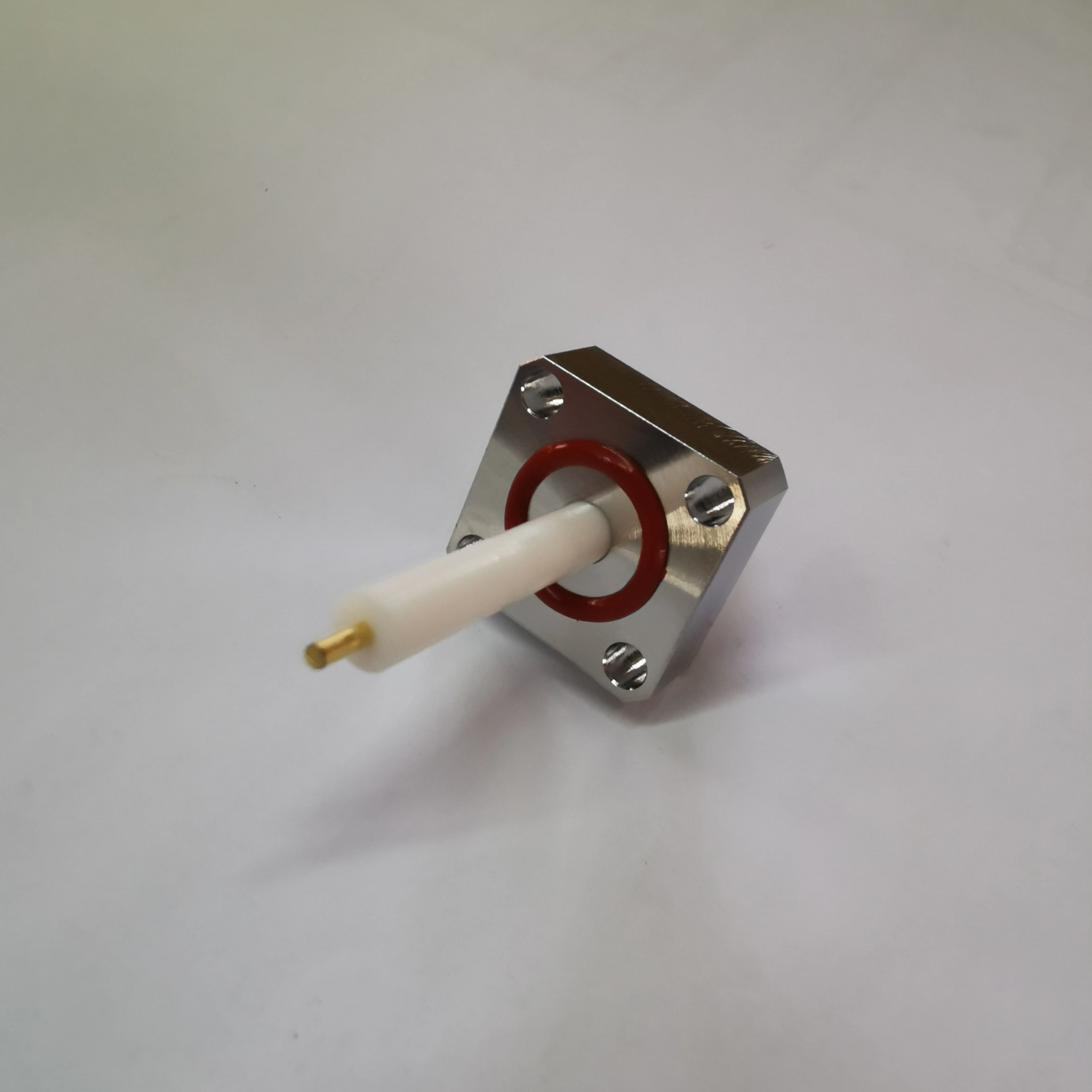

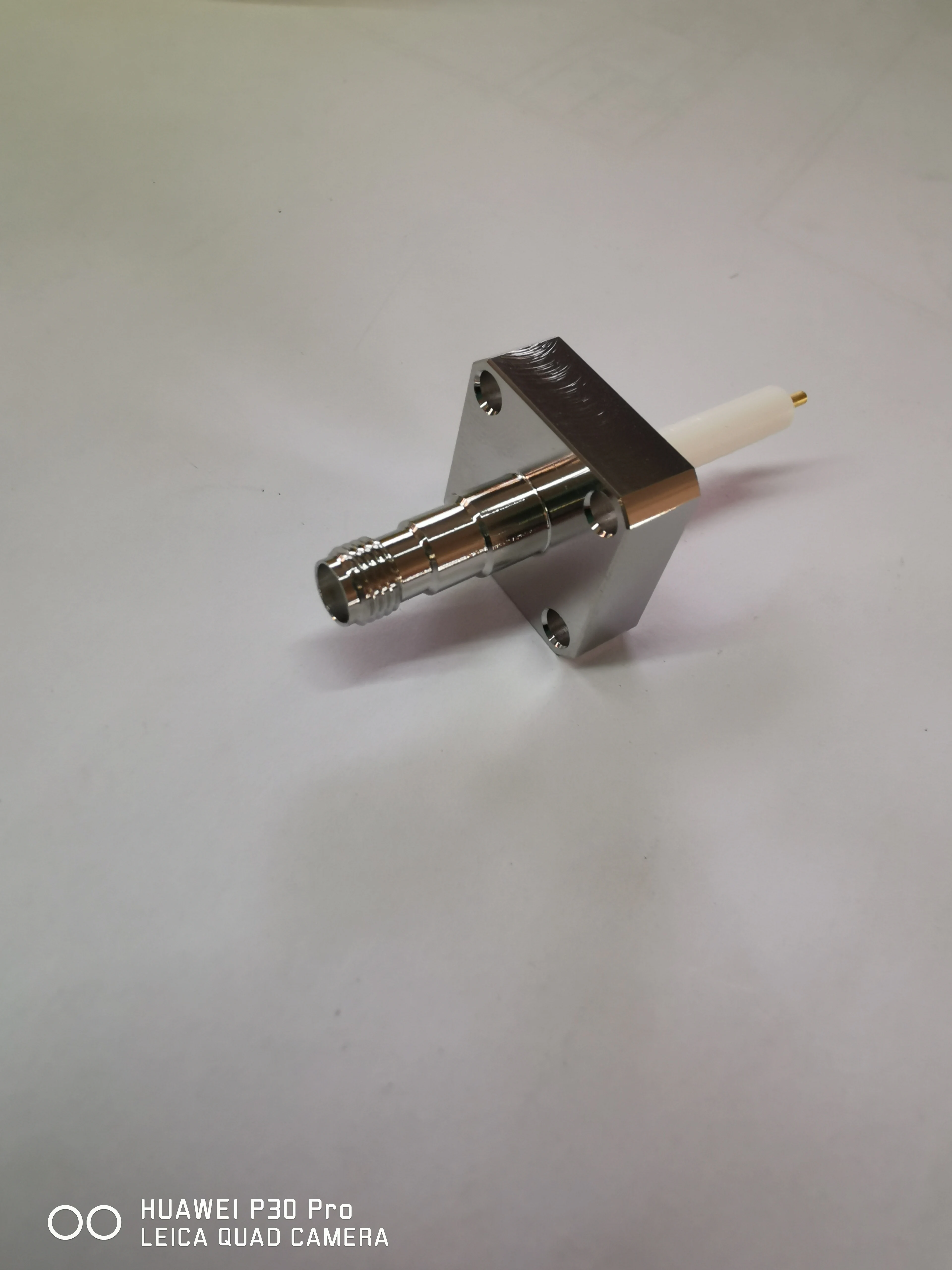

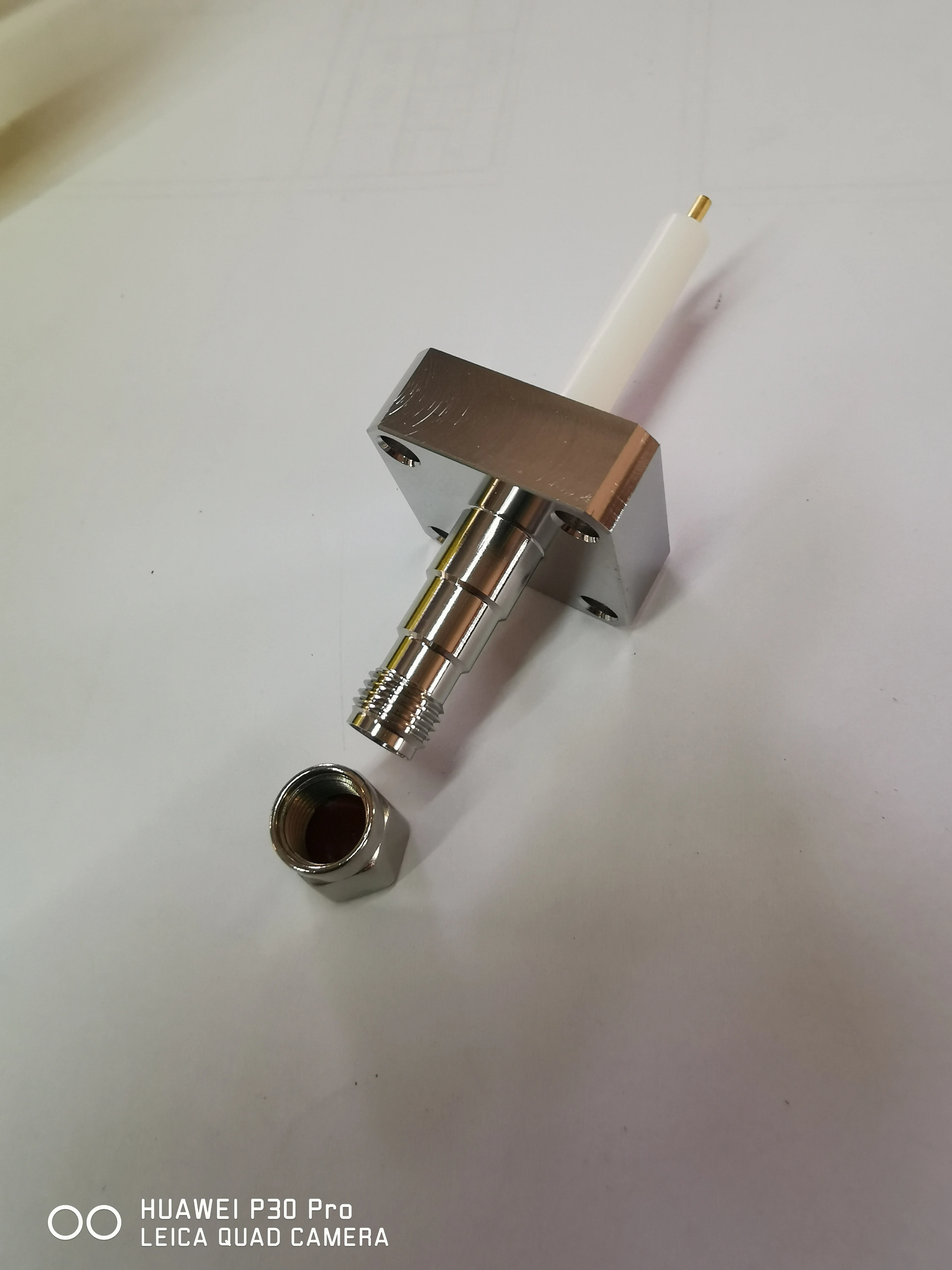

SMA female connector straight panel mount 4 holes flange crimp connector

Key Selling Points

  1. Broad High-Frequency Coverage: 50Ω impedance, DC-12.4GHz frequency range, and ≤0.15dB/6GHz insertion loss ensure low-signal-attenuation transmission.
  2. Stable Electrical Performance: 1000Vr.m.s withstanding voltage, 335Vr.m.s working voltage, ≥5000MΩ insulation resistance, and ultra-low contact resistance (center ≤3mΩ, outer ≤2.5mΩ) guarantee safe operation.
  3. Robust & Corrosion-Resistant Build: Brass/gold-plated body & contacts, PTFE insulator; 5000 mating cycles and 10G vibration resistance for long service life in harsh conditions.
  4. Easy Panel Installation: 4-hole flange design enables secure mounting; crimp connection ensures tight cable fixation for efficient assembly.
  5. Extreme Temperature Adaptability: Operates in -55~+155℃, suitable for extreme cold and high-heat environments.

Application Fields

  • Telecom Infrastructure: 5G base stations, wireless signal repeaters, and high-frequency transmission equipment.
  • Test & Measurement: Spectrum analyzers, network testers, and precision signal detection instruments.
  • Industrial & Outdoor Systems: Industrial IoT sensors, outdoor RF transmitters, and remote monitoring devices.
  • Aerospace & Defense: Avionics communication systems and military equipment requiring vibration and temperature resistance.

Specifications
Major Technical Characteristics
Temperature Range
-55 degree to +155 dregree
Vibration
100m/S2 (10 to 500 Hz), 10G
Impendance
50ohm
Frenquency Range
DC-12.4GHZ
Working Voltage
335V r.m.s at sea level
Workstandinging Voltage
1000V r.m.s at sea level
Center Contact Resistance
 ≤3Mohm
Outer Contact Resistance
≤2.5Mohm

Insulation Resistance
≥5000Mohm
Center conductor Retention Force
≤0.28N
Insertion Loss
≤0.15dB/6Ghz
VoltaggeStanding Wave Ratio :
Straight
 ≤1.10+0.02f
Right Angle
≤1.20+0.03f
Dutability (Mating)
≤5000(cycles)
Body
Brass/cusnzn Plated
Contact
Brass/Gold Plated
Insulator
PTFE
Nut
Brass
Washer
Brass

Please contact us immediaterly if you are interested!



FAQ

Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.

Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order

Q: Can you guarantee the quality of product?
A: Sure, high quality give us confidence to do business with your company. Long-term cooperation is what we need most instead of short-term cooperation.

Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you.

Q:How do your company deal with the problem on quality ?
A: We have 20 years experience in this business. High quality and perfect service earn us great reputation. We will have a
detailed analysis of the problem. If our product is unqualified, we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
