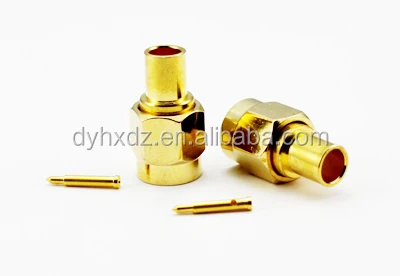

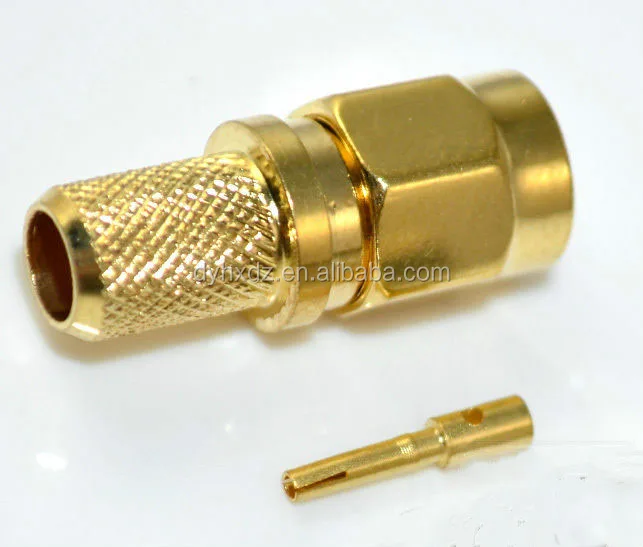

SMA male crimp connector for RG6 cable
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
| SMA male crimp |
| SMA crimp for rg6 |
| SMA RG6 |
SMA connectors, short for SubMiniature Version A, are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 12.4 GHz with flexible cable. SMA connectors feature screw-type coupling. Semi-Rigid cabling extends the frequency range of the device to 18GHz.
SMA connectors offer broadband performance with low reflections and constant 50 ohm impedance. These properties, along with minimum attenuation and low VSWR have made the SMA connector extremely popular in the microwave community.
Technical characteristics
Temp.range....................-65~ +165 ℃(PE Cable -~ +85)
Vibration........................ MIL-STD-202,Method 213
Impedance......................50Ω
Frequency Range.............DC0~12.4GHz(0~18GHz)
Working Voltage..............335V max
Withstand Voltage.......... 1000V rms
Contact resistance
Center Contact................≤3mΩ
Outer Contact..................≤2mΩ
Insulation resistance.........≥5000 mΩ
MATERIAL & PLATING
Shell......................Brass ......................Goldplated
Inner conductor............brass .......Goldplated
Insulator .................PTFE
