- Dual Impedance & Broadband Support 50Ω (DC-4GHz) / 75Ω (DC-2GHz) dual impedance options, meeting diverse RF signal transmission requirements.
- Low-Loss & High-Fidelity Signal Transmission Insertion loss ≤0.30dB @1.5GHz; VSWR ≤1.35 (straight @3GHz) / ≤1.45 (right angle @1GHz), minimizing signal reflection and attenuation.
- Ultra-Low Contact Resistance Center contact ≤6mΩ, outer contact ≤1mΩ, ensuring stable conductivity and reliable signal integrity.
- Rugged & Vibration-Resistant Build ≥500 mating cycles; withstands 98m/s² (10g) vibration (10–2000Hz); 8–63N engagement/disengagement force for long-term durability.
- Harsh Environment Compatibility -55~+155°C operating range (PE cable: -40~+85°C); 1000V withstand voltage / 335V working voltage; ≥1000MΩ insulation resistance for industrial reliability.

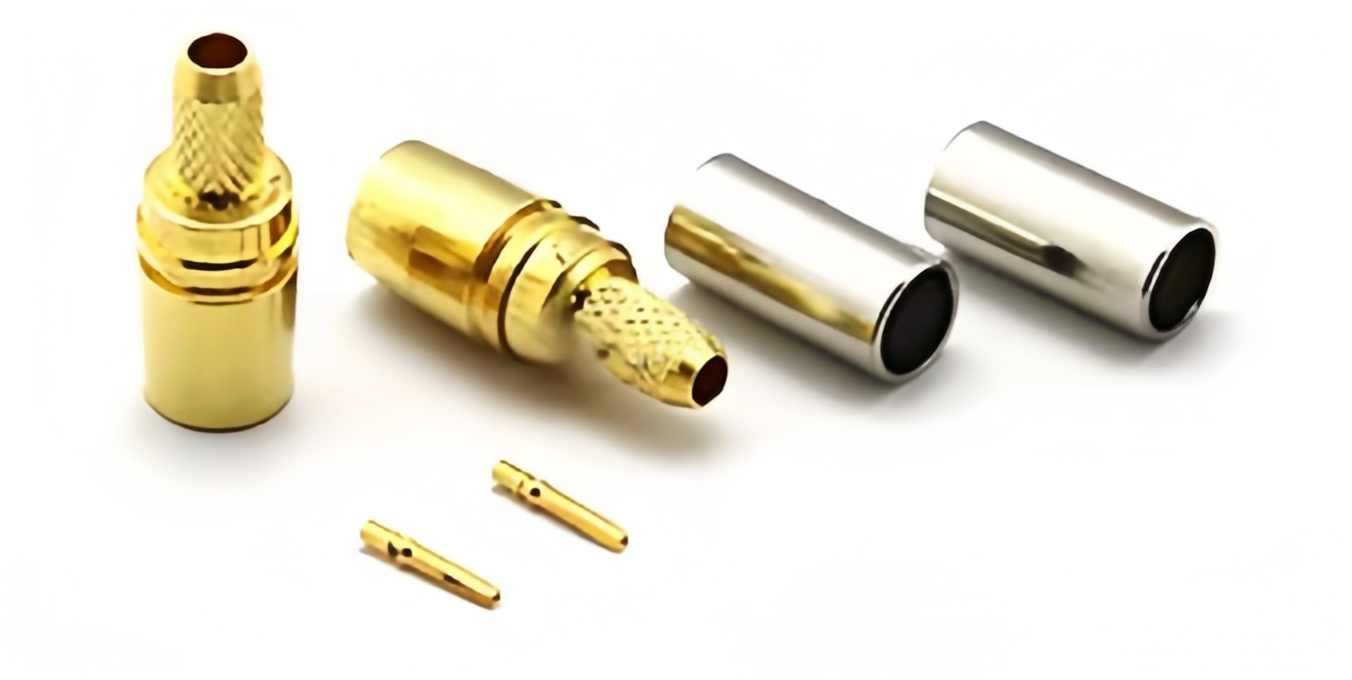

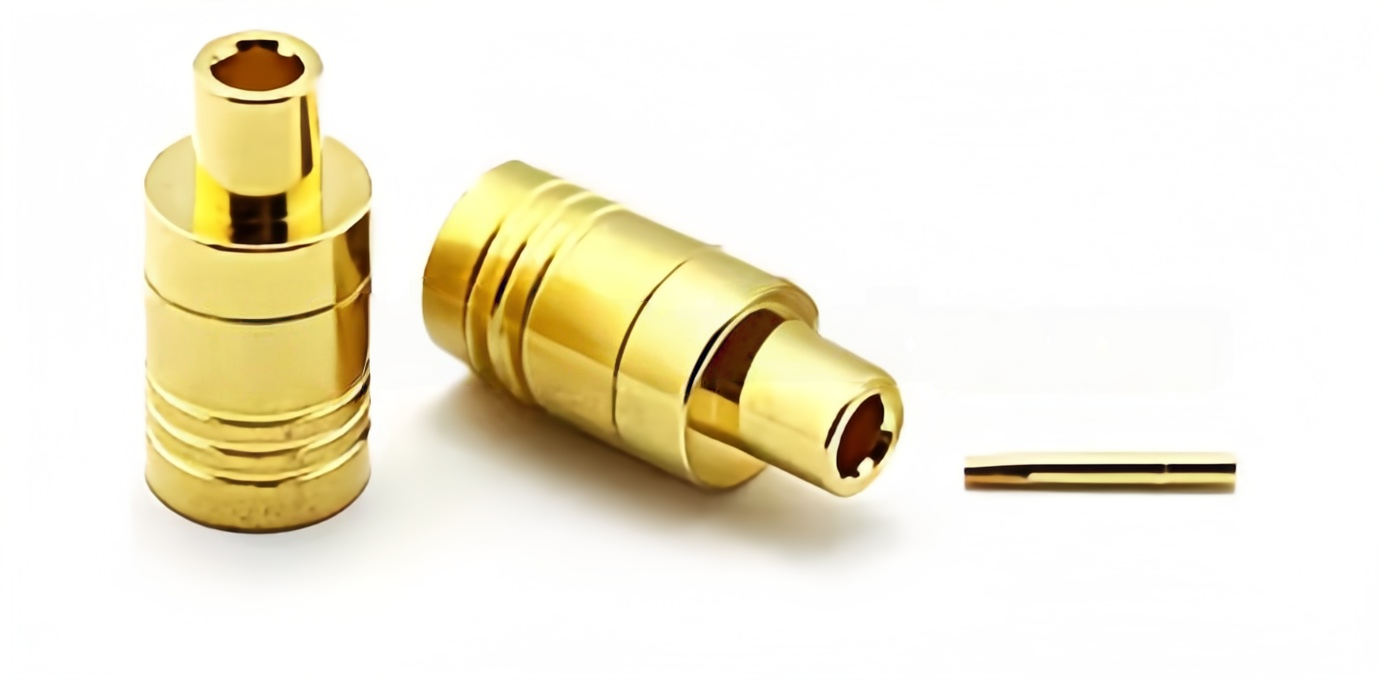

SMB Series Female Crimp Straight RG-174/U, Gold Plated With PTFE
Specifications:
1. All materials are RoHS approved
2.Competitive price and high quality
3.We are able to supply various types of connector according to clients’ requirement
SMB Series Female Crimp Straight RG-174/U, Gold Plated With PTFE
Temperature Range |
-55~+155°C (PE Cable -40~+85°C) |
|
Impedance |
50Ω, 75Ω |
|
Vibration |
98m/S2 (10~2000Hz), 10g |
|
Frequency Range |
DC-4GHz(50Ω), DC-2GHz(75Ω) |
|
Insertion Loss |
0.30dB/1.5GHz |
|
Withstanding Voltage |
1000V r.m.s at sea level |
|
Working Voltage |
335Vr.m.s at sea level |
|
Insulation Resistance |
≥ 1000 MΩ |
|
Durability |
≥ 500(cycles) |
|
Engagement force: |
8~63N |
|
Disengagement force: |
8~63N |
|
Contact resistance: |
Center Contact ≤6mΩ |
|
Outer Contact ≤1mΩ | ||
Voltage Standing Wave Ratio: |
Straight |
≤ 1.35/3GHz |
Right angle |
≤ 1.45/1GHz |
|
