TNC Male Clamp Connector for Rg 213 Rg 214 Cable
TNC Male Clamp Connector - Compatible with RG213/RG214 Cable, RF Coaxial Connector for Signal Transmission
- Overview
- FAQ
- Recommended Products

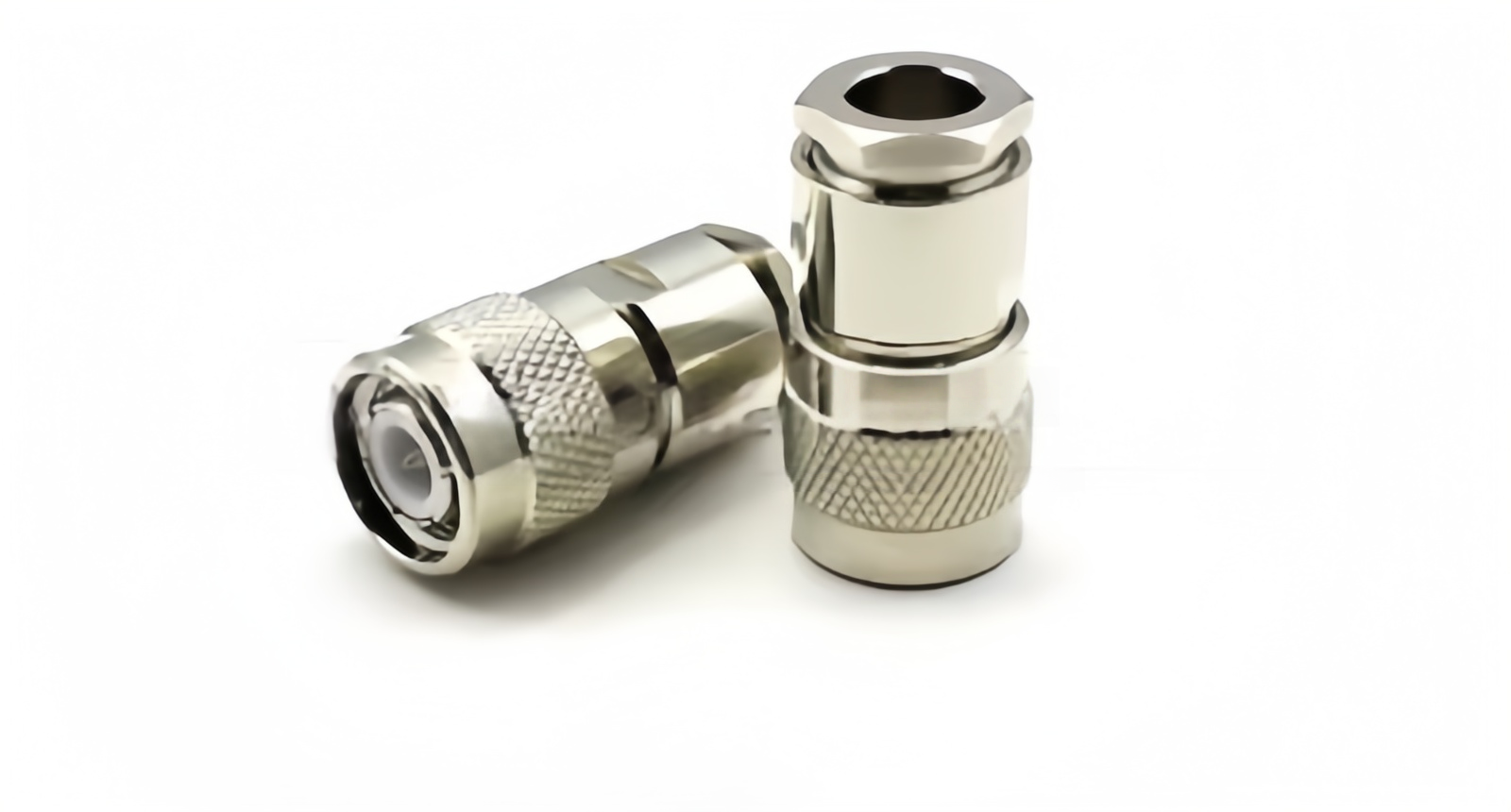

Tnc male clamp connector for rg 213 rg 214 cable
RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/L9/SMA/SMB/MMCX/MCX/OEM)
We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwidetnc clamp WTR240cable connector
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB tnc connector
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/UTNC jack(female) panel clamp connector for WTR240 RG8 WTR600cable rg178 WTR240 rg8 rg402 rg213 rg174 rg58 1/2coaxial cable
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applicationstnc rg8
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
The TNC series products are a kind of whorl joining, it has work width frequently, join reliable, such characteristics as ant-vibration performance is good, Suitable for radio equipment and instrument and join the cable to use.
Tnc male clamp connector for rg 213 rg 214 cable
| Category | Specifications |
|---|---|
| Environmental Performance | Temperature Range: -40~+85°C Vibration Resistance: 100m/s² (10~500Hz) |
| Electrical Performance | Impedance: 50 OHM Frequency Range: DC – 11GHz Working Voltage: 2700V max Break-down Voltage: 4000V rms @ sea level Contact Resistance: ≤0.4 OHM (inner contact); ≤1.5 OHM (outer contact) Average Power: 3KW max Insulation Resistance: ≥10000M OHM VSWR: ≤1.10 |
| Durability | Mating Cycles: ≥500 cycles |
| Material & Plating | Body: Brass (Nickel plated / Alloy plated) Inner Pin: Brass (Gold plated) Resilient Contact: Beryllium Copper (Gold plated) Socket Contact: Beryllium or tin bronze (Gold plated) Insulator: PTFE Crimp Ferrule: Copper alloy (Nickel / Gold plated) O-ring Sealing: Silicone Rubber |
FAQ
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order
Q: Can you guarantee the quality of product?
A: Sure, high quality give us confidence to do business with your company. Long-term cooperation is what we need most instead of short-term cooperation.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you.
Q:How do your company deal with the problem on quality ?
A: We have 20 years experience in this business. High quality and perfect service earn us great reputation. We will have a
detailed analysis of the problem. If our product is unqualified, we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
