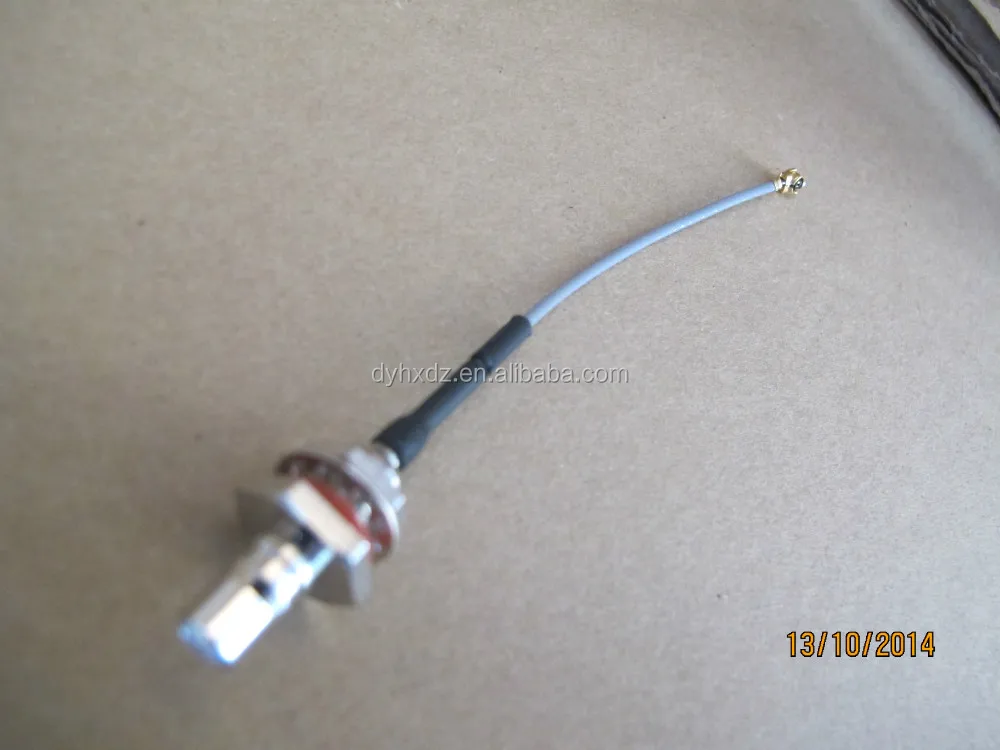

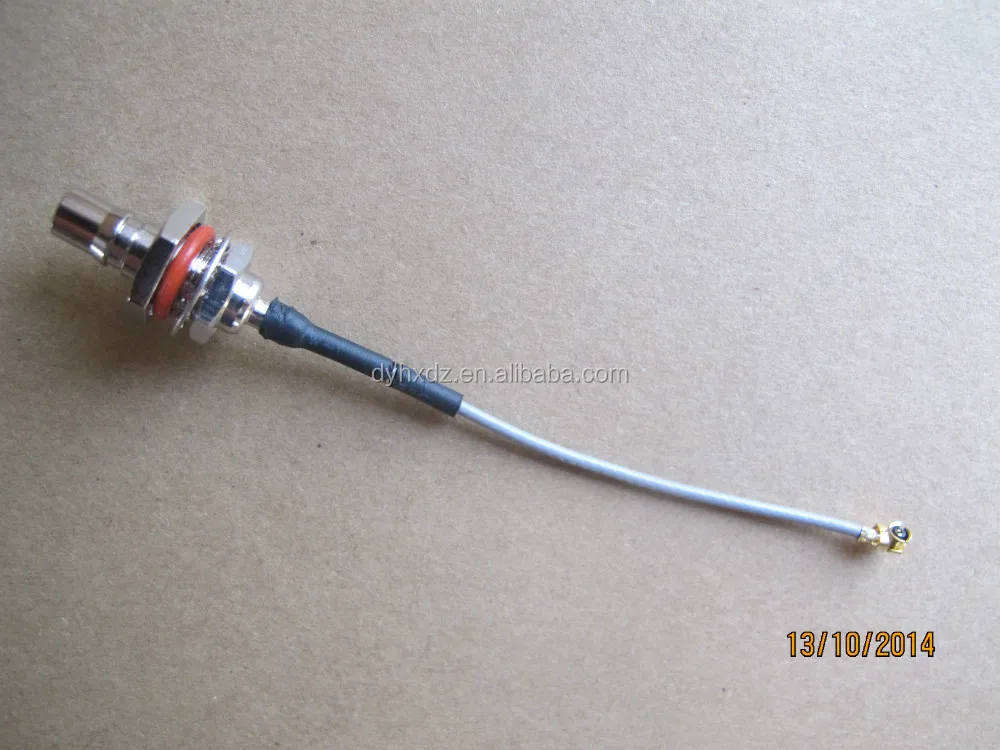

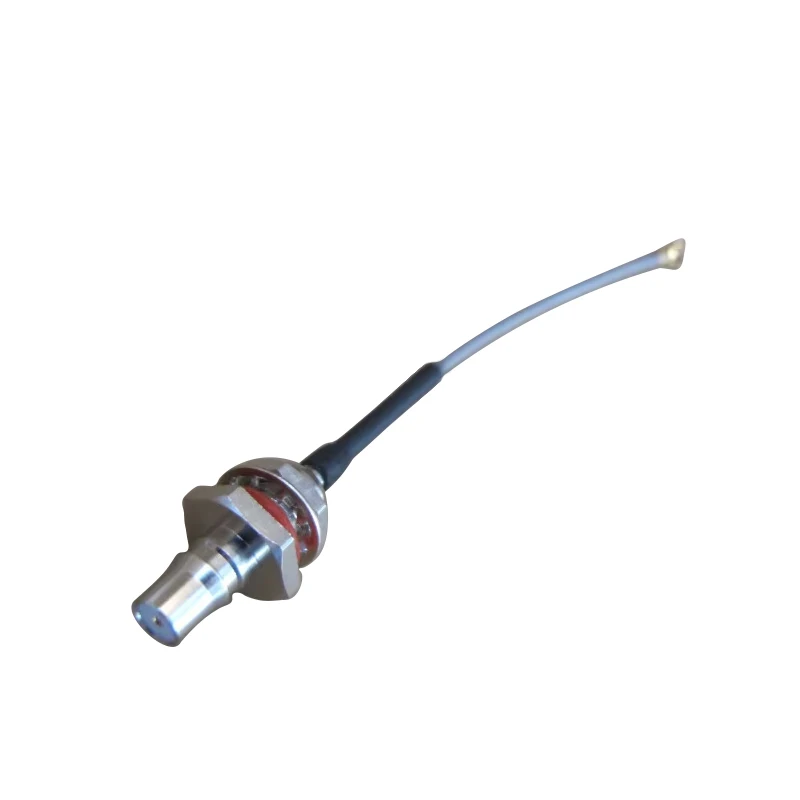

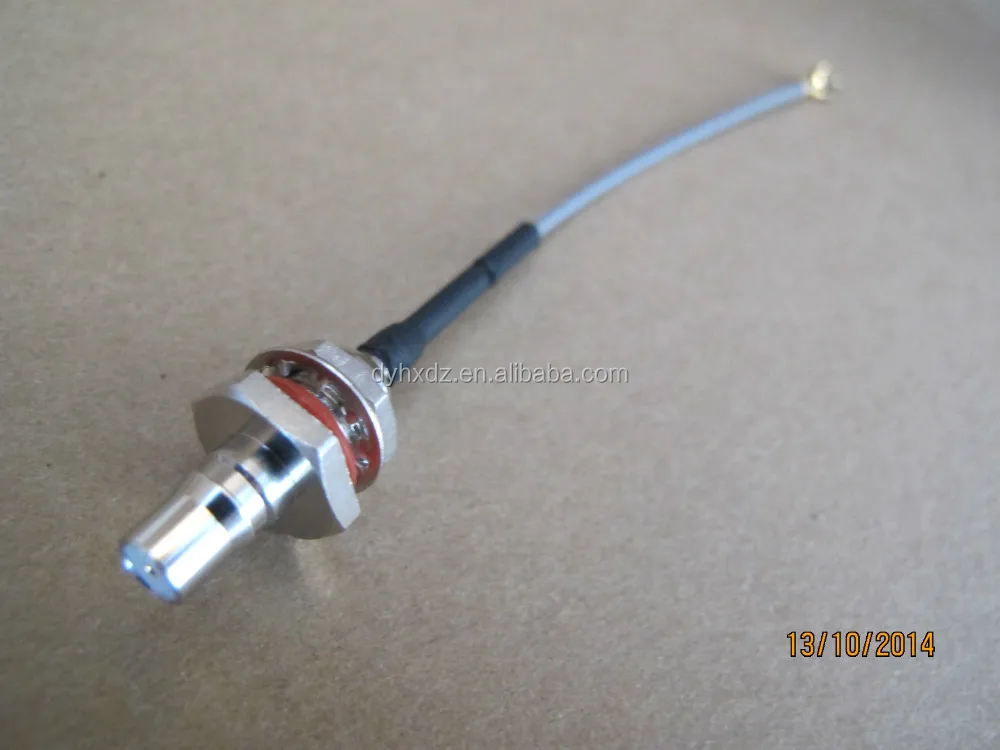

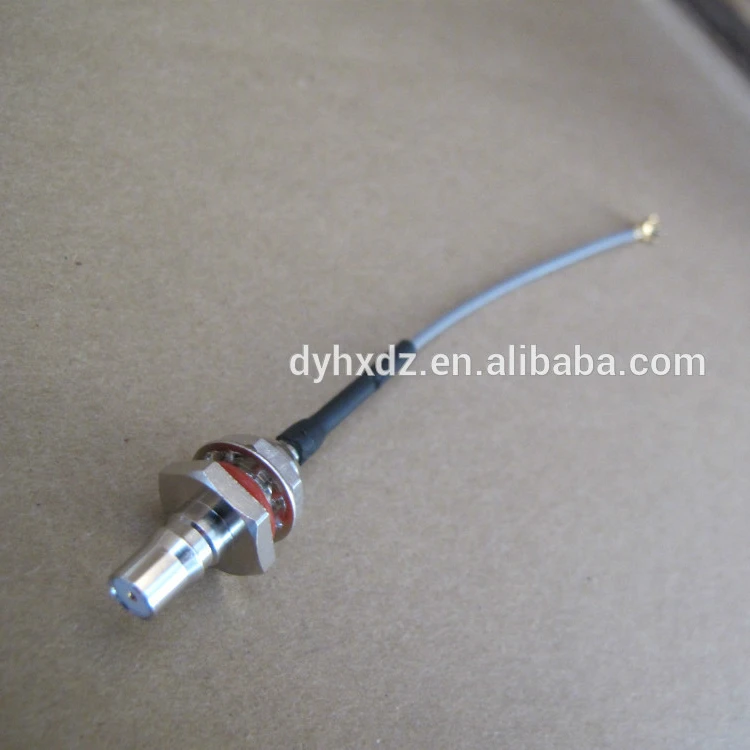

QMA pigtail cable
| Electrical | |
| Impedance | 50 Ω |
| Frequency Range | DC - 6 GHz |

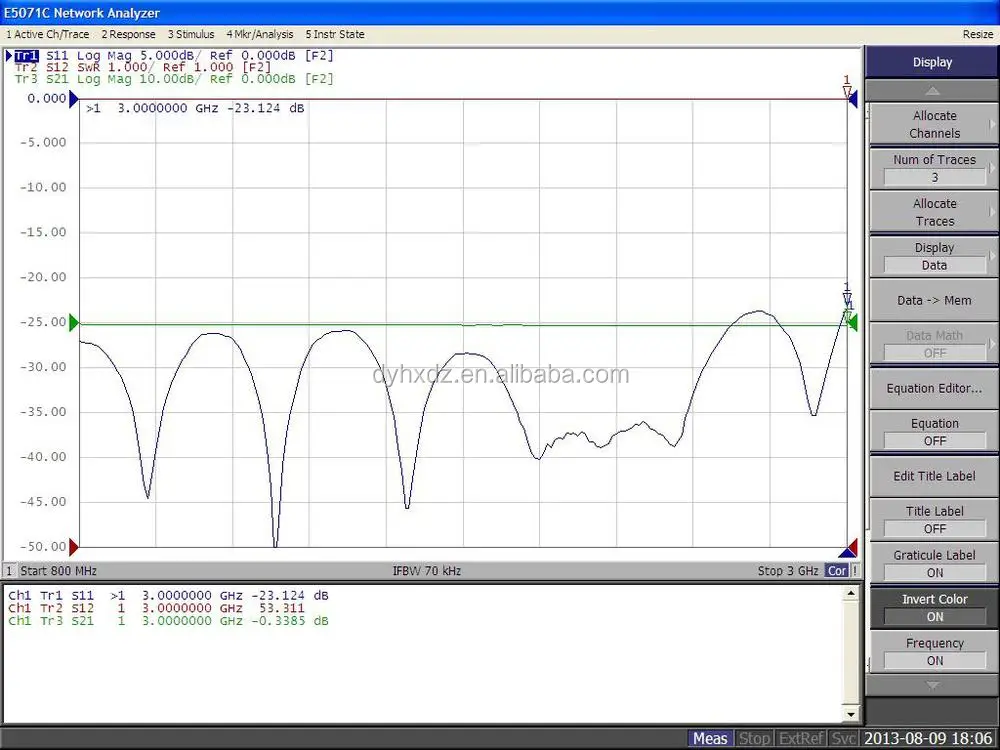

| Return Loss | DC - 3 GHz > 32 dB; 3 - 6 GHz > 25 dB |
| Dielectric Withstanding Voltage | 1,000 V rms, 50 Hz at sea level |
| Working Voltage | < 335 V rms, 50 Hz at sea level |
| Insulator Resistance | > 5,000 MΩ |
| Center Contact Resistance | < 3 mΩ |
| Outer Contact Resistance | < 2.5 mΩ |
| RF Leakage | DC - 3 GHz 80 dB minimum, 3 - 6 GHz 70 dB minimum |
| Mechanical | |
| Engagement Force | 5.6 lbs (25 N) |
| Disengagement Force | 4.5 lbs (20 N) |
| Retention Force for Interface | > 13.5 lb (60 N) |
| Mating Cycles | 100 |
| Distance Between Connectors | .49 inches (12.4mm) minimum |
| Material | |
| Body | White bronze over brass |
| Solder Body | Gold over brass |
| Pin Contact | Gold over brass |
| Socket Contact | Gold over beryllium copper |
| Outer Contact | White bronze over spring bronze |
| Insulator | PTFE |
| Crimp Ferrule | White bronze over copper |
| Environmental | |
| Temperature Range | -40°C to +80°C |
