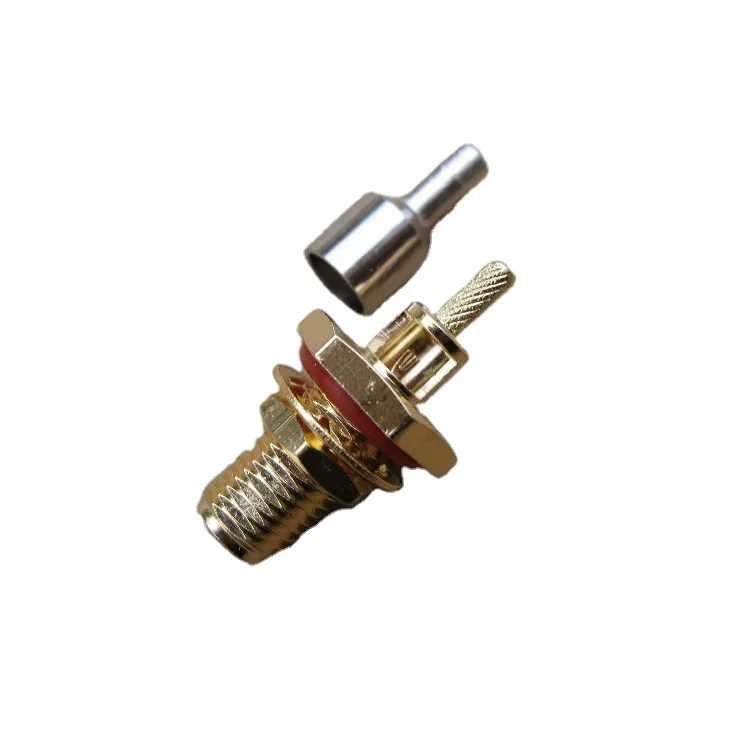

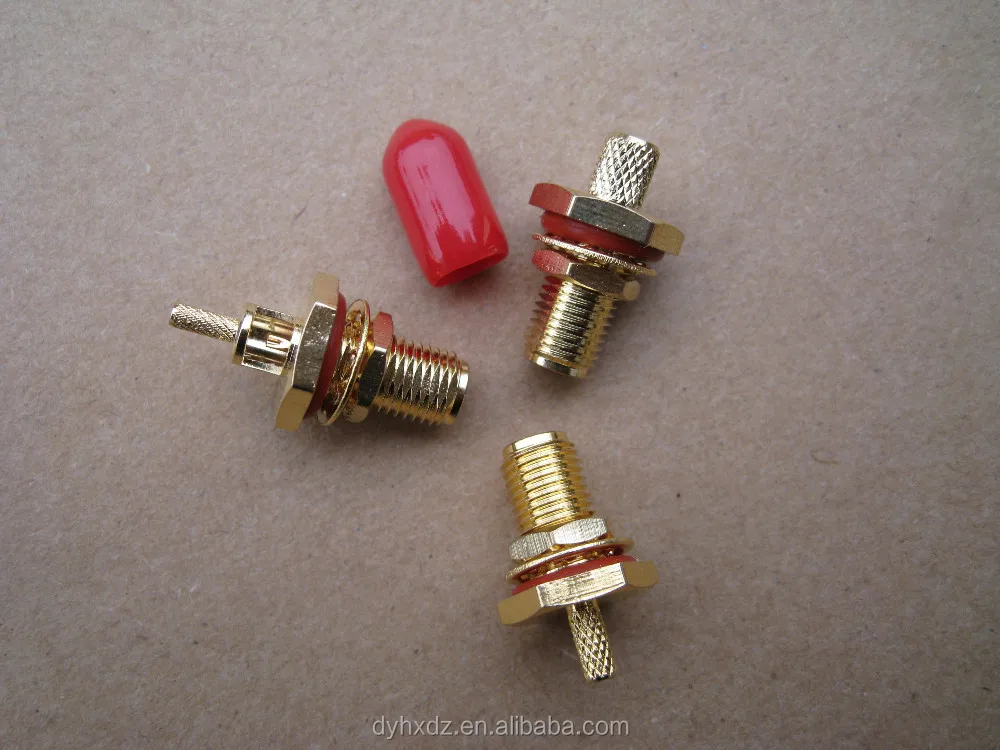

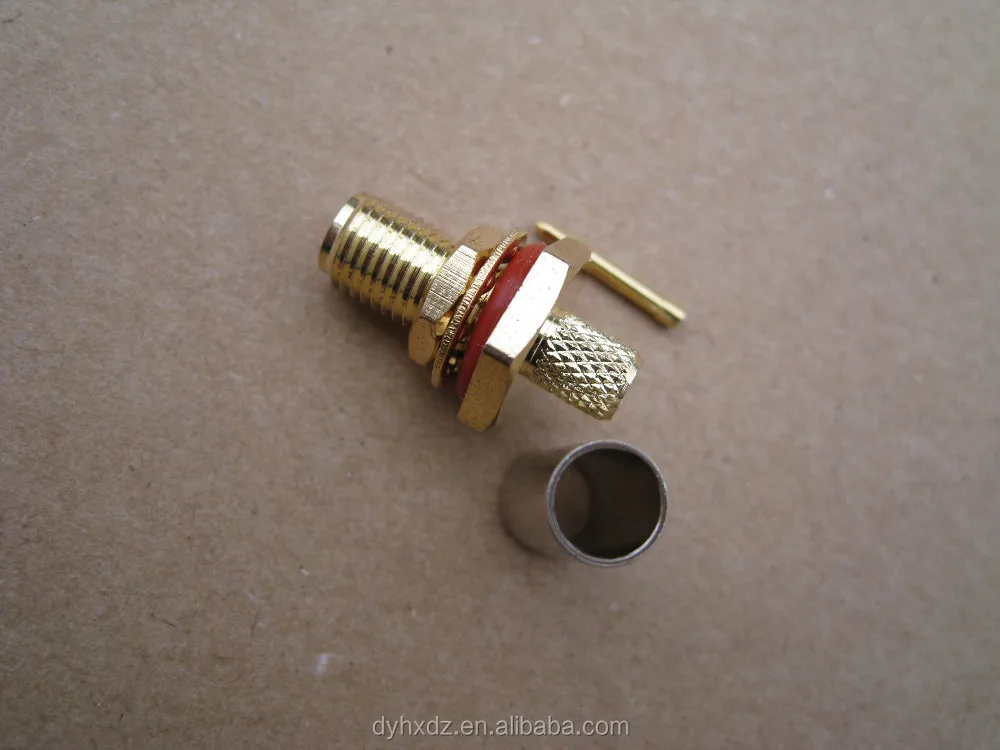

waterproof sma connector
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
waterproof sma connector
| Electric Data | ||
| Characteristic Impedance | 50 ohm | |
| Frequency Range | DC-18GHz | |
| Working Voltage | 335 VRMS(max at sea level) | |
| Dielectric Withstanding Voltage | 1000 VRMS(min at sea level) | |
| VSWR | Straight: ≤1.3 | |
| Contact Resistance | Inner: 3 milliohms(max) | |
| Outer: 2 milliohms(max) | ||
| Insulation Resistance | 5000 megohms(min) | |
| Mechanical Data | ||
| Durability Mating | 500 Cycles min. | |
| Material Data | ||
| Connector Parts | Materials | Plating Finish |
| Body | Brass or SS | Gold or passivated |
| Female Pin | Phosphor Bronze | Gold |
| Insulators | PTFE | N/A |
| Environmental Data | ||
| Temperature Range | -65~+165℃ | |
Interface
IEC 60169-16;MIL-C-39012;CECC-22210
Electrical
Characteristic Impedance
50ohm
Frequency Range
DC-11GHz
VSWR
≤1.15@DC-3000MHz
Insertion Losss
≤0.24dB(6GHz)
3rd Order IM (PIM3)
—
Working Vlotage
1000V RMS,50Hz,at sea level
Dielectric Withstanding Voltage
≥2500V RMS,50Hz,at sea level
Dielectric Resistance
≥5000MΩ
Contact Resistance
Center Contact ≤1mΩ
Outer Contact ≤0.25 mΩ
Mating
—
Mechanical
Durability
Mating cycles ≥500
Material and Plating
Parts Name
Material
Plating
Body
Brass
Tri-Metal(CuZnSn)or Ni
Insulator
PTFE
—
Inner Conductor
Phosphor Bronze
Au
Coupling Nut
Brass
Ni
Gasket
Silicone Rubber
—
Cable Clamp
Brass
Ag
Ferrule
—
—
Environmental
Operating Temperature
45 ℃-85 ℃
Weatherproof Rate
IP67
RoHs (2002/95/EC)
Compliant by exemption
Suitable Cable Family
LMR400/RG213/RG8/CNT400 cable
