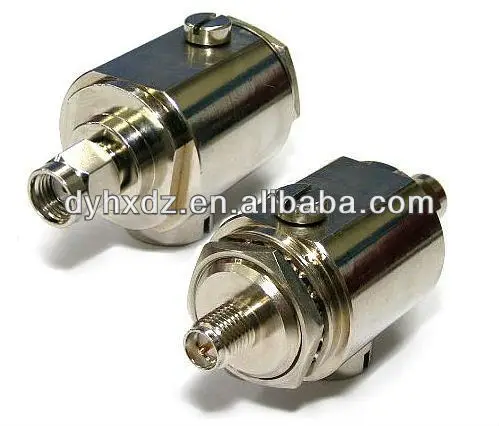

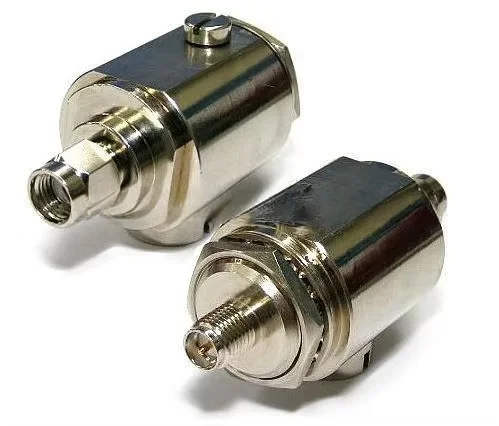

0-6Ghz N SMA TNC BNC 7/16 Type Coaxial Lightning Surge Protector
•FREQUENCY RANGE: 0-6GHz
•CONNECTOR: N PLUG TO N JACK B/H
•IMPEDANCE: 50Ω
•V.S.W.R.: <1.3:1
•INSERTION LOSS: 0.6dB
•MAXIMUN HANDLING POWER: 10W
•INSULATION RESISTANCE: DC 100V MORE THAN 50M Ω
•D.C. DISCHARGE VOLTAGE: DC 230V ±20%
•INITIAL IMPULSE WAVE DISCHARGE VOLTAGE: less than 700V 1KV /μ sec
•RATED IMPULSE WAVE DISCHARGE: 10KA 8/20 μ sec 5 times
•WORKING TEMPERATURE: -30°c ~ +85°c

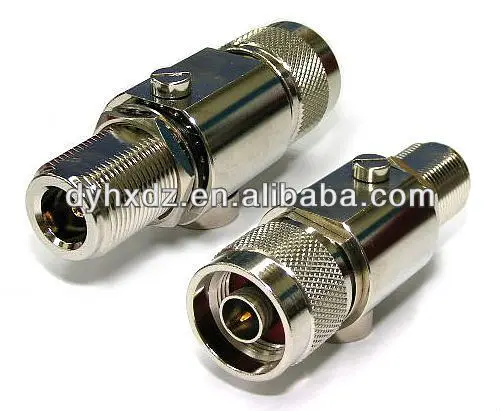

| N Surge Protector |

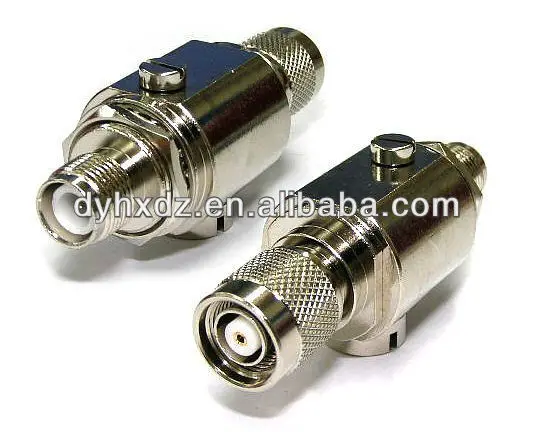

| TNC Surge Protector |
| N Surge Protector |
