Huaxing Factory N Male TNC Plug Connector RF Copper Contact DC-6GHz TC-600-NMH-X Tri-alloy Body Under 1.15 VSWR
Spu:
1601253210925
- Overview
- Recommended Products
Factory N male and TNC male for LMR600 or CNT600 connector EZ-600-NMH-X plug

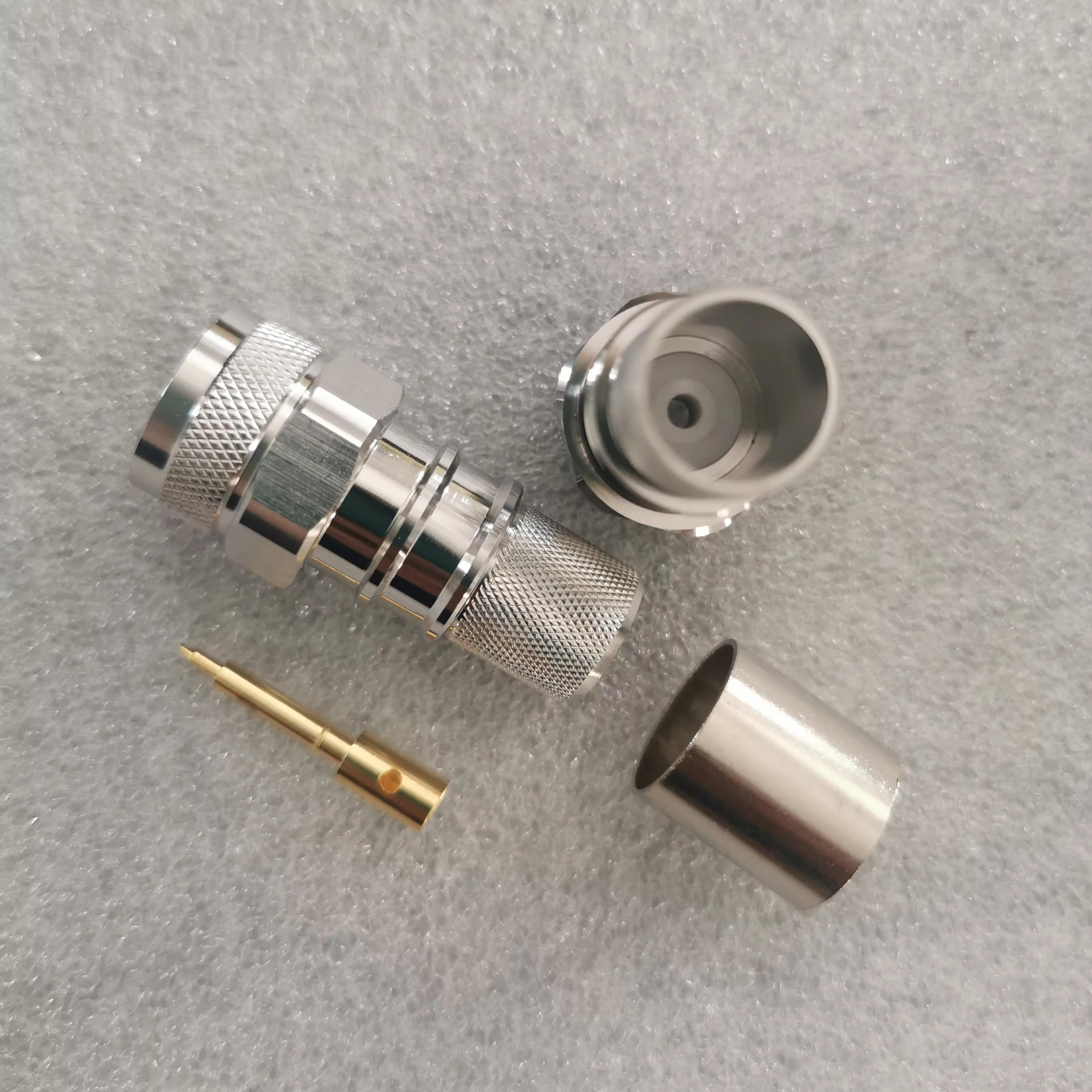

TC-600-NMH-X

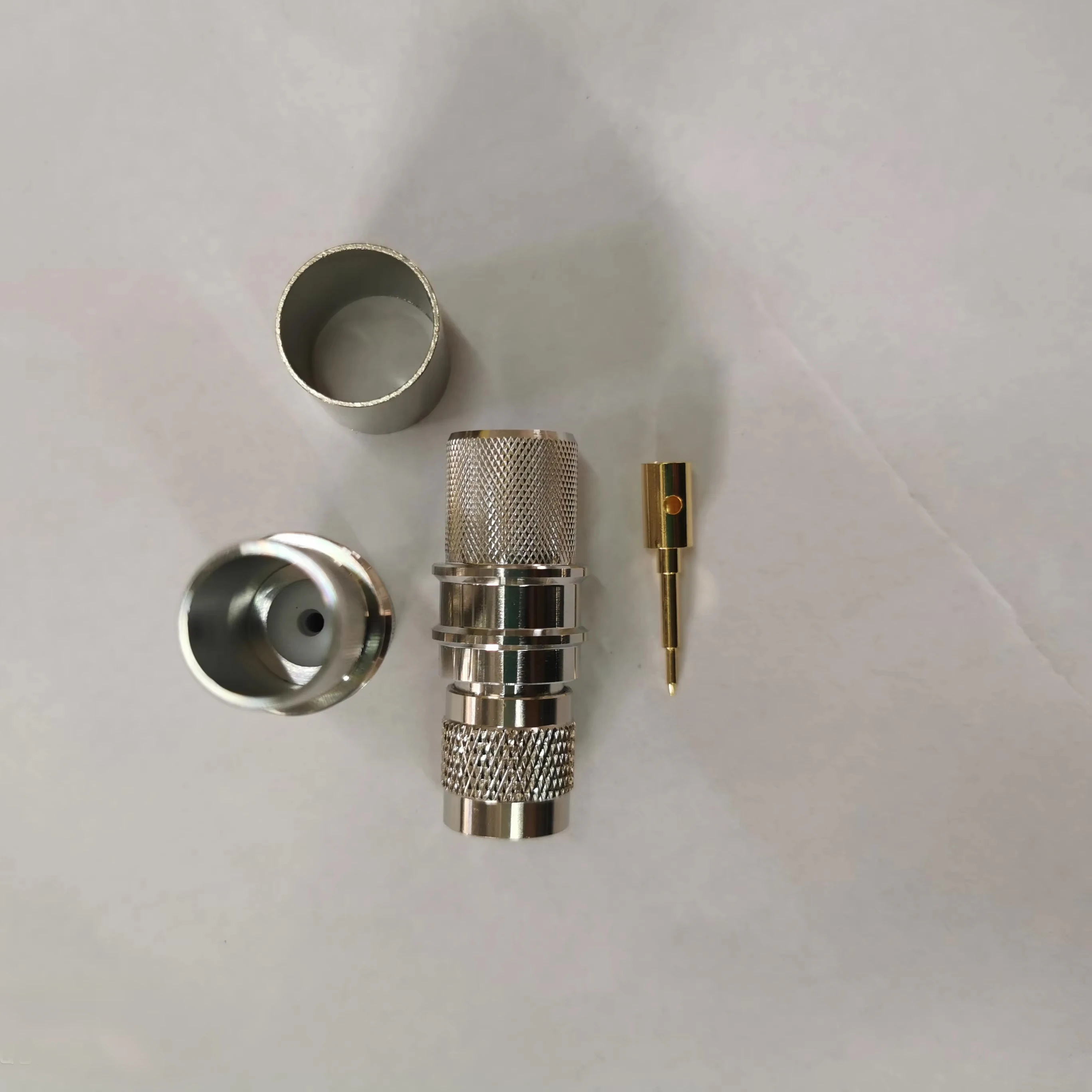

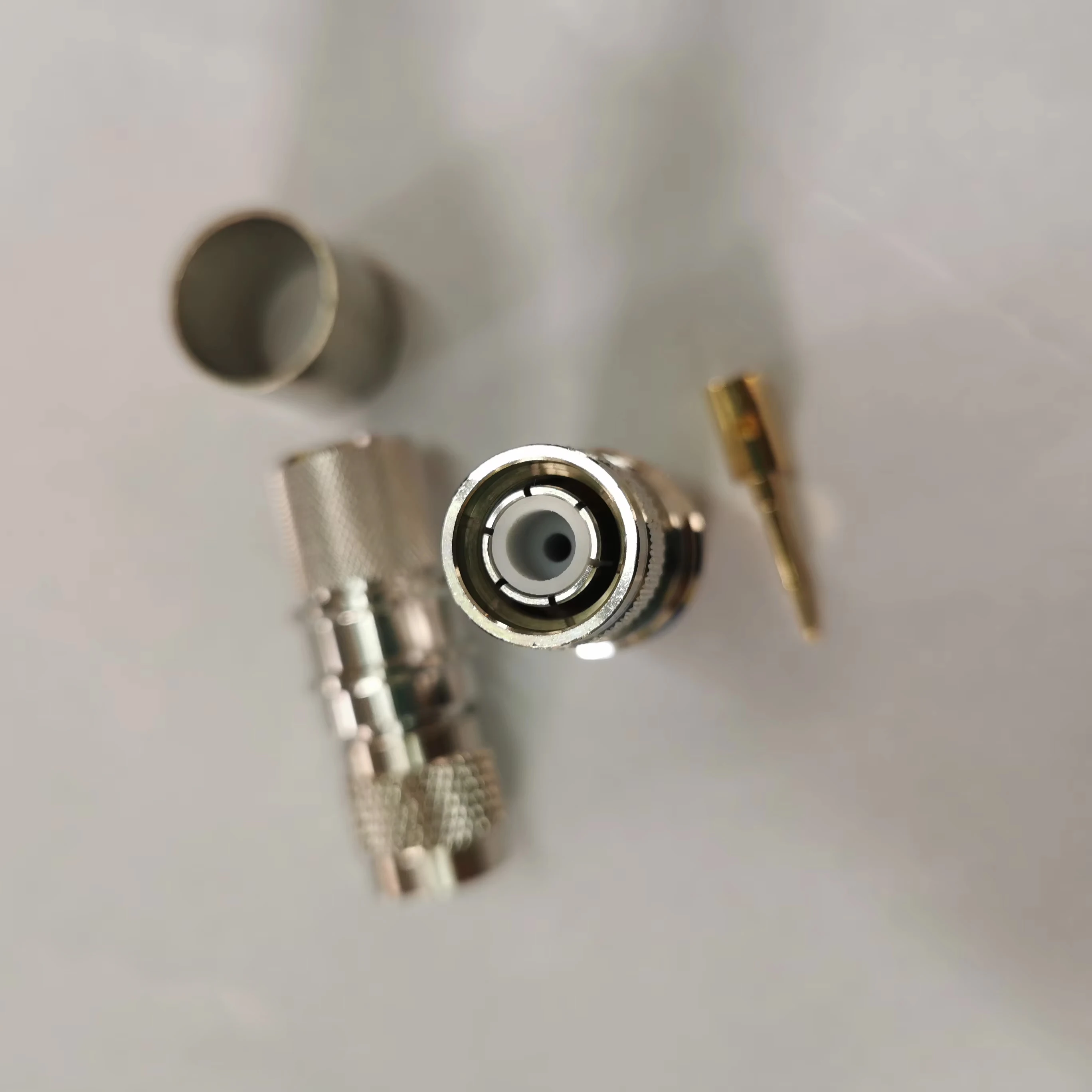

TC-600-TMH-X
| Electrical | |
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-6GHz |
| VSWR | 1.15 |
| Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level |
| Dielectric Resistance | ≥5000MΩ |
| PIM ( @2-tonex20w) | ≤- |
| Insertion Loss | ≤0.1 |
| Mechanical | |
| Durability | Mating cycles ≥500 |
| Environmental | |
| Temperature Range | -40℃~+85℃ |
| Rosh-compliance | Full ROHS compliance |
| Salt-fog test | 96h |
| Material and plating | ||
| Description | Material | Plating |
| Body | Brass | Tri-alloy |
| Insulator | PTFE | --- |
| Center conductor | Phosphor bronze | Ag |
| Other | Brass | Tri-alloy |
Please contact us immediaterly if you are interested!
