SMA

 >  SMA

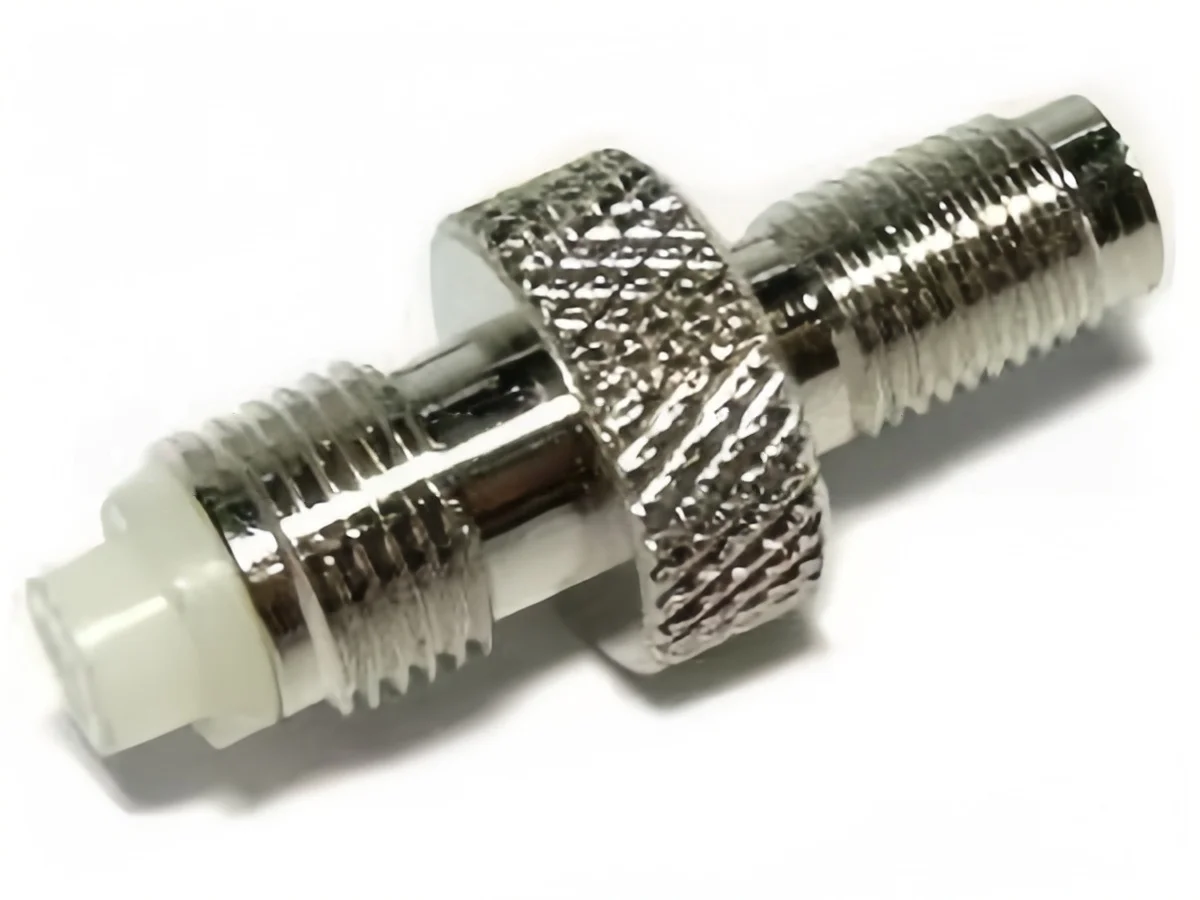

FME Jack Female to Sma Jack Female Connector Adapter

Spu:
60243772221
  • Overview
  • Recommended Products

Specifications

1.reasonable price

2.manufacturer factory



3. samples are free





   FME female to SMA female Connector Adaptor
Model No. fme/sma
Interface IEC 60169-15
Electrical
Characteristic Impedance 50ohm
Frequency Range                                             DC-3GHz
VSWR           ≤1.15@DC-3000MHz
Insertion Loss ≤0.10dB
Durability Mating cycles ≥500
Material and Plating
Parts Name Material Plating
Body Brass NI
Insulator PTFE
Center   Conductor Phosphor Bronze  Au
Coupling Nut Brass Ni
Gasket Silicone Rubber
Environmental
Operating Temperature -40℃-85 ℃
Weatherproof Rate      IP68
