1.0/2.3 B/H Female for BT3002 Flex3,CC4 Jack , RF Connectors

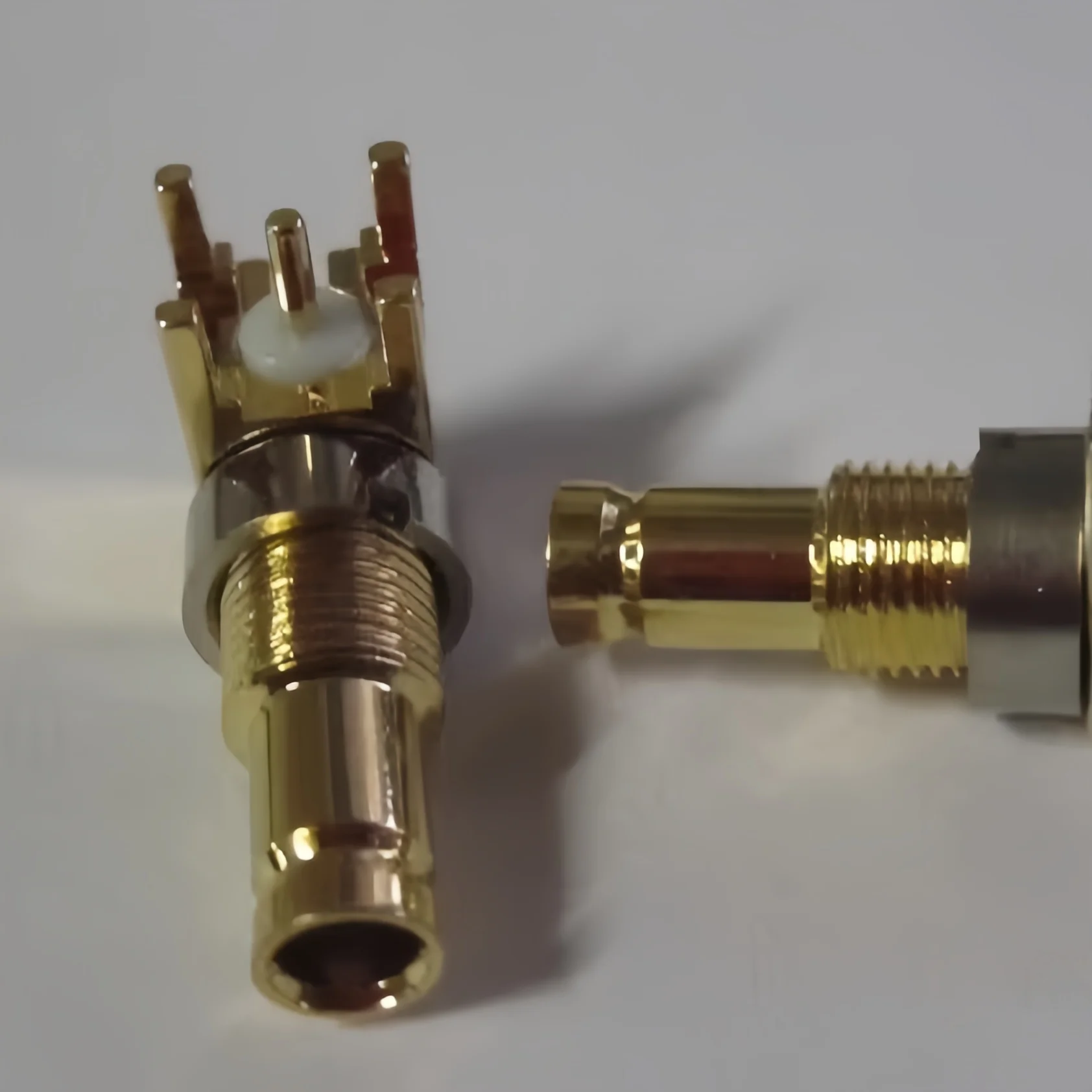

1.0/2.3 B/H Female Jack - Fits BT3002 Flex3 CC4 Cables, Low VSWR RF Connection for Communication Devices
- Overview
- FAQ
- Recommended Products
- Series FME rf coaxial connector are thread coupling coaxial connectors.
- FME have the excellent performances of small size,easy connect/disconnect.
- Straight connectors are available for cable diameters from approximately 2.6mm to 5.5mm and also straight and right angle adapters other coaxial connectors series.
- Temperature range: -65 - +155°C
- Characteristic impedance: 50 ohms
- Frequency range:0-3GHz
-
Contact resistance:Working voltage: 500V (rms)
- Center conductor: ≤10m ohms
- Outer conductor: ≤5m ohms
- VSWR: ≤1.12
- Insulation resistance: ≥5,000M ohm
- Dielectric withstanding voltage: 1000V (rms)
- Durability: 500 times

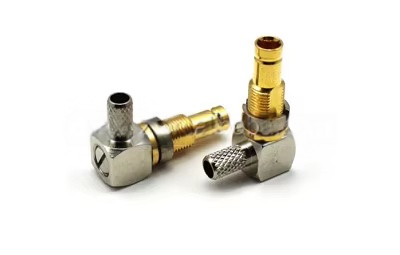

1.0/2.3 R/H female for BT3002 flex3,CC4 B/H female for BT3002 flex3, RF connectors
Core Selling Points: 1.0/2.3 R/H/B/H Female RF Connector
| Category | Subcategory | Specifications |
|---|---|---|
| Basic Information | Model Number | 1.0/2.3-C-J3002 |
| Interface Standards | IEC 60169-29; CECC 22230; DIN47297 | |
| Electrical Performance | Characteristic Impedance | 75 Ω |
| Frequency Range | DC - 4 GHz | |
| VSWR | ≤1.20 @ DC - 1000 MHz | |
| 3rd Order IM (PIM3) | — | |
| Working Voltage | 350V RMS, 50Hz (at sea level) | |
| Dielectric Withstanding Voltage | 750V RMS, 50Hz (at sea level) | |
| Dielectric Resistance | ≥1000 MΩ | |
| Center Conductor Retention Force | ≥0.2 N | |
| Contact Resistance | Center Contact: ≤4 mΩ; Outer Contact: ≤2.5 mΩ | |
| Mechanical Performance | Durability | Mating cycles ≥500 |
| Material & Plating | Body | Brass, Nickel (Ni) plated |
| Insulator | PTFE, No plating | |
| Inner Conductor | Phosphor Bronze, Gold (Au) plated | |
| Resilient Contact | Phosphor Bronze, Gold (Au) plated | |
| Coupling Nut | Brass, Nickel (Ni) plated | |
| Gasket | —, — | |
| Cable Clamp | —, — | |
| Ferrule | Annealed Copper, Nickel (Ni) plated | |
| Environmental Performance | Operating Temperature | -45 °C ~ +85 °C (Note: Corrected possible typo "_45 °C" to "-45 °C") |
| Weatherproof Rate | IP67 | |
| RoHS Compliance | Compliant by exemption (2002/95/EC) | |
| Compatibility | Suitable Cable Family | BT3002 and flex3 cable |
Available in various kinds of cable assemblies
Customized lengths are accepted
If you can not find the exact products you want in this page, please send enquiry to us, you will get an immediate reply within 1 hour at our working time, thanks for your visiting!~
