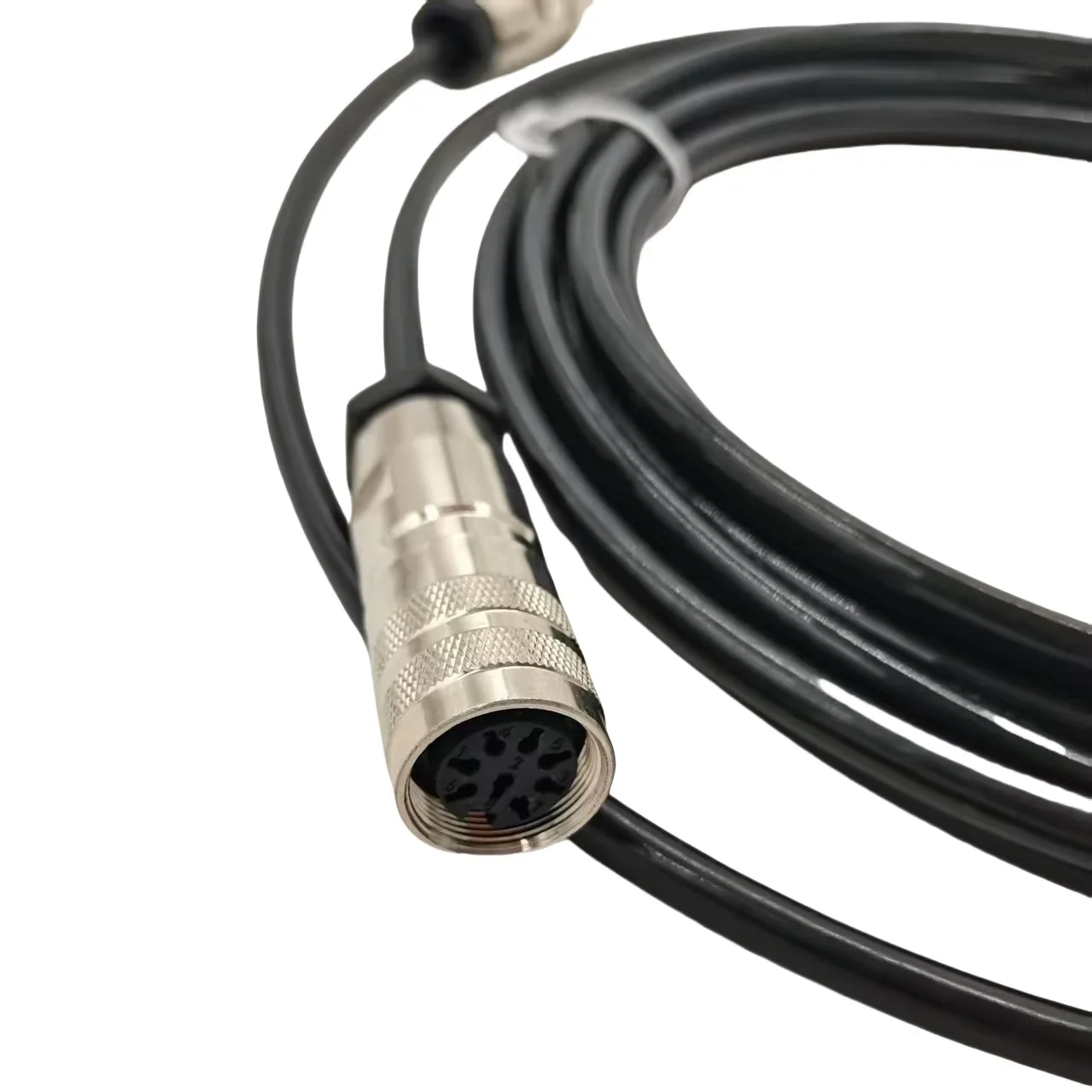

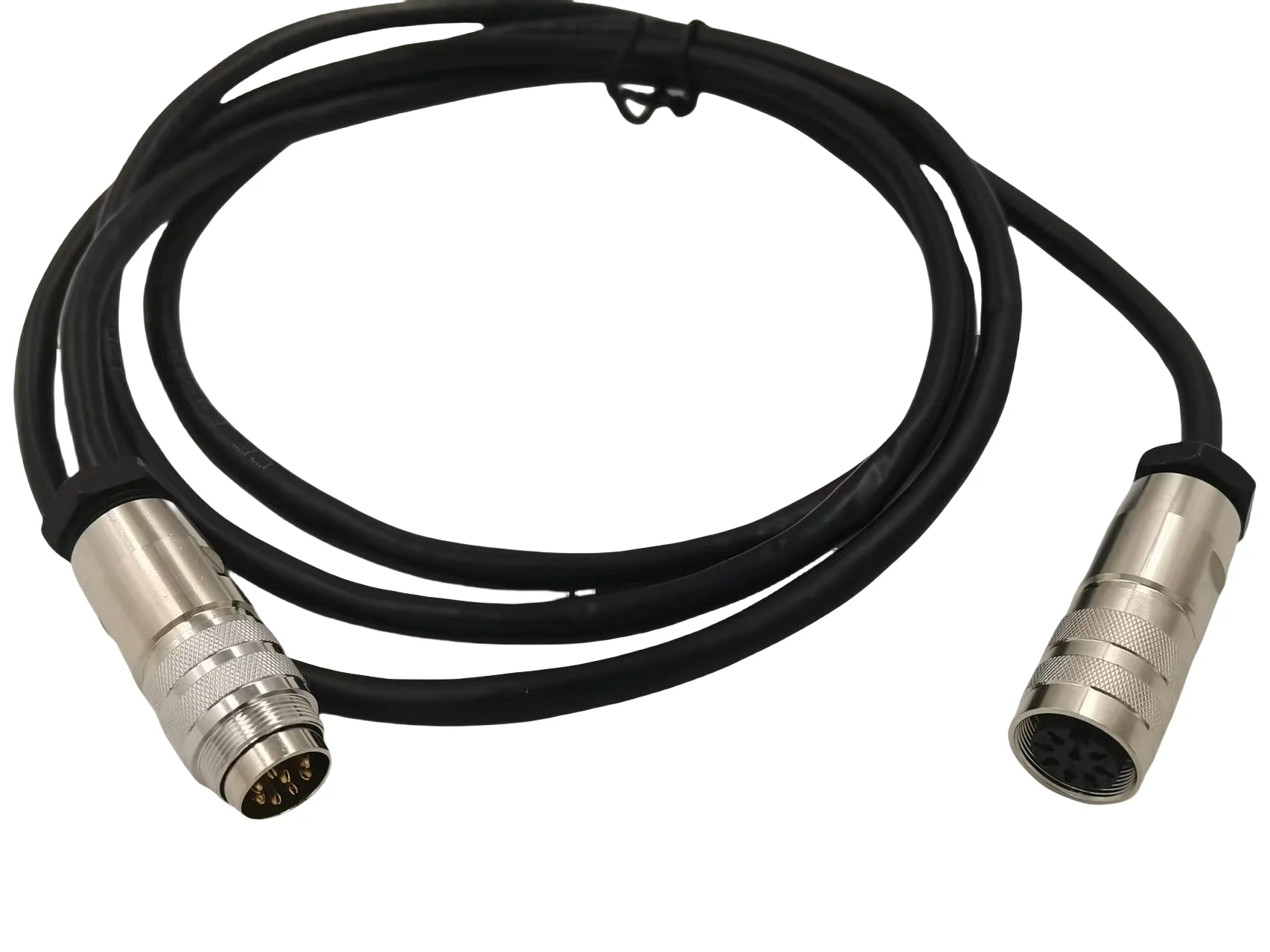

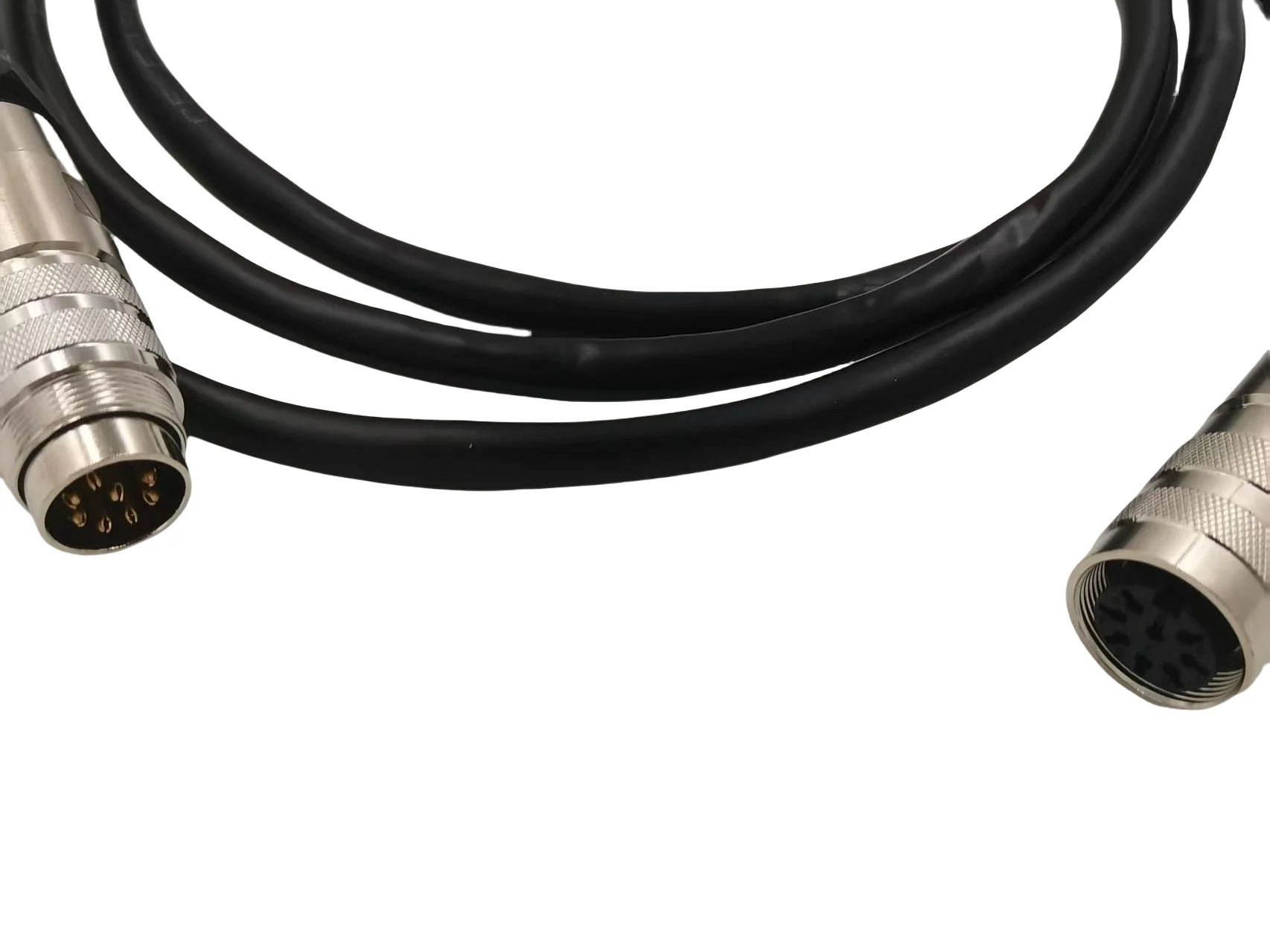

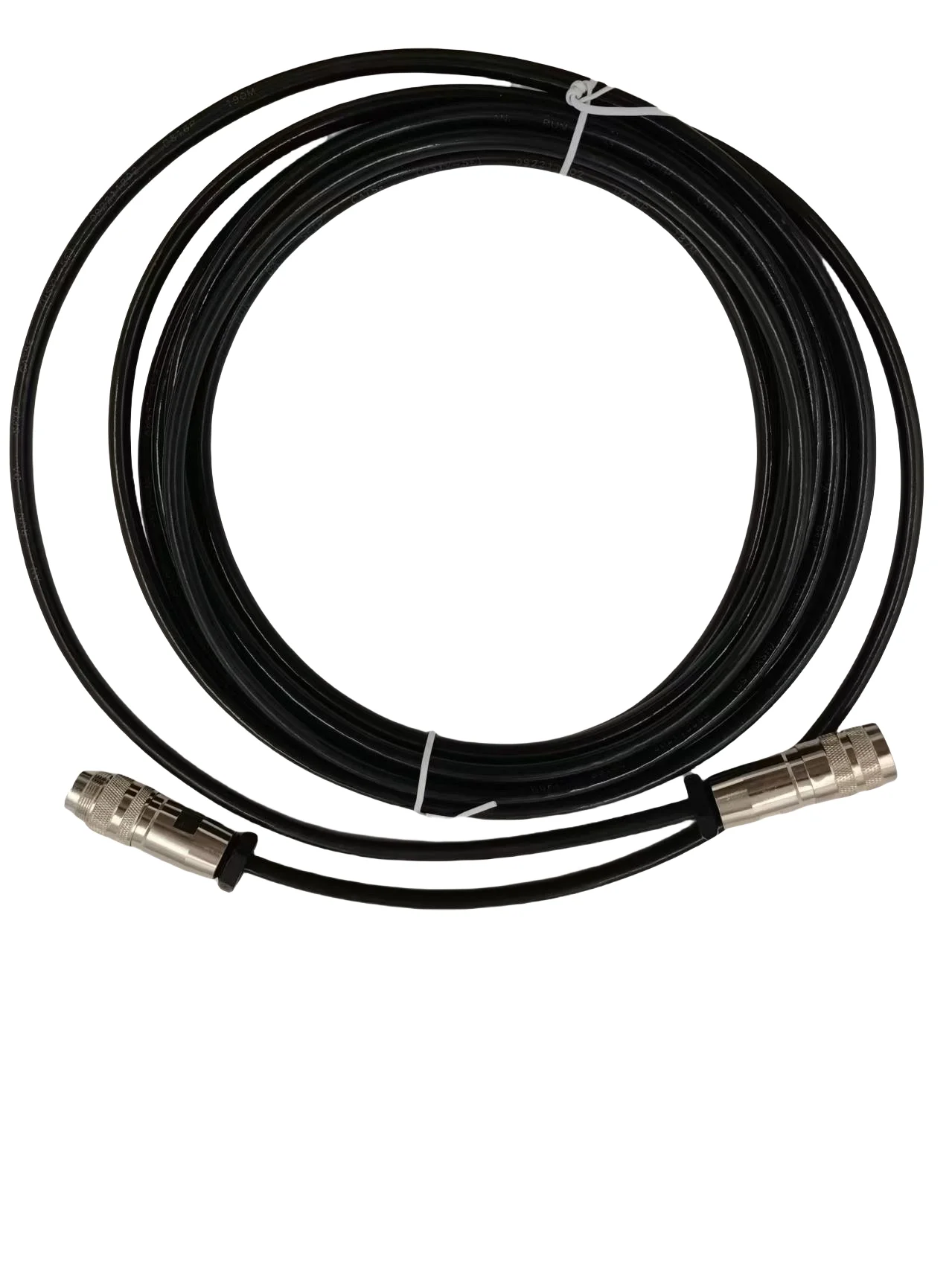

3M AISG Female to Male AISG Cable RET CABLE
This AISG multiwire cable is used to connect the Remote Radio Unit with the Remote Control Unit and
to transmit the base station signals for controlling the RET antenna and offers protection to IP67.
- Overview
- FAQ
- Recommended Products
3M AISG Female to Male AISG Cable RET CABLE
3M AISG Female to Male AISG Cable RET CABLE
Category |
Details |
|---|---|
Connectors |
Connector 1: 8-Pin Female Connector (compliant with IEC 60130-9)Connector 2: 9-Way D-Sub Waterproof Male ConnectorContact Type: Fully soldered contactsConnector Flammability Rating: UL94V-0 |
Cable Specifications |
Cable Structure: 1 x Twisted Pair (0.25mm²) + 2 x Power Cores (0.75mm²) + 1 x Ground Core (0.75mm²)Outer Sheath: Black PUR, Halogen Free, Flame Retardant, UV StableOverall Cable Diameter: 8mmSingle Bend Radius: Min. 60 mmMultiple (Repeat) Bend Radius: Min. 120 mm |
Electrical Parameters |
Rated Current: 5AApplication: Multiwire Power Supply and Control for Remote Electrical Tilt (RET) systems |
Product Variations (IP67 Sealing Design) |
Variation 1 (RETD/): Rectangular formed O-ring for IP67 seal (seals directly against mating half)Variation 2 (RETK/): Skirt design for IP67 seal (accommodates raised mating half) |
Environmental & Protection |
Protection Class: IP67 (when mated)Temperature Range: -40°C to +80°CRelative Humidity: Up to 100%Application Scene: Remote Electrical Tilt (RET) systems (indoor/outdoor telecom deployments) |
Assembly Length Note |
Where marked "L", refer to paragraph 6 for assembly length in metres. |
Other Notes |
Cable Features: Halogen free, flame retardant and UV stable.Application: Remote Electrical Tilt (RET) multiwire power supply and control. |
