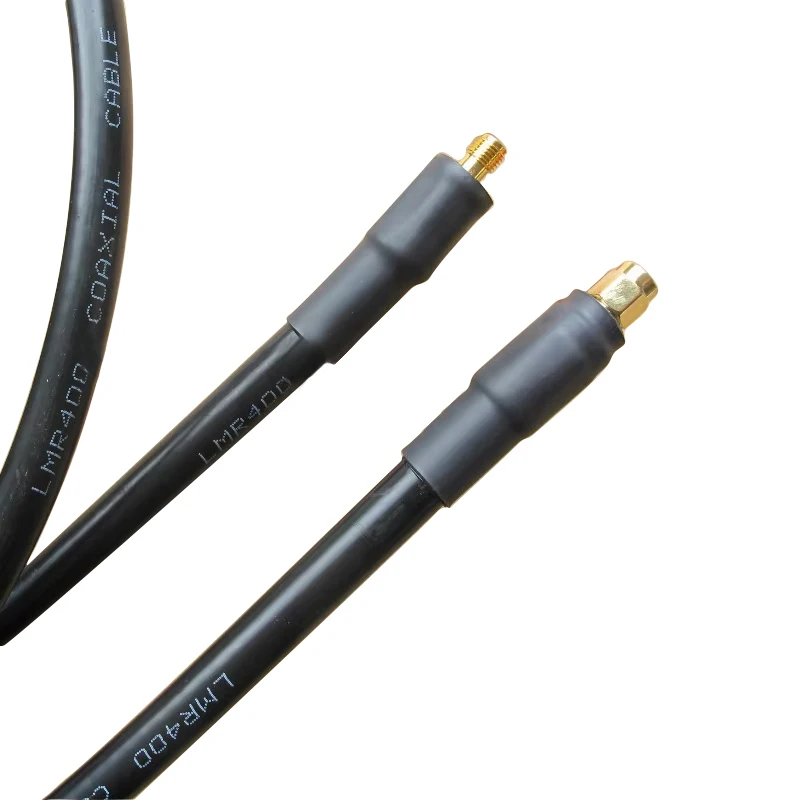

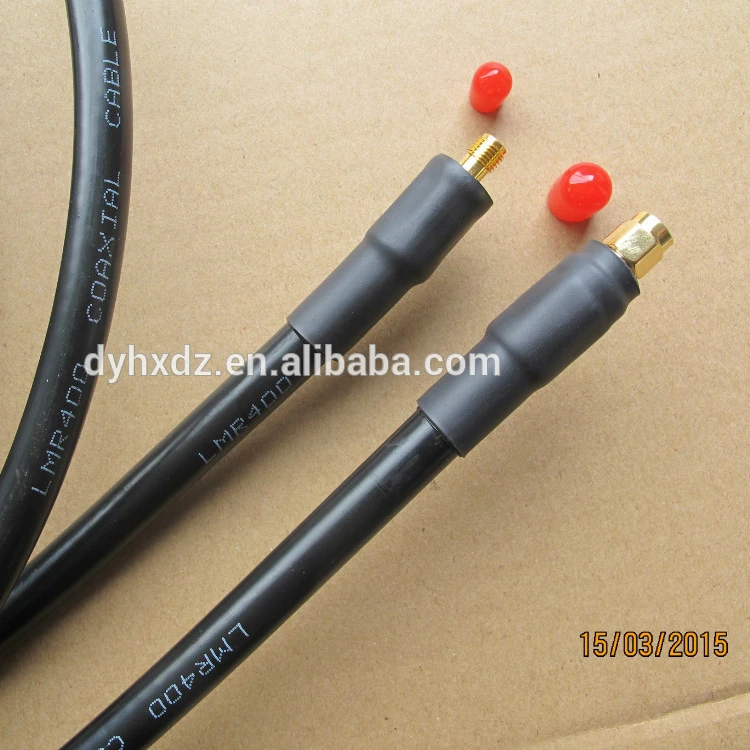

CNT400 LMR400 Cable Assembly with RP for SMA Female to RP for SMA Male Connectors
Spu:
60193194194
- Overview
- Recommended Products
RP SMA MALE TO RP SMA FEMALE FOR CNT400 LMR400 RG8
WIFI AP CABLE
0.5m
3M
5M
10M
15M
30M
1/4SCF RG402 RG405 3/8SCF 1/2SCF CABLE
| Electrical | |
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-6GHz |
| VSWR | 1.15 |
| Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level |
| Dielectric Resistance | ≥5000MΩ |
| PIM ( @2-tonex20w) | ≤- |
| Insertion Loss | ≤0.3 |
| Mechanical | |
| Durability | Mating cycles ≥500 |
| Environmental | |
| Temperature Range | -40℃~+85℃ |
| Rosh-compliance | Full ROHS compliance |
| Salt-fog test | 96h |
| Material and plating | ||
| Description | Material | Plating |
| Body | Brass | Tri-alloy |
| Insulator | PTFE | --- |
| Center conductor | Phosphor bronze | Ag |
| Other | Brass | Tri-alloy |
