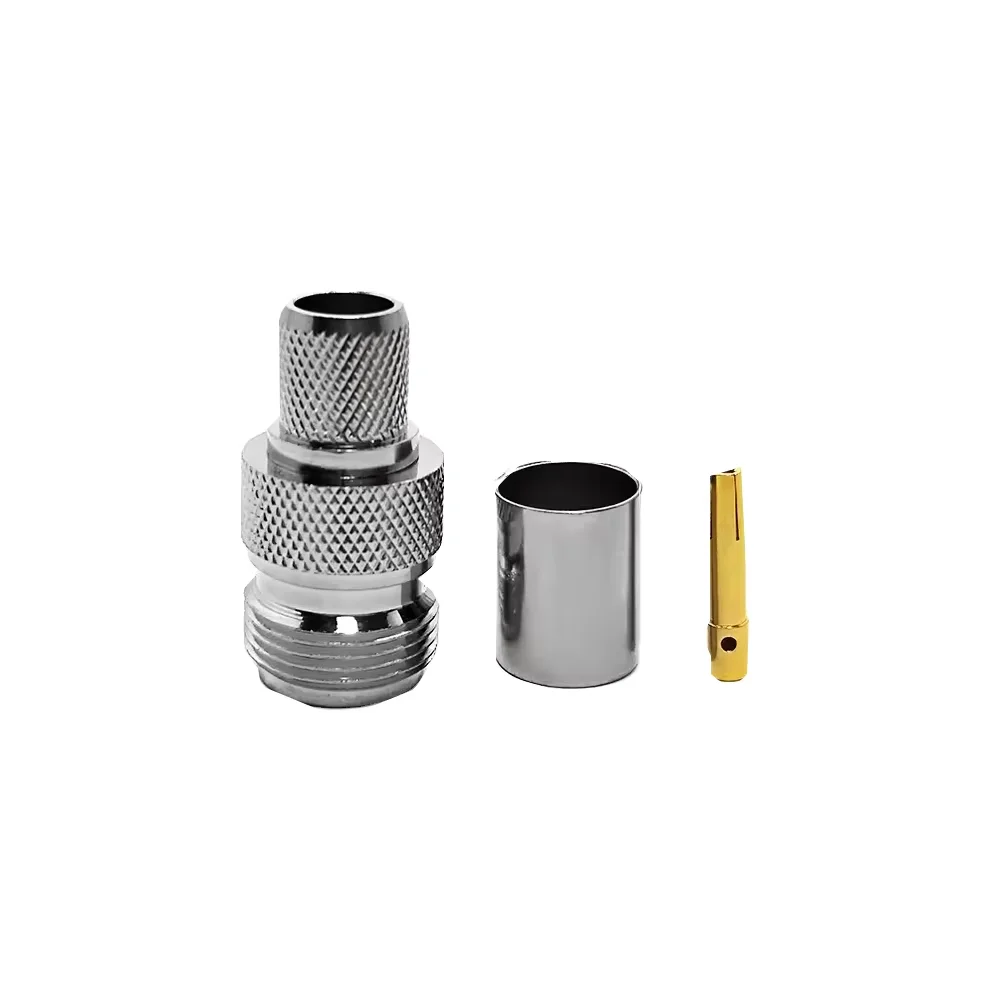

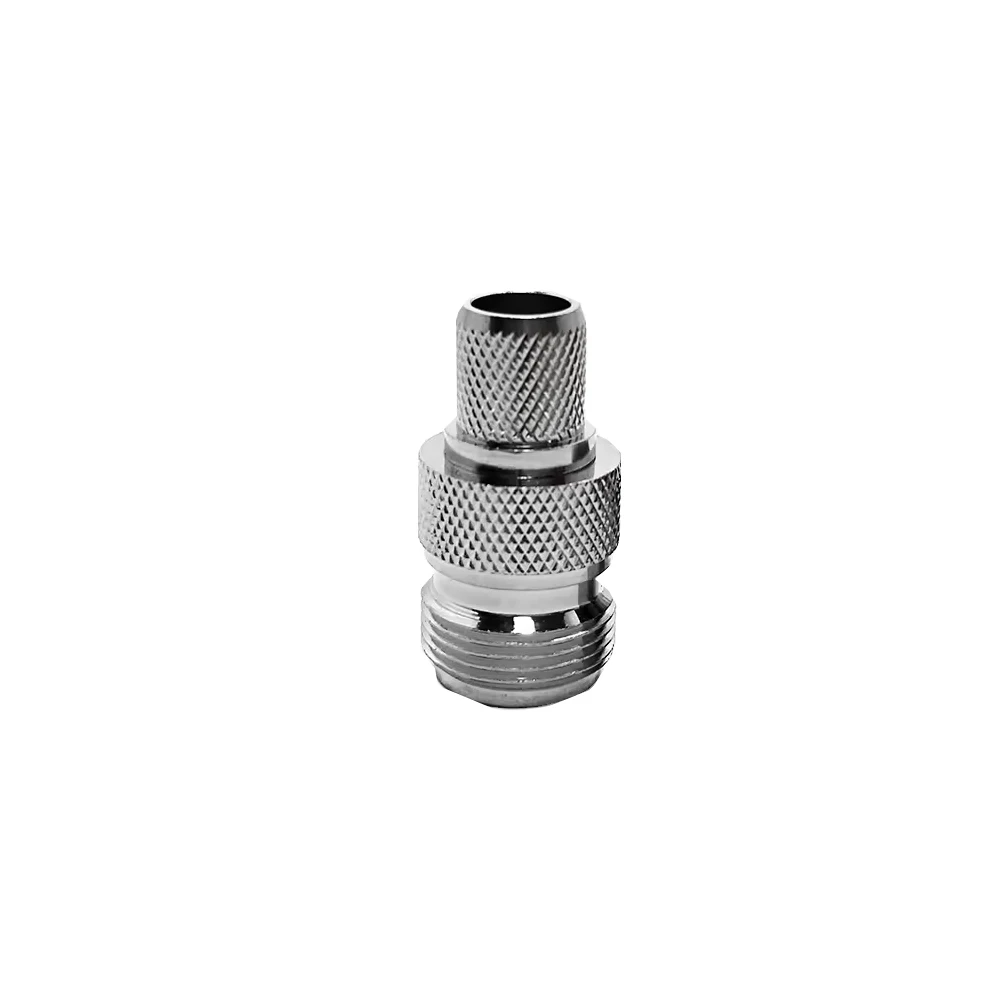

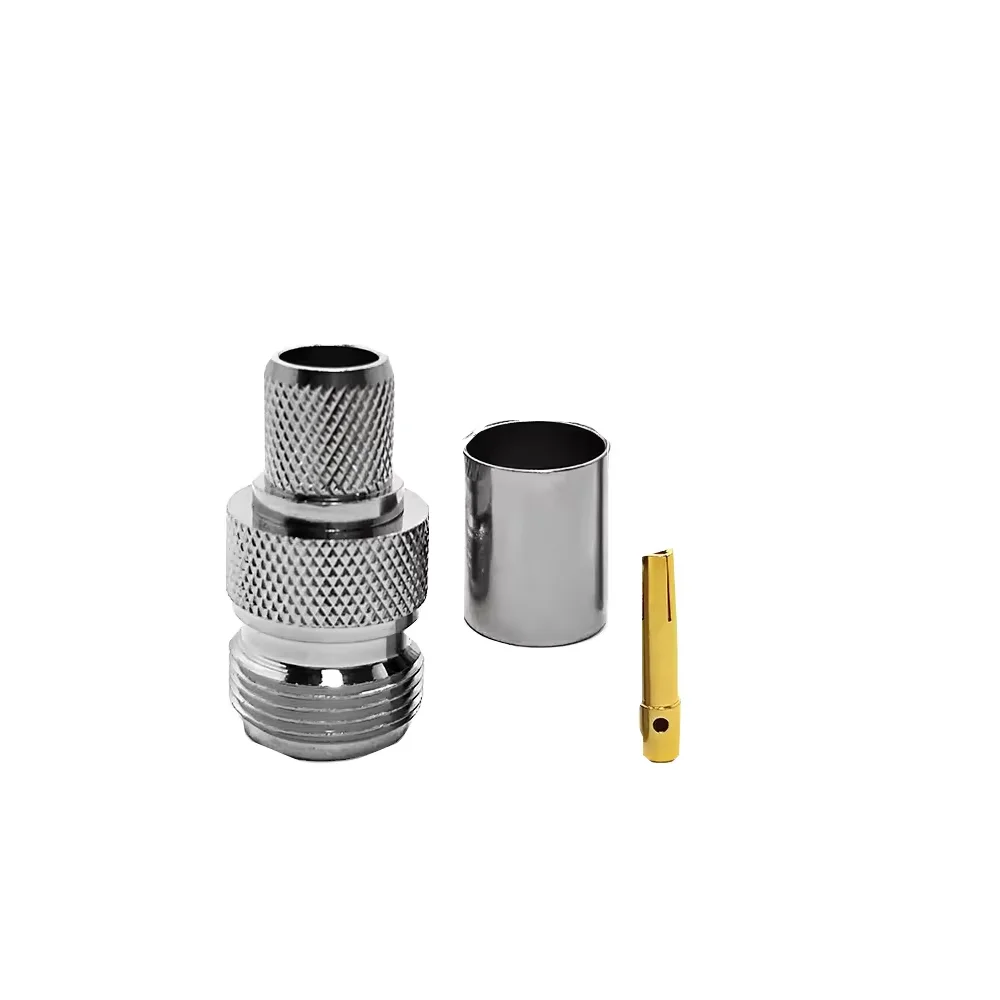

N type antenna connector female for coaxial cable
| N type antenna connector female for LMR195 LMR200 coaxial cable | ||
| Model No. | ||
| Interface | IEC 60169-16;MIL-C-39012;CECC-22210 | |
|
Electrical |
||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-11GHz | |
| VSWR | ≤1.15@DC-3000MHz | |
| Insertion Losss | ≤0.24dB(6GHz) | |
| 3rd Order IM (PIM3) | — | |
| Working Vlotage | 1000V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center Contact ≤1mΩ | Outer Contact ≤0.25 mΩ |
| Mating | — | |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Tri-Metal(CuZnSn)or Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut/Sealing Cap | Brass | Ni |
| Gasket | Silicone Rubber | — |
| Cable Clamp | — | — |
| Ferrule | Annealed Copper | Ni |
| Environmental | ||
| Operating Temperature | -45 °C-85 °C | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
