50 Ohm BNC Male Right Angle to Female Coaxial Cable Adapter Connector

  1. Space-Saving Right Angle Design

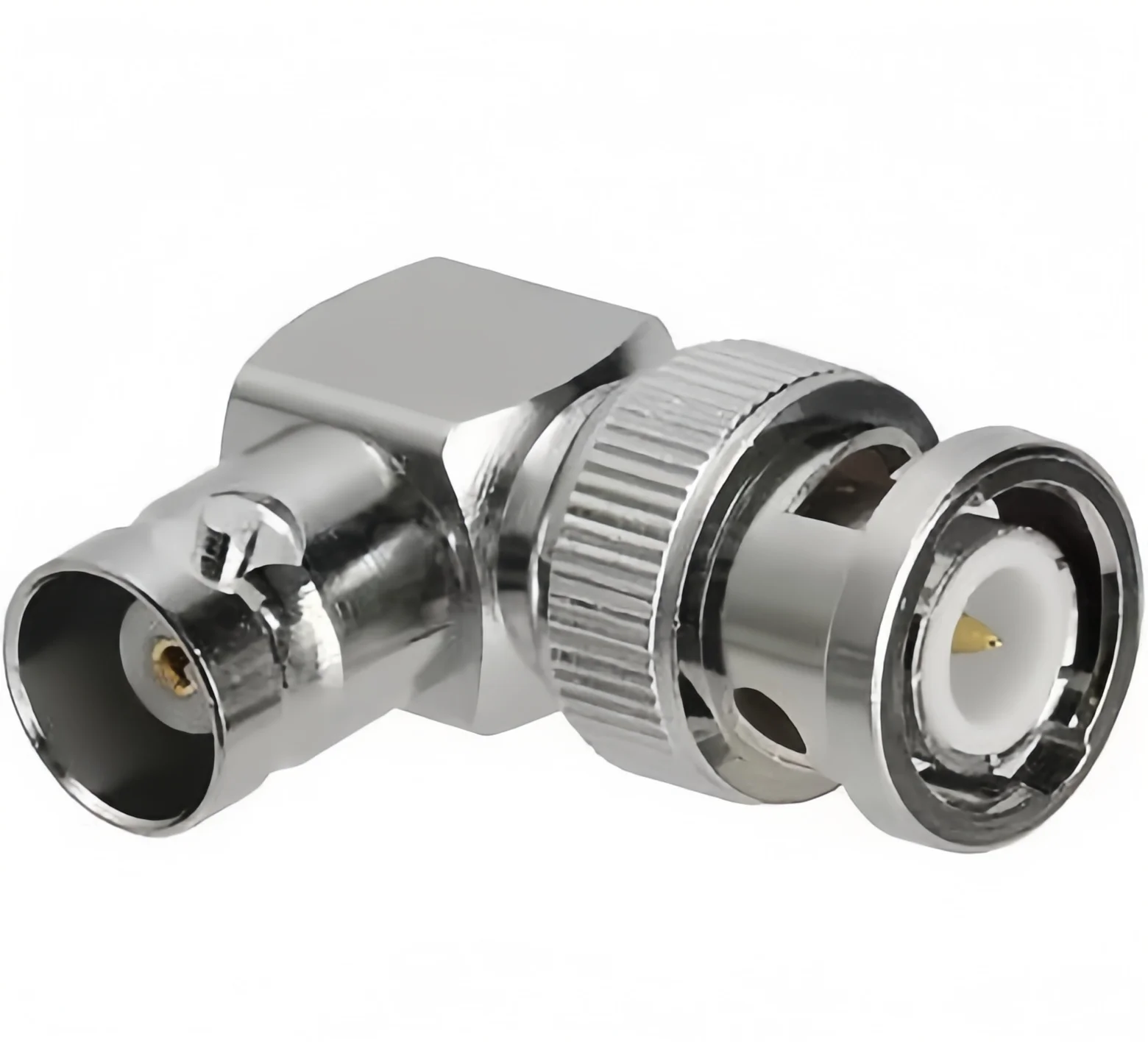

    • 90° R/A adapter (seen in image) fits compact layouts; bayonet coupling enables quick, secure connections.
  2. Low-Loss 50Ω Performance
    • 0-4GHz bandwidth; VSWR ≤1.30 (3GHz); center/outer contact resistance ≤1.5/2.0mΩ for stable signal transmission.
  3. Durable & Reliable Build
    • ≥500 mating cycles; 6 lbs contact retention + 100 lbs nut retention ensure long-term use.
  4. High-Voltage & Wide Temp Tolerance
    • 500V working / 1500V withstand voltage; -55~+155°C (Teflon) temp range for harsh environments.
  5. MIL-Standard Compliant
    • Vibration/corrosion resistance meets MIL-STD-202, ideal for industrial/defense RF setups.

BNC Connector Technical Datasheet






Electrical Characteristics
Impedance
50 ohm or 75 ohm
Frequency Range
0-4 GHz
VSWR
(Voltage Standing Wave Ratio)
Straight type ≤ 1.22/3GHz,
R/A type ≤ 1.30/3GHz
Dielectric Withstanding Voltage
1500 V rms
Working Voltage
500 V rms
Center Contact Resistance
≤ 1.5 mΩ (Milliohms max.)
Outer Contact Resistance
≤ 2.0 mΩ (Milliohms max.)
Insultation Resistance
≥5 × 10³ mΩ (Milliohms min.)


Mechanical Characteristics
Coupling
Bayonet
Contact Retention
6 lbs min
Mating Durability
≥500 cycles



Environmental Characteristics
Temperature Range
Teflon -55℃~+155℃ / POM -40℃~+60℃
Coupling Nut Retention
100 lbs. min
Vibration
MIL-STD-202 Meth. 204
Corrosion Resistance
MIL-STD-202 Meth. 101
