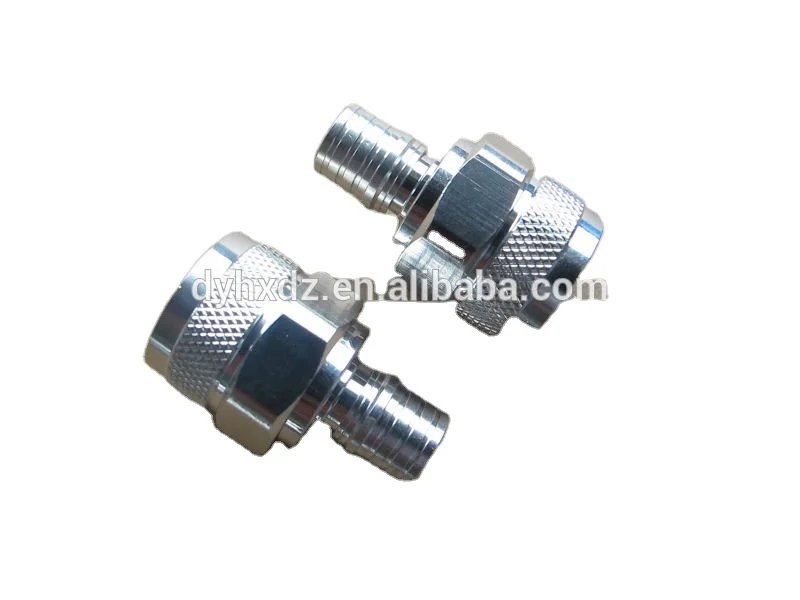

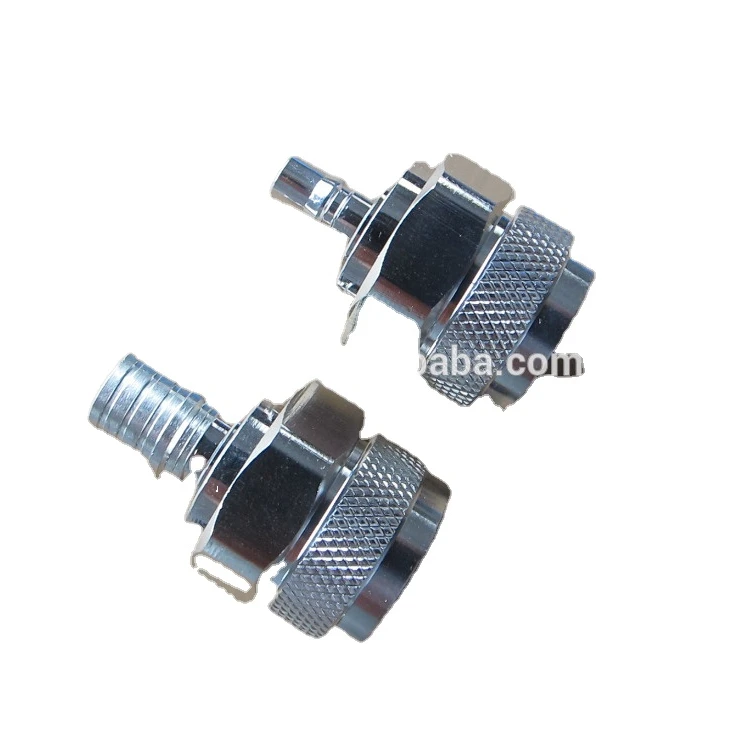

QMA male to N male adapter QMA to N adapter
| Key Specifications (Click on Data Sheet Above for Additional Details). | |
| Polarity | Standard |
| Connector Series | QMA |
| Connector Gender | Male |
| Impedance | 50 Ohm |
| Body Style | Straight |
| Attachment Method | Crimp/Solder |
| Mount Method | None |
| Minimum Frequency | DC |
| Maximum Frequency | 11 GHz |
HUBER+SUHNER Type 33_QMA-SMA-50-1/133_NE
Mechanical data Jump to
Connector Gender1 Interface QMA plug (male)
Connector Gender2 Interface SMA jack (female)
Electrical data Jump
Impedance 50 Ω
Interface Freq max 6 GHz
Detail values
Frequency range 1 0 … 4 GHz
Return Loss Range1 32 dB
VSWR Range1 1.05
Frequency range 2 4 … 6 GHz
Return Loss Range2 22 dB
VSWR Range2 1.17
