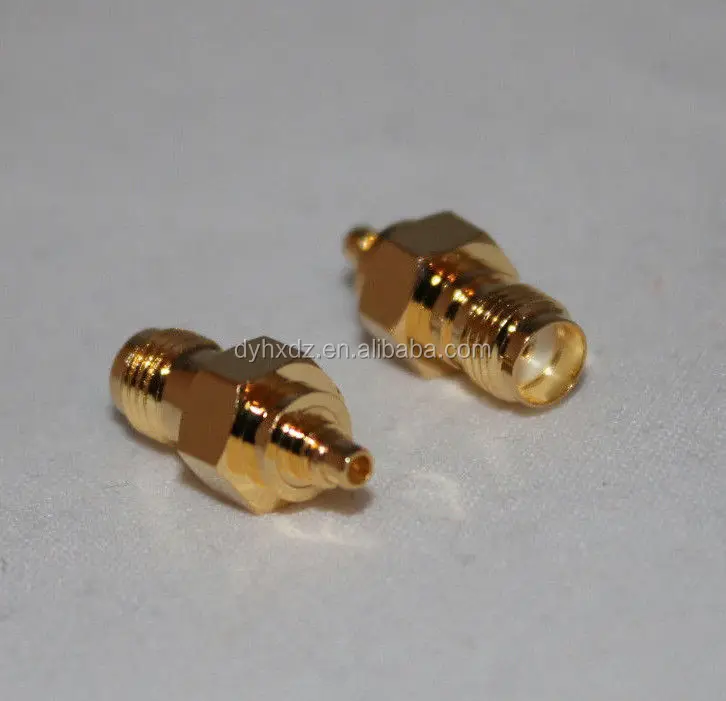

mmcx to sma adapter MMCX male to SMA female adaptor
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
mmcx to sma adapter MMCX male to SMA female adaptor
|
Major Technical Characteristics |
MATERIAL & PLATING |
|||
|
Temperature Range: |
-55~+155°C(PECable-40~+85°C) |
|||
|
Impedance: |
50Ω |
Body |
brass |
Gold plated |
|
Frequency Range: |
DC~4GHz |
|||
|
Working Voltage: |
170V r.m.s at sea level |
Resilient contact |
Beryllium-copper |
Gold plated |
|
Withstanding Voltage: |
500V r.m.s at sea level |
|||
|
Contact resistance: |
a)Center Contact ≤5m Ω b)Outer Contact ≤2.5m Ω |
Inner conductor |
Beryllium or Tin bronze |
Gold plated |
|
Insulation resistance: |
≥1000MΩ |
|||
|
Center Conductor retention force: |
≥0.28N |
insulator |
PTFE |
|
|
Insertion Loss: |
0.18dB/1GHz |
|||
|
Engagement force: |
≤15N |
Crimp ferrule |
Copper alloy |
Nickel or gold plated |
|
Disengagement force: |
≥6N |
|||
|
Voltage Standing Wave Ratio: |
Straight ≤1.25/3GHZ Right angle ≤1.43/3GHZ |
O-ring sealing |
silicone rubber |
|
|
Durability(mating): |
≥500times(cycles) |
|||
