QMA Male to for SMA Female Antenna Connector RF Adapter Product Category

Spu:
1601252554615
  • Overview
  • Recommended Products

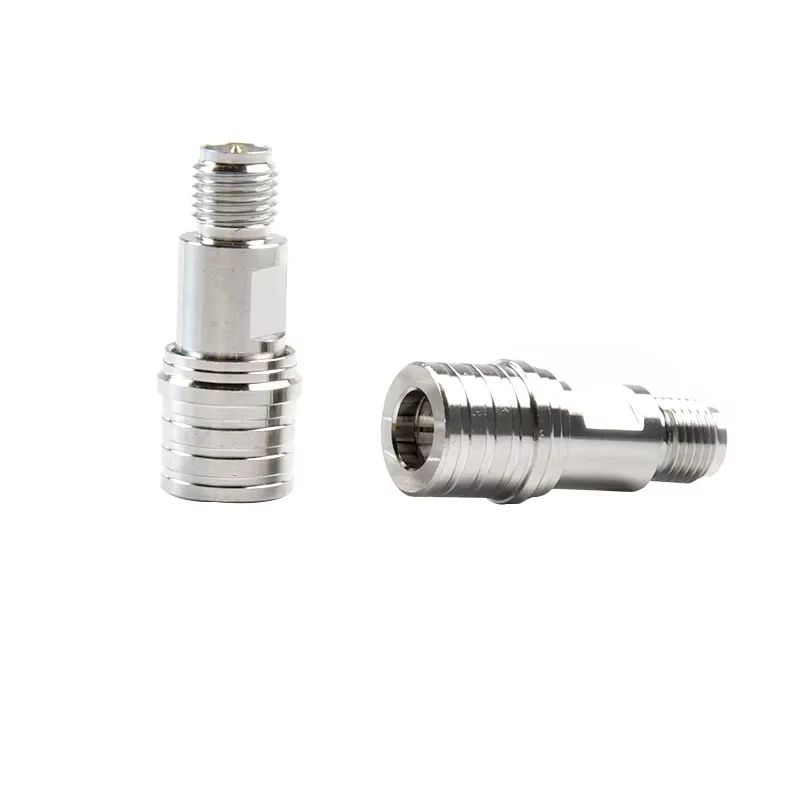

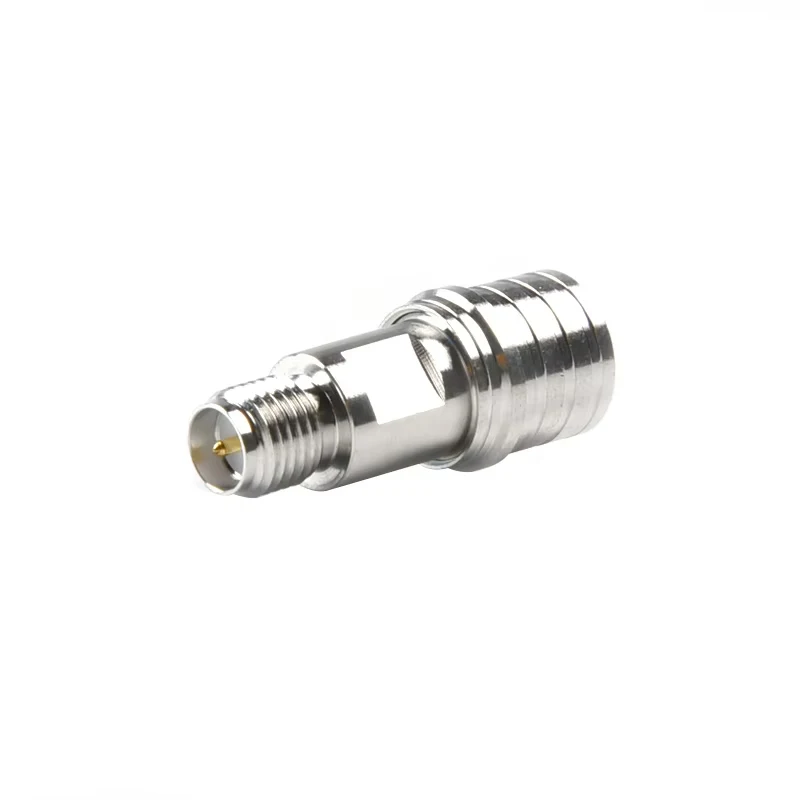

RP SMA female to QMA male and SMA female to QMA male adapter

Temperature Range

-55~+155°C (PE Cable -40~+85°C)

Impedance

50Ω

Frequency Range

DC-6GHz

VSWR

≤ 1.15DC-3000MHz

Insert Loss

≤ 0.15dB (6GHz)

Dielectric Withstanding Voltage

≥1000V RMS,50Hz,at sea level

Working Voltage

≤ 480V

Insulation Resistance

≥ 5000 MΩ

Durability

≥ 500(cycles)

Contact resistance:

CenterContact   ≤2.5mΩ

Outer Contact   ≤ 3mΩ

Interface retention force:

≥60N
