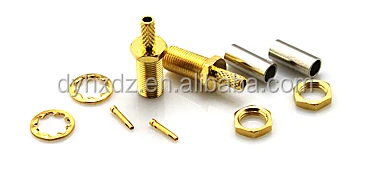

SMA male female bulkhead adapter
SMA male female bulkhead adapter
| Electric Data | ||
| Characteristic Impedance | 50 ohm | |
| Frequency Range | Flexible Cable: DC-12.4GHz | |
| Working Voltage | 335 VRMS(max at sea level) | |
| Dielectric Withstanding Voltage | 1000 VRMS(min at sea level) | |
| VSWR | straight connecotor with flexible cable ≤1.15+0.02f | |
| Contact Resistance | Inner: 3 milliohms(max) | |
| Outer: 2 milliohms(max) | ||
| Insulation Resistance | 5000 megohms(min) | |
| Mechanical Data | ||
| Durability Mating | 500 Cycles min. | |
| Material Data | ||
| Connector Parts | Materials | Plating Finish |
| Body | Brass or SS | Gold or passivated |
| Male Pin | Brass | Gold |
| Insulators | PTFE | N/A |
| Ferrules | Copper alloy | Nickel |
| Gasket | Sillicon rubber | N/A |
| Environmental Data | ||
| Temperature Range | -65~+165℃ | |
