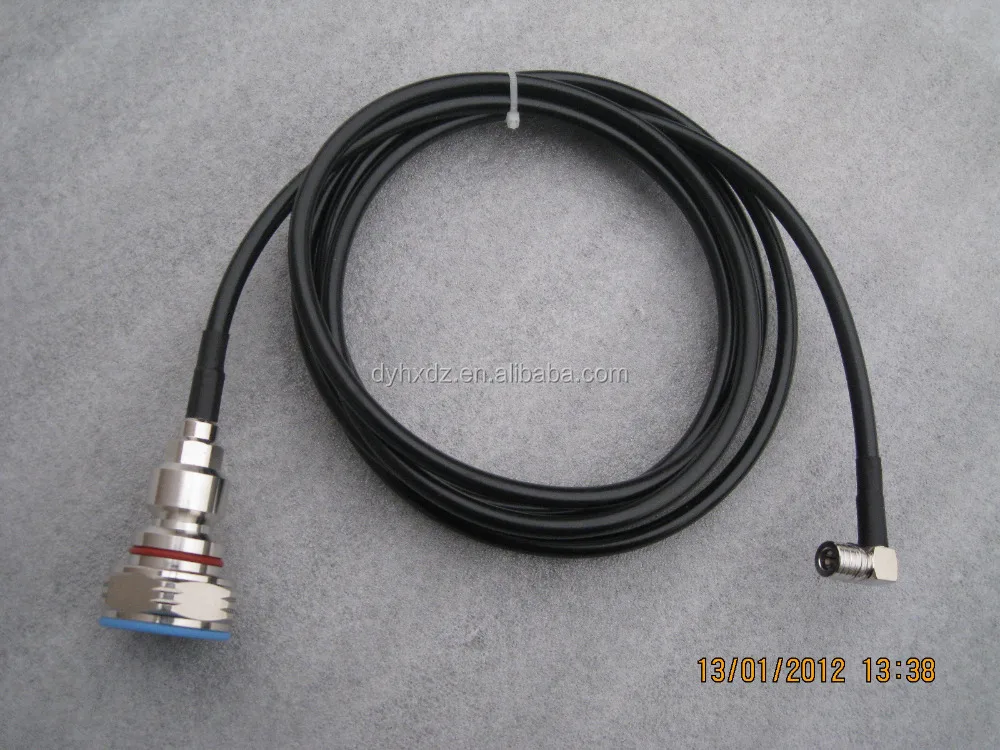

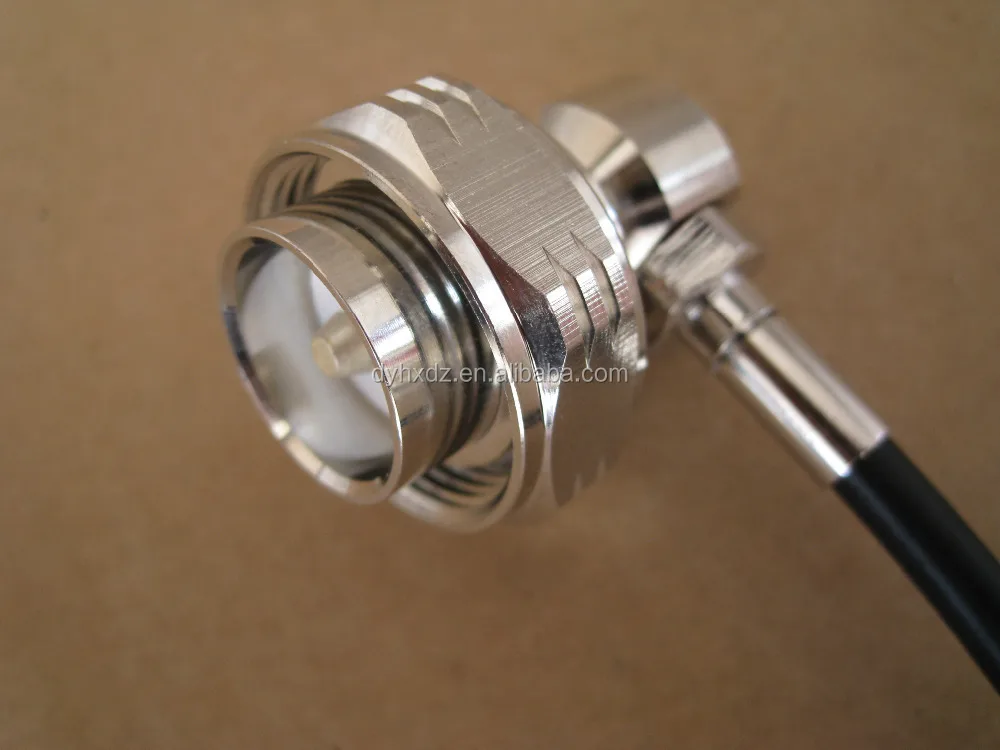

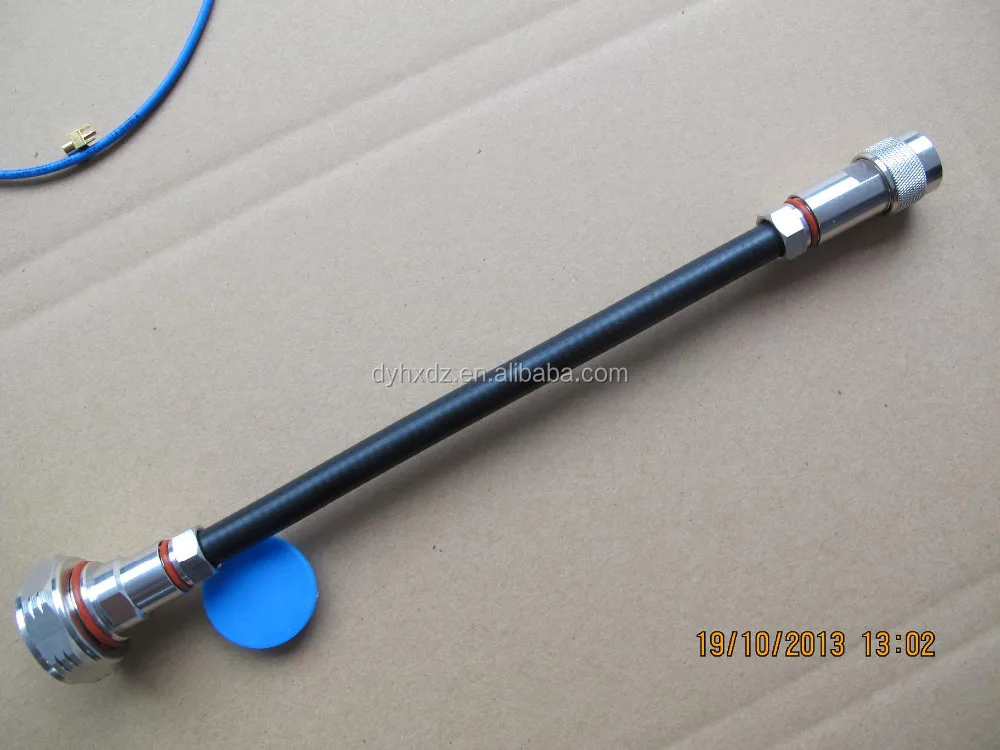

DIN 7-16 male to DIN716 male for LMR400 cable 7/16 din cable assembly
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
DIN 7-16 male to DIN716 male for LMR400 cable 7/16 din cable assembly
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-5GHz | |
| VSWR | ≤1.07@DC-1000MHz | |
| Insertion loss typical | ≤0.05dB | |
| Dielectric Withstanding Voltage | ≥6000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Average Power | 2.3KW @900MHz | |
| Peak Power Maximum | 90KW | |
| Contact Resistance | Center Contact ≤1.5mΩ | Outer Contact ≤1.5 mΩ |
| Mechanical | ||
| Durability | Mating cycles ≥50 | |
| Material and Finish | ||
| Parts Name | Material | Finish |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor(Spring) Bronze | Ag |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | — |
| Cable Clamp | Brass | Ni |
| Hardware kit(Bolts /Nut/Washer) | Stainless Steel | — |
| Environmental | ||
| Operating Temperature | —45°C-85 °C | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant | |
