Mcx Female Jack Crimp Connector for RG316 Cable
- Overview
- FAQ
- Recommended Products
- Strong Performance: Supports DC-6GHz wideband transmission, 50Ω impedance matching; center/outer conductor contact resistance as low as 5mΩ/2.5mΩ; 70dB shielding effectiveness at 1GHz for stable, anti-interference signal transmission
- High Durability: Adapts to -55°C~+155°C wide temperature range; 48h salt spray corrosion resistance; 500 mating cycles + 98m/S² vibration resistance, suitable for complex working conditions
- High Reliability: 750V withstand voltage + ≥1000MΩ insulation resistance; gold-plated contacts + PTFE insulator, balancing electrical safety and conductivity
- Easy Installation: Crimp-type design for RG316 cable; 78.5N outer conductor retention force ensures firm, non-loosening connections
- Communication Equipment: Signal link connections for routers, base station RF modules
- Test Instruments: Cable connectors for RF test devices like oscilloscopes, spectrum analyzers
- Aerospace/Military: Signal transmission for airborne/shipborne electronic devices in high-vibration, wide-temperature environments
- Industrial Electronics: High-frequency signal interconnection for industrial RF sensors and automated equipment

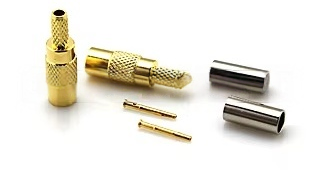

mcx female jack crimp connector for LMR100 RG316 cable
Electrical Requirements | |||
Impedance |
50Ω |
||
Frequency |
DC-6 GHz |
||
Withstand Voltage(at Sea Level) |
750V,50Hz |
||
Working Voltage(at Sea Level) |
170V,50Hz |
||
Insulation Resistance |
≥ 1000MΩ |
||
Sheltered Effectiveness |
straight 70 dB,1GHz |
||
Contact Resistance |
Center Conductor |
≤5mΩ |
|
Outer Conductor |
≤2.5mΩ |
||
Mechanical Requirements | |||
Center Conductor Retention |
0.27N(standard retention) |
||
Outer Conductor Retention |
78.5N |
||
Vibration |
98m/S2,10-500Hz,10gnAcceleration |
||
Durability |
500cycles |
||
Environmental Requirements | |||
Temp.Range |
-55°C - +155°C |
||
Salt Spray |
48h spray |
||
Material | |||
Body |
Brass |
||
Center Conductor |
Plug |
Brass |
|
Jack |
Beryllium Copper |
||
Outer Conductor |
Brass/Beryllium Copper |
||
Crimp Tube |
Brass/Red Copper |
||
Other Metal |
Brass |
||
Insulator |
PTFE |
||
Sealing Ring |
Silicone Rubber |
||
Surface Treatment | |||
Body |
Gold |
||
Center Conductor |
Gold |
||
Outer Conductor |
Gold |
||
Other Metal |
Gold/Nickle |
||
