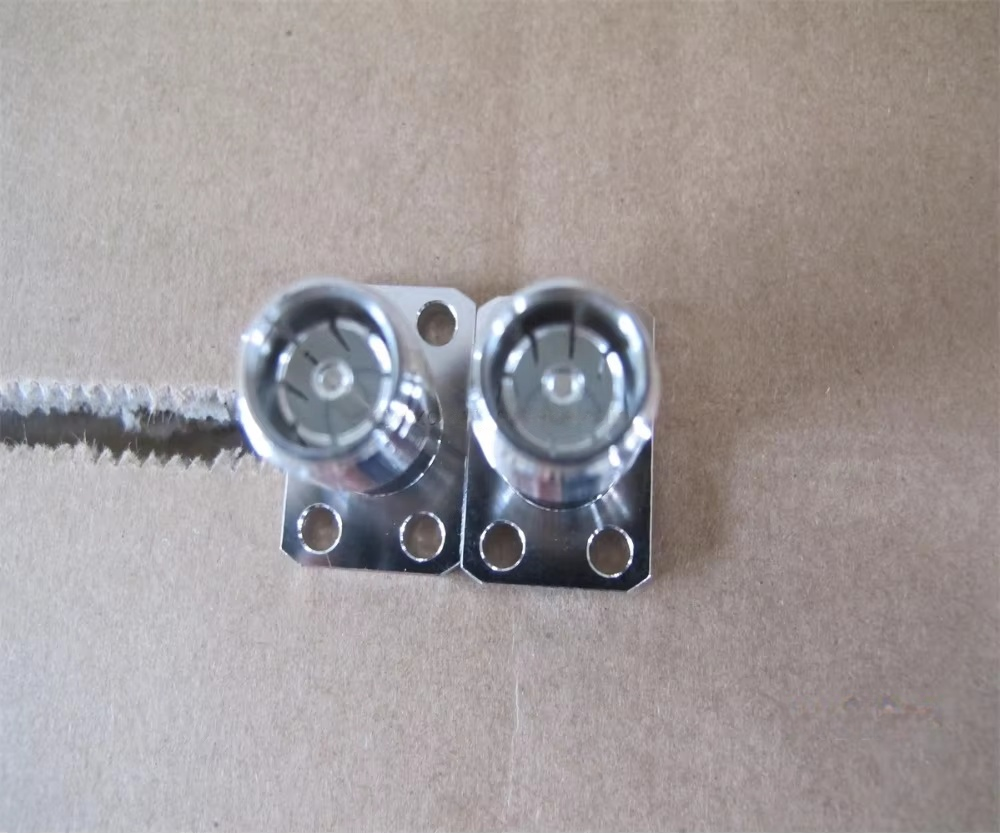

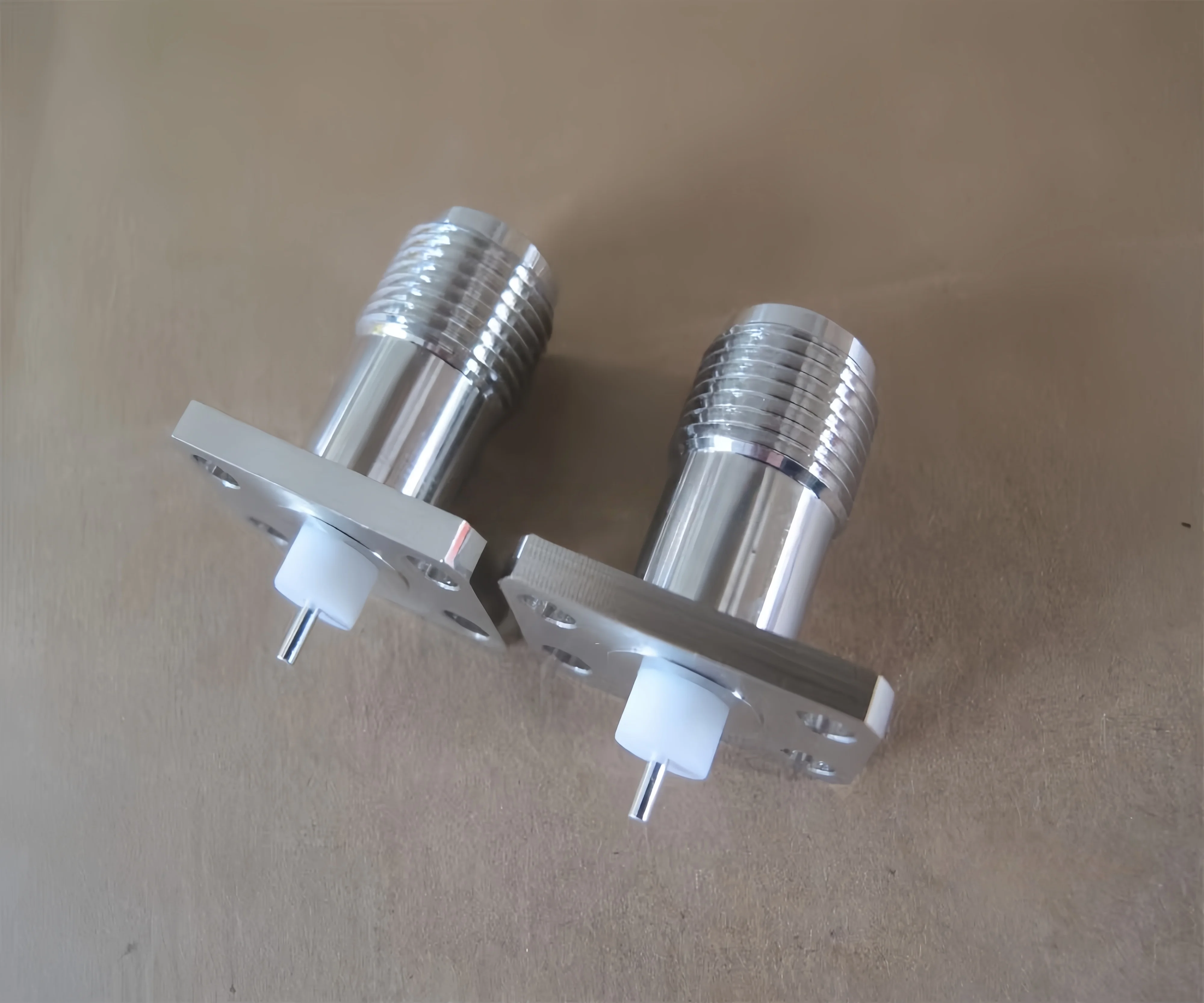

AMPHENOL 2.6/6 RF connector
4.3-10 male plug right angle adapter
Electrical
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-6GHz |
| VSWR | 1.15 |
| Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level |
| Dielectric Resistance | ≥5000MΩ |
| Contact Resistance | Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ |
| PIM (@2-tonex20w) | ≤-165dBC |
Mechanical
| Durability | Mating cycles ≥500 |
Material and plating
Description |
Material | Plating |
| Body | Brass | Tri-alloy |
| Insulator | PTFE | – |
| Center conductor | Brass | Ag |
| Other | Brass | Ni |
Environmental
| Temperature Range | -40℃~+85℃ |
| Watertightness | IP67 |
| Rosh-compliance | Full ROHS compliance |
| Salt-fog test | 96h |
FAQ
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order
Q: Can you guarantee the quality of product?
A: Sure, high quality give us confidence to do business with your company. Long-term cooperation is what we need most instead of short-term cooperation.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you.
Q:How do your company deal with the problem on quality ?
A: We have 20 years experience in this business. High quality and perfect service earn us great reputation. We will have a
detailed analysis of the problem. If our product is unqualified, we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
