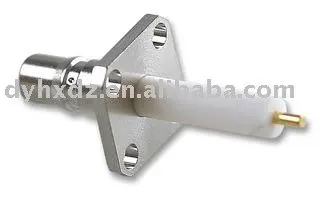

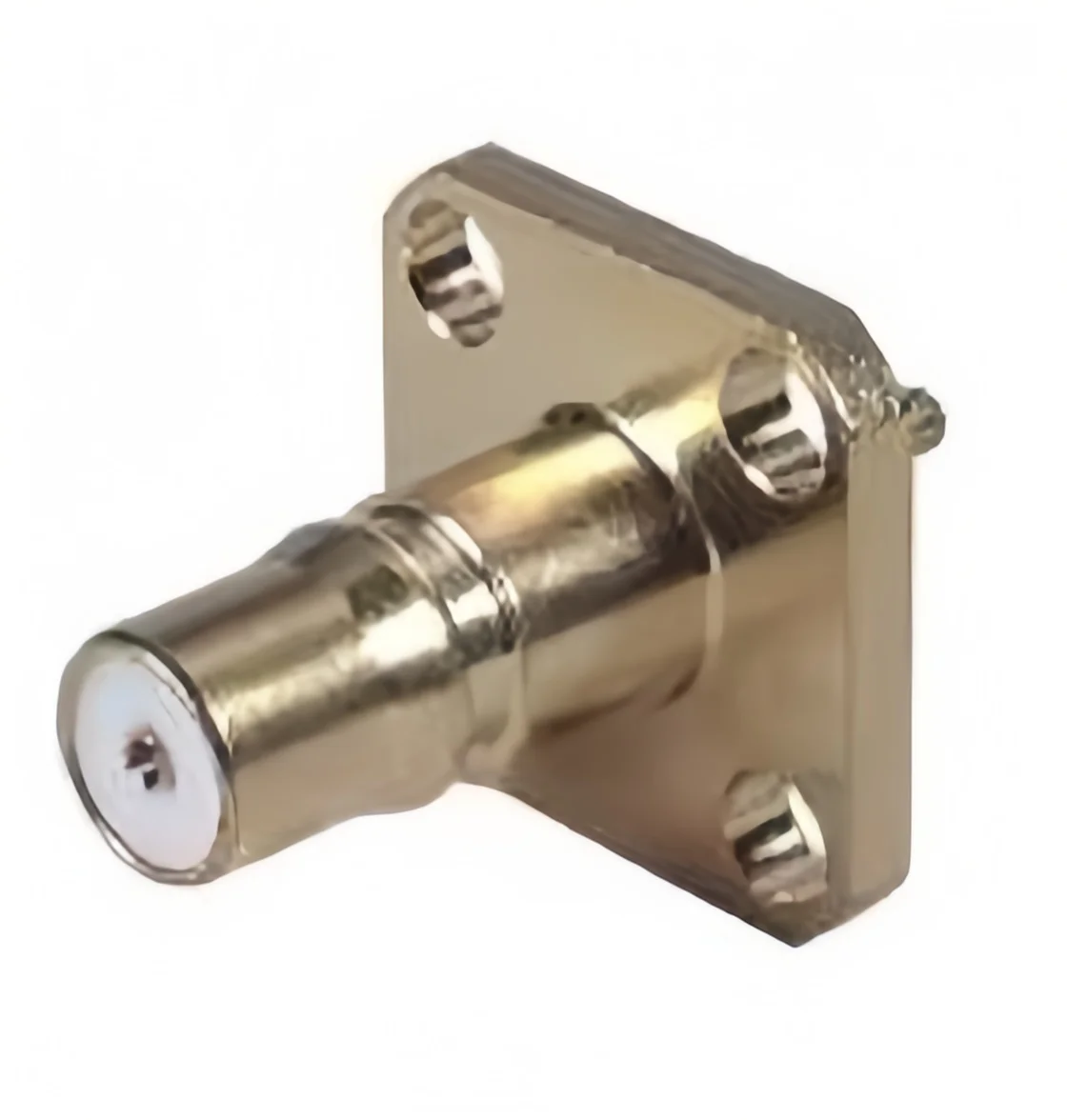

QMA rf connectors
stock 2000pcs
Mechanical data
Flange Dimension Type square flange 12.7 x 12.7 mm
Terminal Dimension D1 0.27 mm
Terminal Dimension L1 6.6 mm
Terminal Dimension D2 4.1 mm
Terminal Dimension L2 4.06 mm
Electrical data
Impedance 50 Ω
Interface Freq max ≤6 GHz
Environmental and general data Jump to [Top]
Operating Temp min -40 °C
Operating Temp max 80 °C
Weight 0.0033 kg
Number of Matings 100
