For SMA Female to N Male Adapter Connector RP for RF Applications Jack or Plug

Spu:
1601252623204
  • Overview
  • Recommended Products

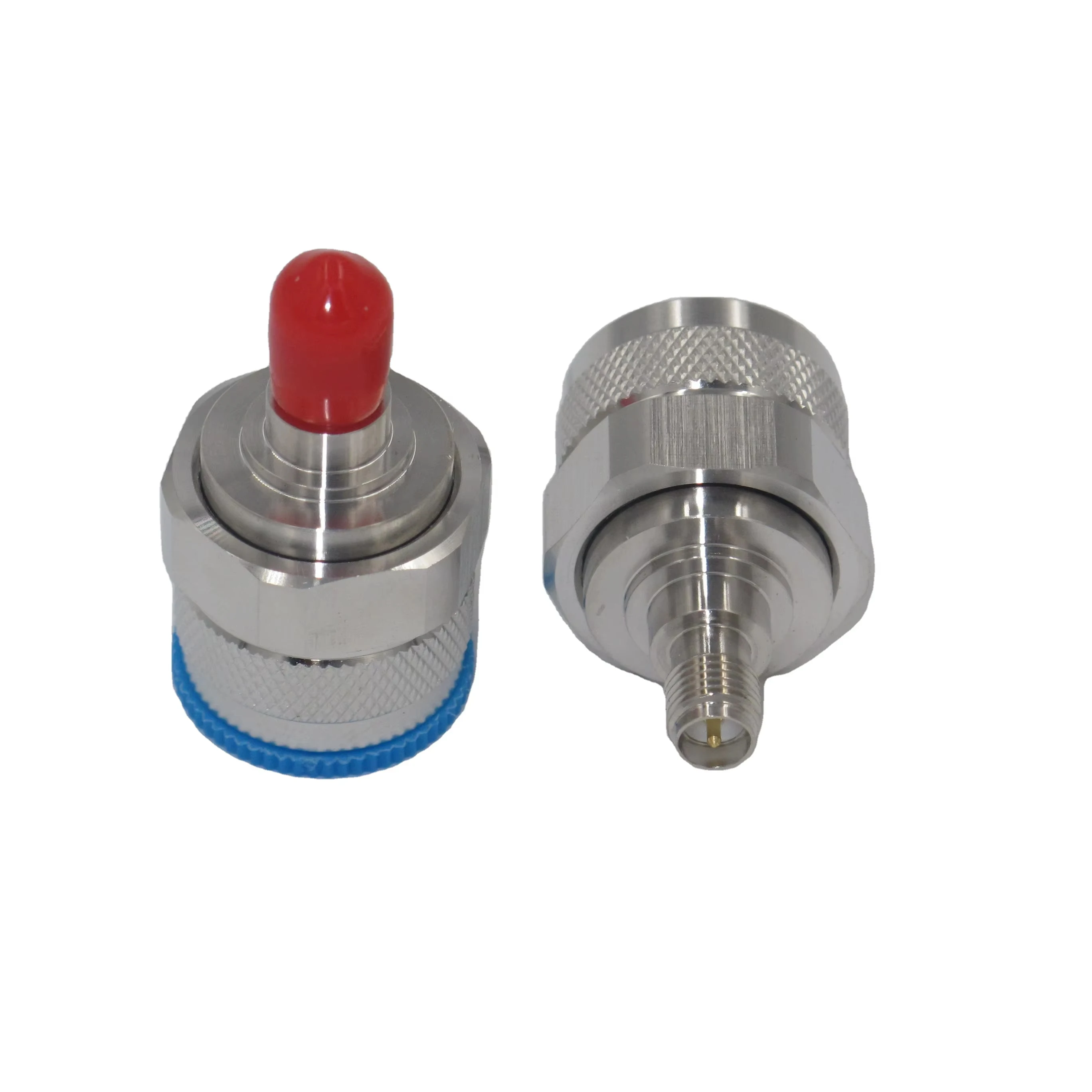

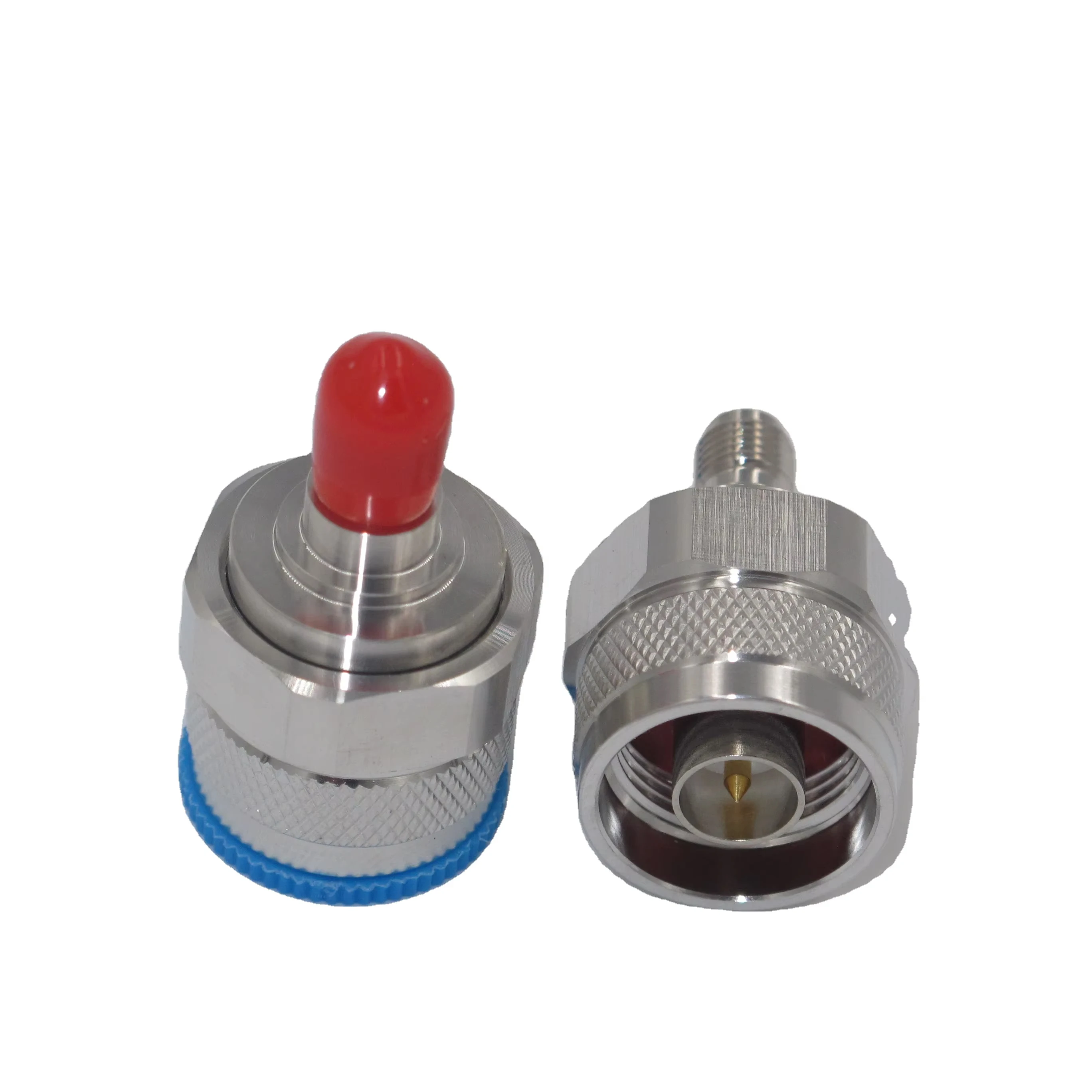

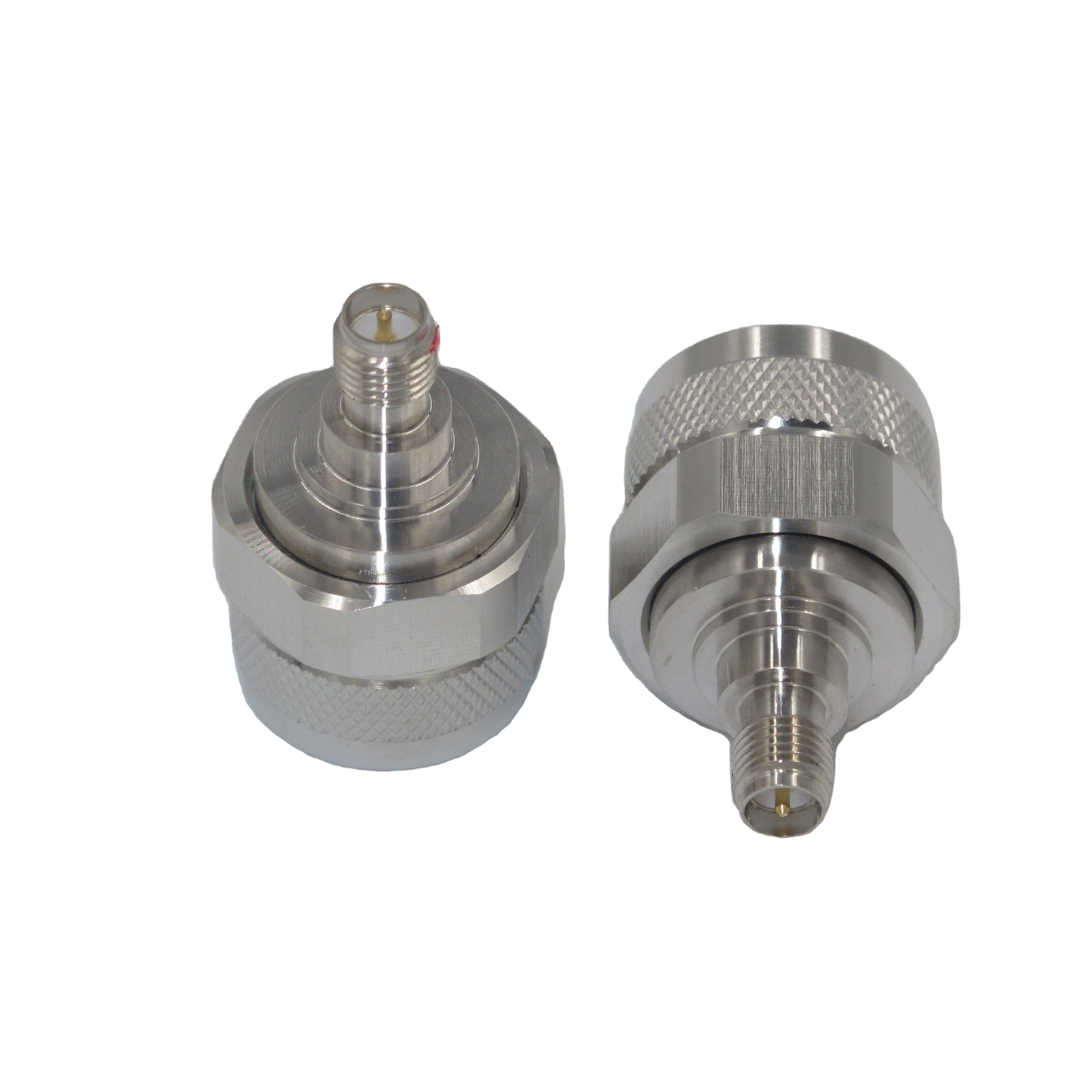

RP SMA MALE  to N male adapter connector

 Electrical
 Characteristic Impedance  50ohm
 Frequency Range  DC-6GHz
 VSWR  1.10
 Dielectric withstanding voltage  ≥2500RMS,50Hz,at sea level
 Dielectric Resistance  ≥5000MΩ

 Insertion Loss  ≤0.05
 Mechanical
 Durability  Mating cycles ≥500
Environmental
Temperature Range -40℃~+85℃
Rosh-compliance Full ROHS compliance
Salt-fog test 96h



Material and plating
Description Material  Plating
Body Brass Tri-alloy
Insulator PTFE ---
Center conductor Phosphor bronze  Ag
Other Brass Tri-alloy








Please contact us immediaterly if you are interested!
