High Quality TNC Male Metal Anti-Dust Cap Waterproof RF Connector with Chain Connectors Product

High-Quality TNC Anti-Dust Cap - Waterproof RF Connector, Gold-Plated with Chain

  • Overview
  • FAQ
  • Recommended Products

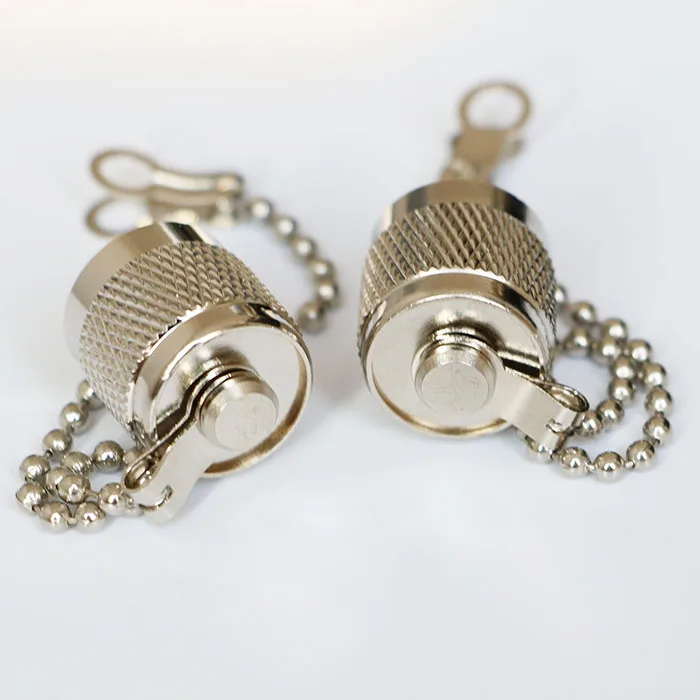

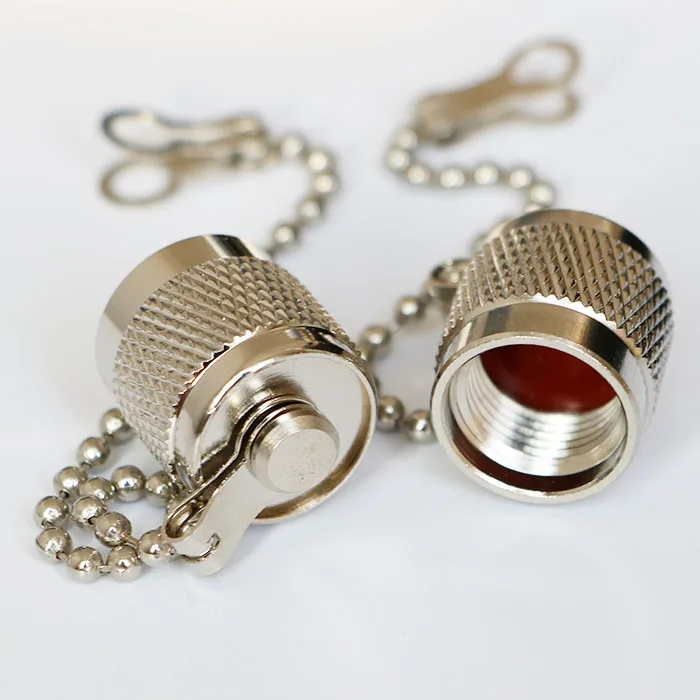

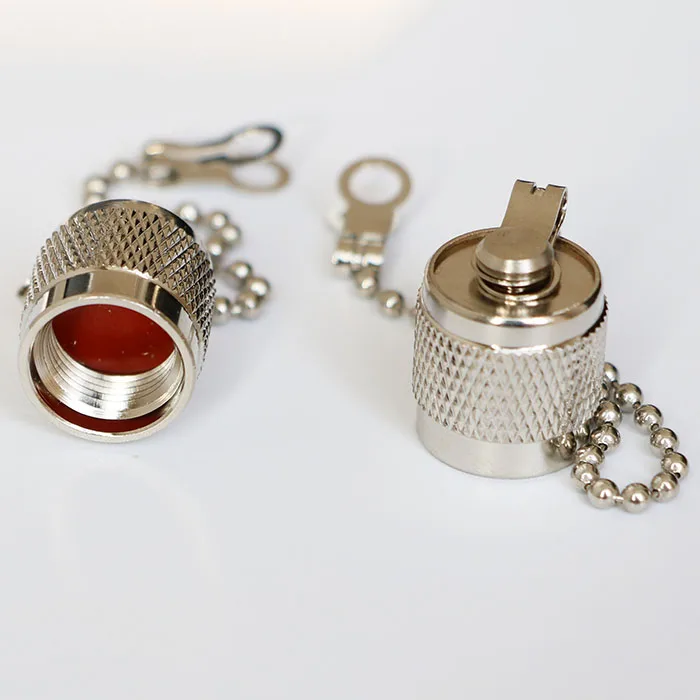

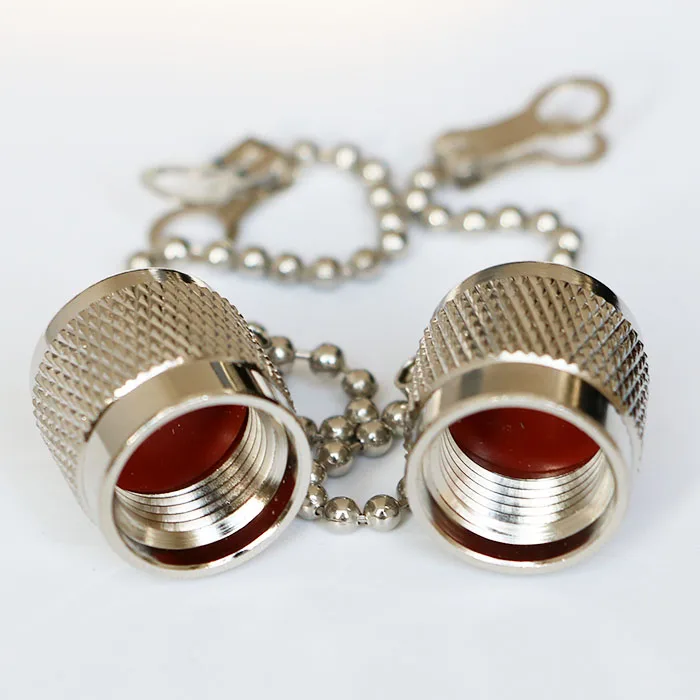

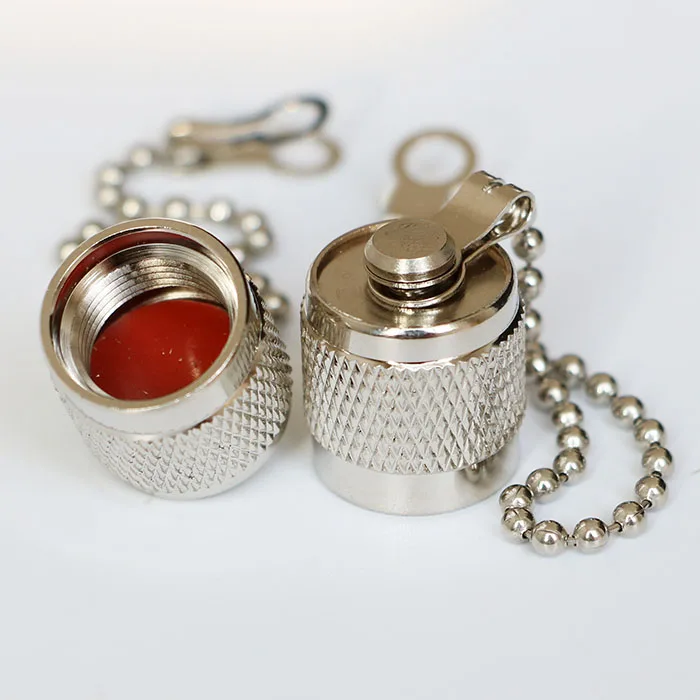

High quality waterproof TNC male metal anti dust cap for rf connector with chain

  1. IP65 Waterproof & Dustproof Protection
    • Silicone rubber gasket delivers IP65 weatherproof rating, shielding TNC RF connectors from moisture, dust, and corrosion in outdoor/harsh environments.
  2. Premium Gold-Plated Construction
    • Brass body/coupling nut + phosphor bronze center conductor with gold plating ensures excellent conductivity and long-term anti-corrosion performance.
  3. Low-Loss RF Compatibility
    • 50Ω impedance, DC-12GHz frequency range, VSWR ≤1.15 (DC-3000MHz) and insertion loss ≤0.10dB, no signal interference when mated.
  4. Durable & Secure Design
    • ≥500 mating cycles; attached chain prevents cap loss; PTFE insulator ensures stable insulation and heat resistance.
  5. EC 60169-15 Compliant
    • Meets international interface standard, compatible with standard TNC male RF connectors for wide industrial applications.

High quality waterproof TNC male metal anti dust cap for rf connector with chain

Interface
EC 60169-15
Electrical
Characteristic Impedance
50ohm
Frequency Range
DC-12GHz
VSWR
≤1.15@DC-3000MHz
Insertion Loss
≤0.10dB
Durability
Mating cycles ≥500
Material and Plating
Parts Name
Material
Plating
Body
Brass
AU
Insulator
PTFE
Center Conductor
Phosphor Bronze
Au
Coupling Nut
Brass
Au
Gasket
Silicone Rubber
Environmental
Operating Temperature
-40℃-85 ℃
Weatherproof Rate
IP65

 Please contact us immediaterly if you are interested!

FAQ

Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.

Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order

Q: Can you guarantee the quality of product?
A: Sure, high quality give us confidence to do business with your company. Long-term cooperation is what we need most instead of short-term cooperation.

Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you.

Q:How do your company deal with the problem on quality ?
A: We have 20 years experience in this business. High quality and perfect service earn us great reputation. We will have a
detailed analysis of the problem. If our product is unqualified, we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
