Hot Selling RF Coaxial Adapter Straight RP for SMA Male to for SMA Female Connector Premium Quality Connectors
Spu:
60325205627
- Overview
- Recommended Products

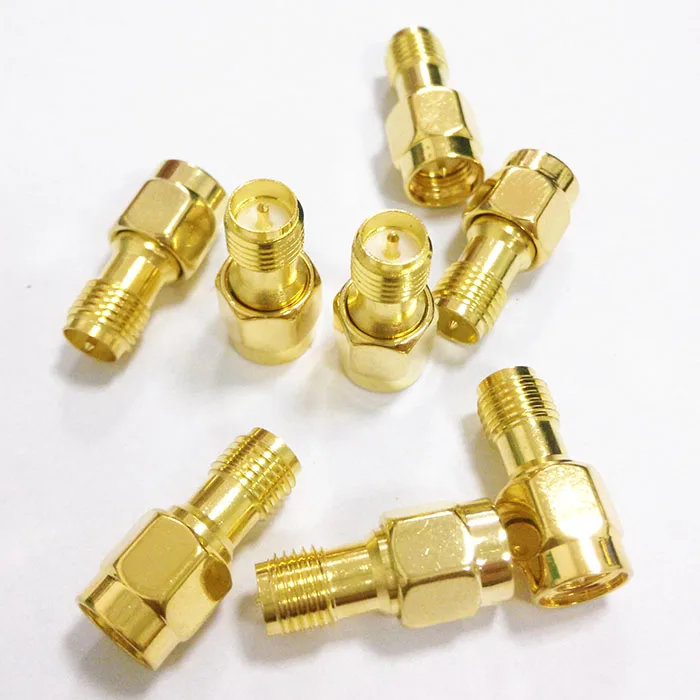

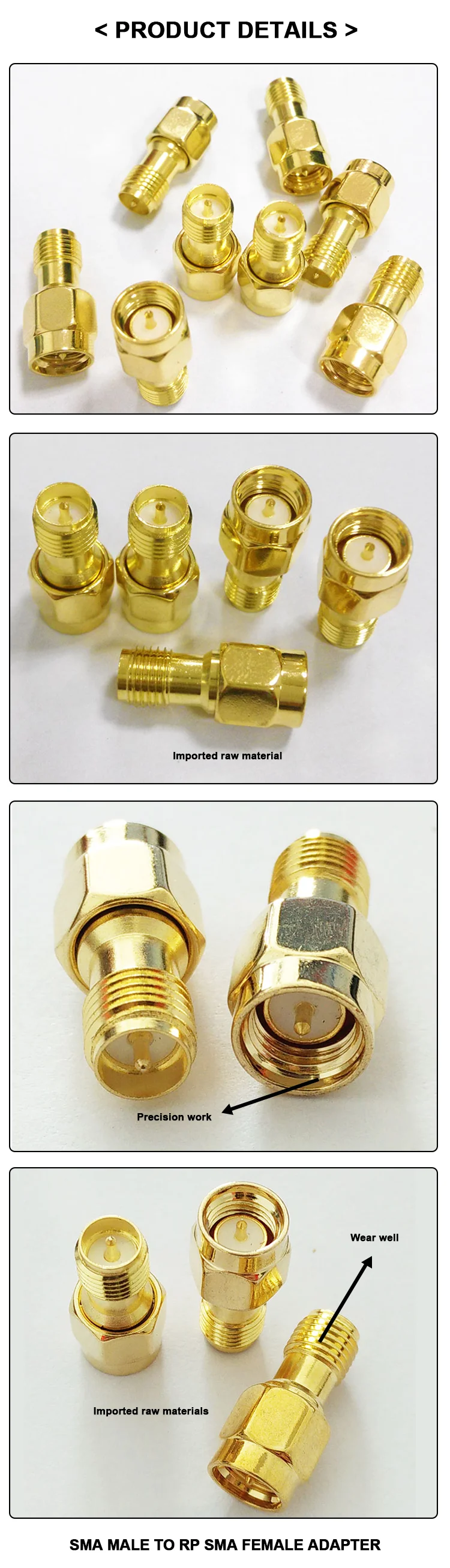

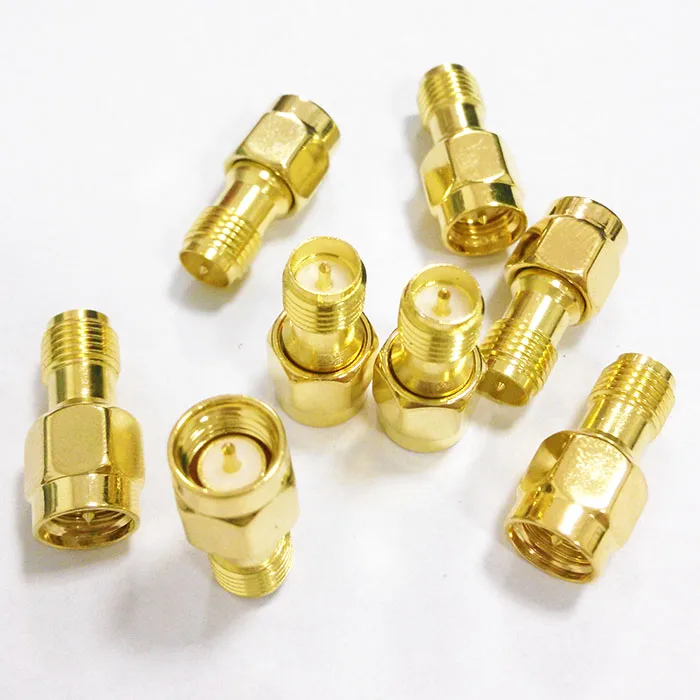

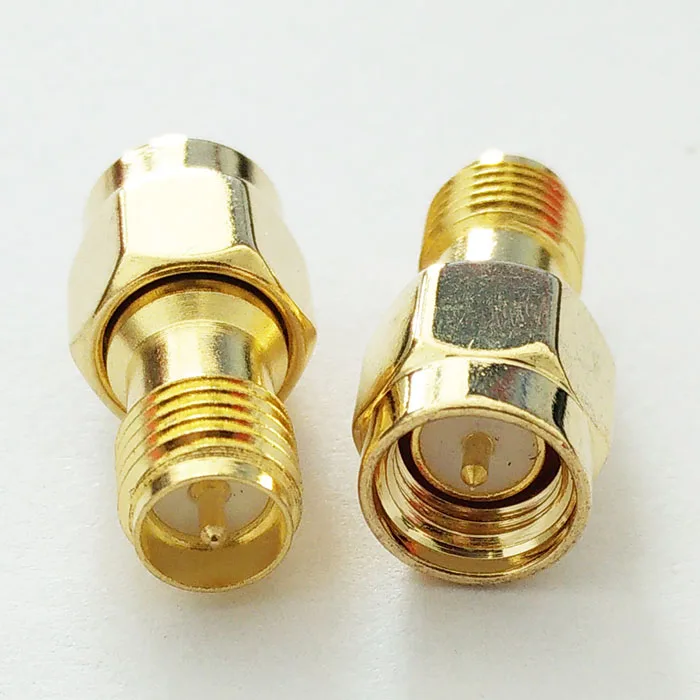

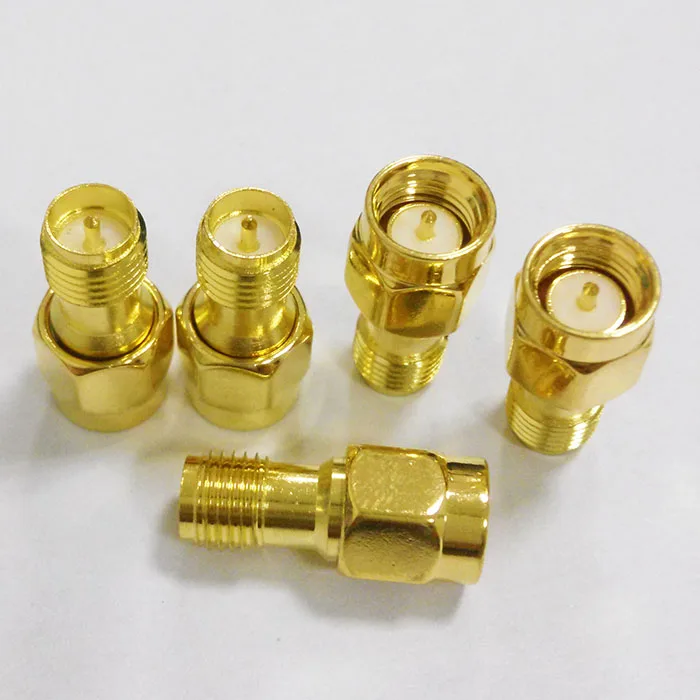

Hot selling RF coaxial adapter straight RP SMA male to SMA female connector
| Key Performance | ||||||
| Temperature range | -65~+165 | Insulation resistance | ≥5000MΩ | |||
| Characteristic impedance | 50Ω | Dielectric Withstanding voltage | 1000V(r ms) | |||
| Frequency range | With flexible cable | 0~12.4GHz | Contact resistance | Center conductor | ≤3mΩ | |
| With semi-rigid/flexible cable | 0~18GHz | Outer conductor | ≤2mΩ | |||
| VSWR | With flexible cable | ≤1.15+0.02F | Durability | 500 Cycles | ||
| With semi-rigid/flexible cable | ≤1.05+0.02F | |||||
| Material And Plating | ||||||
| Body | Brass , gold plated or stainless steel passivated | |||||
| Male center contacts | Brass , gold plated | |||||
| Female center contacts | Beryllium copper , gold plated | |||||
| Insulators | PTFE | |||||
| Gaskets | Silicon rubber | |||||
| Crimp ferrules | Copper alloy , gold or nickel plate | |||||
Please contact us immediaterly if you are interested!
