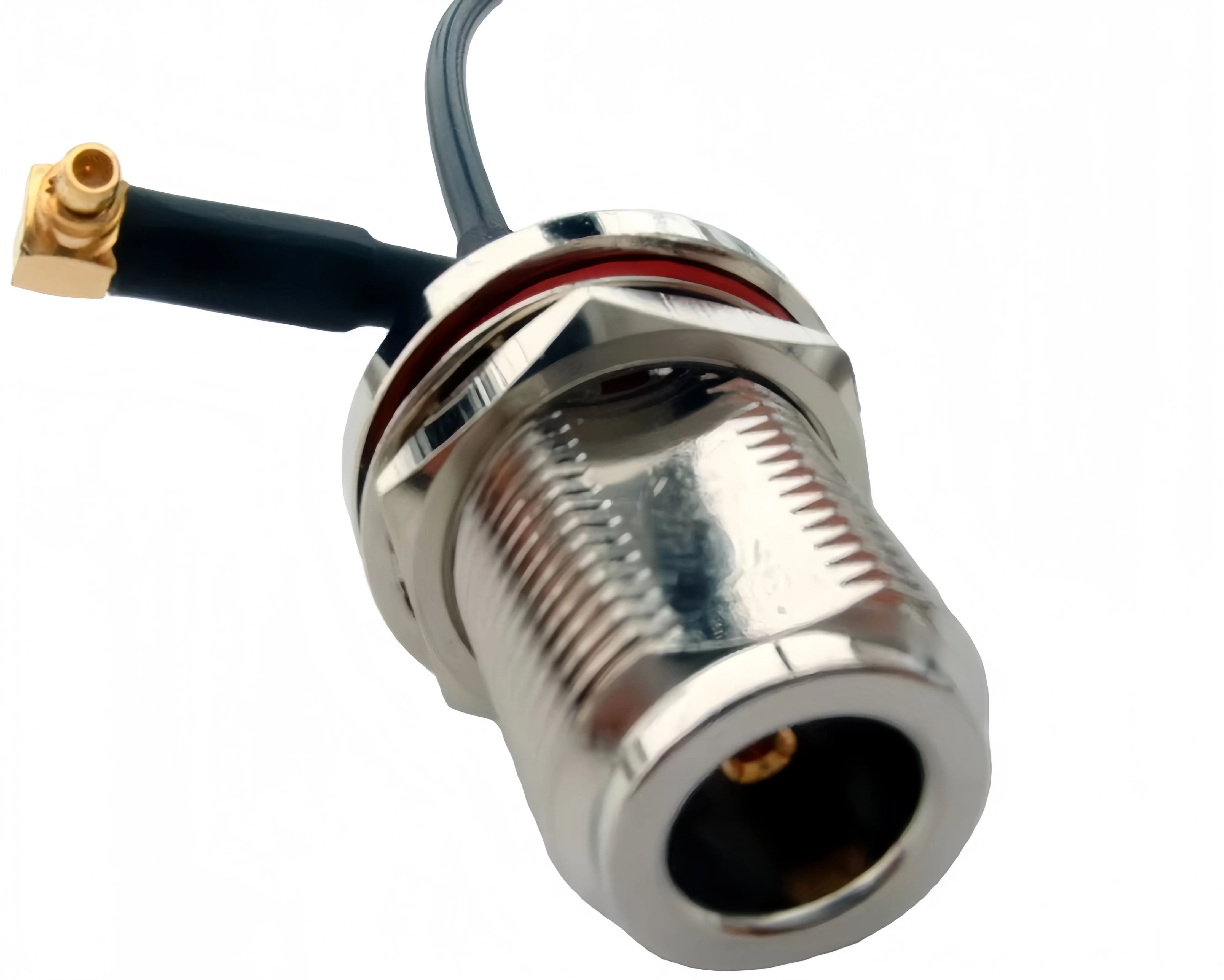

MMCX R/a Male to N Jack Rf Cable Pigtail China
- Overview
- FAQ
- Recommended Products
- High Signal Integrity 50Ω impedance, VSWR ≤1.15 (DC-3000MHz), and ultra-low contact resistance (center ≤1mΩ) ensure stable, low-loss transmission up to 11GHz.
- Superior Electrical Safety 2500V dielectric withstanding voltage & 1000V working voltage (sea level) for reliable, safe operation.
- IP67 Weatherproof & Durable Sealed silicone gasket (IP67) resists moisture/dust; ≥500 mating cycles and robust metal plating (Au/Ni/Ag) extend service life.
- Compliant with Industry Standards Meets IEC 60169-16, MIL-C-39012, and RoHS requirements for professional/industrial applications.
- Outdoor wireless communication systems (base stations, Wi-Fi access points)
- Industrial IoT & automation equipment (dust/moisture-exposed environments)
- RF test & measurement setups (signal analyzers, generators)
- Marine/aviation electronics (weather-resistant signal connections)
- Telecom infrastructure (indoor/outdoor signal distribution)
MMCX R/a Male to N Jack Rf Cable Pigtail China
Category |
Details |
Electrical |
|
Characteristic Impedance |
50Ω |
Frequency Range |
DC-11GHz |
VSWR |
≤1.15@DC-3000MHz |
Insertion Loss |
≤0.24dB (6GHz) |
Working Voltage |
1000V RMS (50Hz, sea level) |
Dielectric Withstanding Voltage |
≥2500V RMS (50Hz, sea level) |
Insulation Resistance |
≥5000MΩ |
Contact Resistance |
Center: ≤1mΩ; Outer: ≤0.25mΩ |
Mechanical |
|
Durability |
≥500 mating cycles |
Material & Plating |
|
Body |
Brass (Tri-Metal/CuZnSn or Ni plating) |
Insulator |
PTFE |
Inner Conductor |
Phosphor Bronze (Au plating) |
Coupling Nut |
Brass (Ni plating) |
Gasket |
Silicone Rubber |
Cable Clamp |
Brass (Ag plating) |
Environmental |
|
Operating Temperature |
-45°C~+85°C |
Weatherproof Rate |
IP67 |
RoHS Compliance |
Compliant (by exemption) |
FAQ
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order
Q: Can you guarantee the quality of product?
A: Sure, high quality give us confidence to do business with your company. Long-term cooperation is what we need most instead of short-term cooperation.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you.
Q:How do your company deal with the problem on quality ?
A: We have 20 years experience in this business. High quality and perfect service earn us great reputation. We will have a
detailed analysis of the problem. If our product is unqualified, we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
