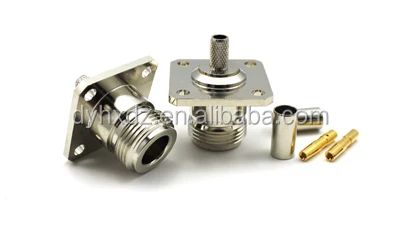

N female 4 hole jack flange panel mount solder type RF connector
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
|
Key Performance |
||||
|
Temperature range |
-65~+165 |
Insulation resistance |
≥5000MΩ |
|
|
Characteristic impedancd |
50Ω |
Dielectric Withstanding voltage |
1500V |
|
|
Frequency range |
0~11GHz |
Contact resistance |
Center conductor |
≤1mΩ |
|
Outer conductor |
≤0.2mΩ |
|||
|
VSWR |
≤1.30 |
Durability |
500 Cycles |
|
|
Material And Plating |
||||
|
Body |
Brass , gold/nickel plated |
|||
|
Male center contacts |
Brass , gold plated |
|||
|
Female center contacts |
Beryllium copper or phosphor bronze , gold plated |
|||
|
Insulators |
PTFE |
|||
|
Gaskets |
Silicone rubber |
|||
|
Crimp ferrules |
Copper alloy , nickel plated |
|||
